GRAPHICS
MECHANICAL SYSTEMS
ELECTRICAL SYSTEMS
AUTOMATION
100
WHAT IS THE NAME OF THE THIS SHAPE
CUBE
100
WHAT IS THIS?
DIAL CALIPER
100
WHAT IS THIS
AMMETER
OHMS
AMPS
VOLTS
100
OPEN CONTACT
200
THE TERM LOCKED DOWN MEANS WHAT?
YOU ARE NOT ABLE TO MOVE ANYTHING FROM THE ASSEMBALY.
200
SHIMS ARE UESD FOR WHAT PURPOSE?
LEVEL ALL THE PARTS OF THE MACHINNE.
200
OL IS WHAT
OVER LOAD
200
CLOSED CONTACT.
300
THE HORSESHOE WITH AROWS MEANS WHAT?
YOU ARE ABLE TO ROTATE THE SKETCH.
300
WHAT IS A STANDARD KEY LANGTH WHEN BUYING ONE AT A STORE?
1 FOOT OR 12 INCHES
300
IS A FUSE REUSABLE
NO
300
WILL THE LIGHT TURN ON IF THE CONTACT IS OPEN?
NO
400
MATE IS A TERM THAT MEANS WHAT?
YOU CAN ATATCH TO SKECHES TOGETHER AS THEY ARE LOCKED DOWN. (AN ASSEMBALY)
400

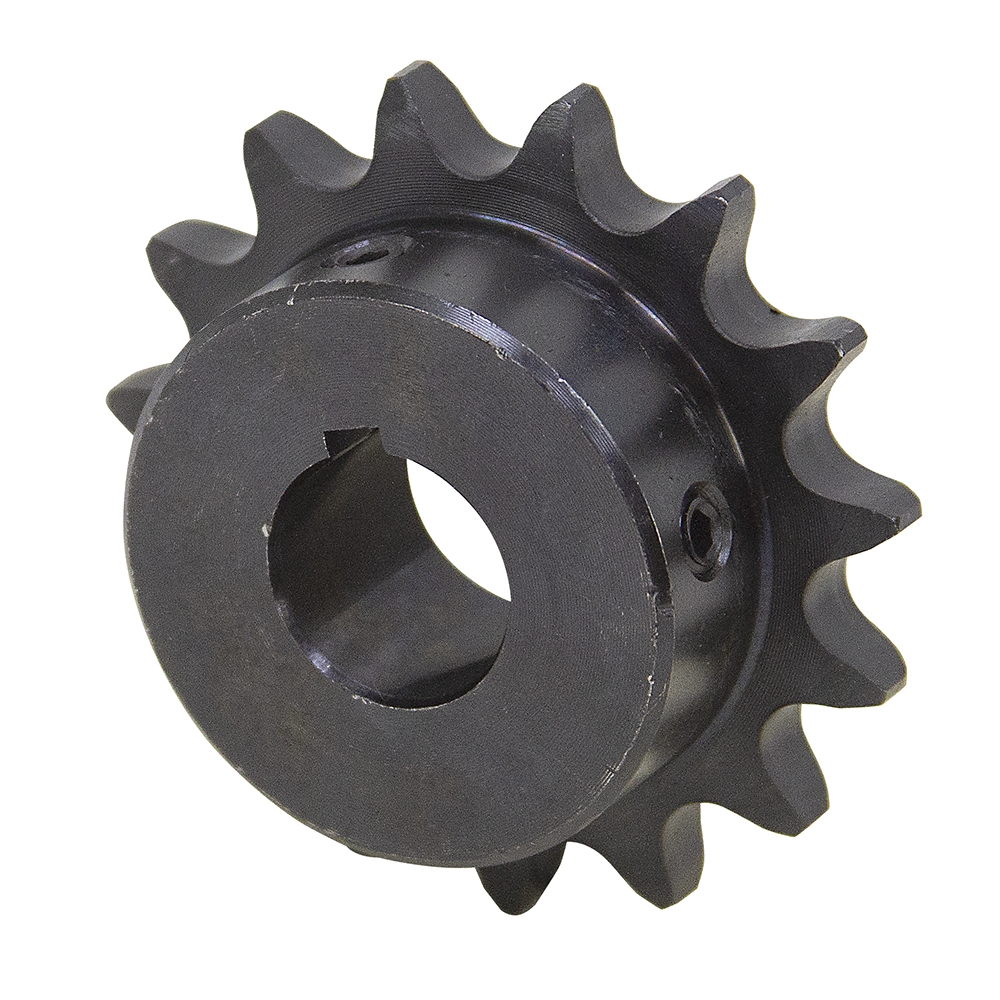

WHAT IS THIS?
SPROCKET
400
CONTINUITY IS WHAT?
THE FLOW OF ELECTRICITY THROGH THE WIRE.
400
WILL THE LIGHT COME ON IF TWO BRANCHES HAVE ONE CONTACT ON EACH BUT ONE IS OPEN AND THE OTHER IS CLOSED?
YES
500
WHAT IS THE LOGO FOR SOLIDWORKS?
RED CUBE WITH AN S AND A W.
500
WHAT IS THIS?
FEELER GAUGE
500
WHAT IS THE TERM DAISY CHAIN MEAN?
YOU LINK WIRES TOGETHER TO REACH THE SPOT ON THE ELECTRICAL BOAD.
JUST USE A LONG WIRE.
500
THE SOFTWARE LOGIX PRO HAS HOW MANY COLORS IN ITS LOGO
4
