What Makes a Triangle?
Work Those Quads
Similar, but Not the Same
Gettin' Triggy With It
Circles & Stuff
100
1) XY
2) WY
3) WX
100
Find the value of x.
180(5-2) = 540
(5x+2)+(3x+5)+(8x+8)+(4x+15)+(5x+10) = 540
25x+40 = 540
x=20
100
Find the length of CD
if quad ABCD ~ RSTU.
(y+2)/12 = 5/6
6(y+2)=(12)(5)
y+2=10
y=8
CD=y+2=8+2=10
100
adjacent hypotenuse
opposite
b = 14.4065 c = 21.5301
100
What is the measure of angle CAB?
79 degrees
200
List the angles from smallest to largest.
m∠S, m∠T, m∠R
200
This is a rhombus. Find LO.
MN cong LO
LM cong MN
2x-9=x+5
x=14
LO = 14+5 = 19
200
The 2 triangles are similar.
What is the length of CD?
(HINT: What theorem will help you
find AB?)
6^2+AB^2=10^2
AB^2=100-36
AB=8
AC/CD = AB/ED
6/CD = 8/12
8(CD) = 72
CD=9
200
What is
theta?
ፀ = 22.6199°
200
Solve for x. (Ignore the other question.)
x = 19
300
What is a segment that divides an angle in half to make 2 congruent angles?
Angle bisector
300
Solve for
angleSPQ
angleSPQ cong angleSRQ
(6z-5)+(2z+25)=180
8z=160
z=20
angleSPQ=2(20)+25=65
300
What kind of triangle does the statement determine?
a2 + b2 < c2
What theorem says this it true?
__________________________________
__________________________________
Obtuse triangle, according to the Pythagorean Inequality Theorem
300
Solve the triangle.
45 degrees
leg = 7
hypotenuse = 7sqrt2
300
What is the measure of x?
44 degrees
400
Is it possible to make a triangle with the following sides? Show the statement that proves yes or no.
29 ft, 62 ft, 17ft.
No.
17 + 29 cancel(>) 62
400
Name 3 kinds of parallelograms
ie. rectangle, rhombus, square
400
Write the coordinates of S'V'U'T of a dilation with a scale factor of 4.
S(-2,-2), V(-1,1), U(1,1), T(0,-2)
S'(-8,-8), V'(-4,4), U(4,4), T(0,-8)
400
What is the area of this triangle? (Round to 4 sig figs.)
A = (1/2)bc sin A
= (1/2)(5)(7) sin 49
A=13.2074
400
Solve for x.
x = 5
500
Find the possible values of x.
angleMOP > angleMON
therefore 4x+12 > 5x+3
x < 9
500
Find x.
(1/2)(AC+TI)=VE
(1/2)[(x+6)+(3x-2)]=4x+1
(1/2)(4x+4)=4x+1
2x+2=4x+1
1=2x
x=1/2
500
x/5.9 = 3.1/4.8
4.8x=18.29
x=3.8
500
Solve for the variable. Round to 4 decimal places.
SAS - Law of Cosines
c^2 = a^2 + b^2 - 2ab*cos C
c = 6.6663
500

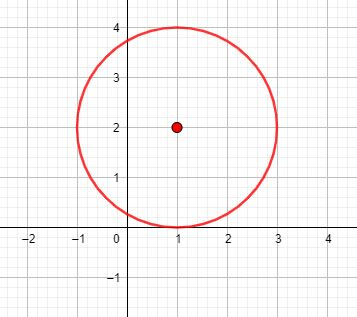

Write the equation of this circle. ( hint: r2=(x-h)2+(y-k)2. Leave (x,y) as unknown.
r = 2
h,k = 1,2
4 = (x-1)2+(y-2)2
