A/A49E-27 GUN SYSTEM (M197)
CHAPTER 3
CHAPTER 3
ROCKETS
MK 46 TORPEDO
100
The HARPOON AGM-84D/N Tactical Missile contains what kind of fuel?
JP-10 jet fuel.
100
Occupational safety, health and environmental requirements as they apply to explosives safety
are mandatory as described in what instruction?
OPNAVINST 5100.19 (series).
100
What suspension lugs are used with the M197 20MM gun system?
MS3314
100

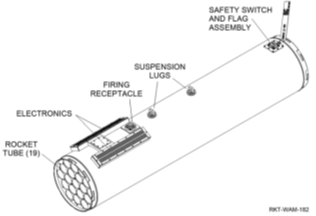

Where on a DRL pod is the Launchers Electronics Assembly (LEA) located?
On top of the pod forward of the lugs.
100
What is to be done when torpedoes are to be carried for logistic purposes?
Nose protective cover, arming and release wires and static line must be securely taped to torpedo and not removed for flight
200
What is the acceptable drop criteria for a HARPOON missile while packaged?
Dropped 1.5 feet or less
200
Policy and requirements for the physical security of arms, ammunition, and explosives are contained in what instruction?
OPNAVINST 5530.13 (series).
200
What BRU is used with the M197 20mm gun system?
BRU-65
200
On a LAU-61G/A how many lock wire screws are used when installing the Launcher Electronics Assembly (LEA) lid?
16
200
What BRU is used with the MK 46 Torpedo on a MH-60R helicopter?
BRU-14
300
What do you do if the pressure probe is erected on the HARPOON missile?
If pressure probe is erected, missile is considered armed. Reject missile and notify EOD or proper
authority immediately.
300
All empty ammunition containers must be properly sentenced, including certified as Material
Documented as Safe (MDAS), in accordance with what publication prior to transfer?
NAVSUP P-805.
300
How much does a fully loaded M197 can weigh?
693 lbs.
300
What Airborne Weapons Assembly Checklist do you refer to for the configuration of mixed warheads when loading a LAU-61G/A?
11-140-12-10
300
What arming wires are used with the MK 46 Torpedo?
MK 1 or MK 9
400
What is the nomenclature of the launch lug on the HARPOON?
Mk 3 Mod 0
400
Who must provide site approval in
order for ships to conduct loading and offloading ammunition and explosives?
The Department of Defense Explosives Safety Board (DDESB)
400
The M197 ammo can has how many possible height locations?
3
400

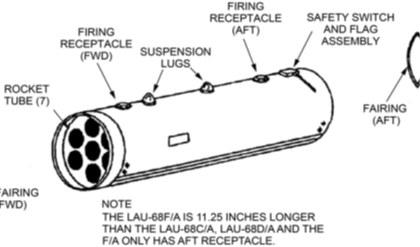

What is the difference between the LAU-68F/A and the LAU-68D/A?
The major difference is an increased length to accommodate the APKWS II, and it does not have a forward electrical receptacle
400
When inspecting a Warshot MK 46 Torpedo, what must the indicator window show?
All green and the letter “S”
500
What is the preferred equipment used for unpacking the HARPOON missile?
Overhead hoist
500
For CVN ships, what is the preferred method for
on loading and offloading the ship’s ammunition allowances and training ammunition?
Underway replenishment (UNREP) using the Vertical Replenishment (VERTREP) and CONREP methods.
500
Where must the inboard ammunition can handles must be stowed for flight?
On the outboard storage locations.
500
What is the shelf life of Wing Slot Seals when uninstalled?
2 years
500
How many fahnestock clips are required when loading a MK 46 Torpedo on a MH-60R helicopter?
2
600
What publication do you refer to for cleaning and corrosion removal?
NAVAIR 01-1A-75.
600
Shipping and storage configurations for Navy approved ammunition items are listed in what publication?
NAVSEA SW020-AC-SAF-010.
600
What do you use to push rounds out to the M89E1 feeder?
Booster Motor load switch
600
What Electrical Connector is located at the top forward end of the launcher between the electrical enclosures on the LAU-61G/A?
MIL-STD-1760 Aircraft/Store Electrical Connector
600
When must safety bolts be installed in suspension band lugs when unloading the MK 46 Torpedo?
Immediately after lug and bomb rack hook disengagement or as clearance permits.
700
Procedures for unitizing the HARPOON training weapon in container is contained in what publication?
SW020-AC-SAF-010.
700
Safety interlocks for ammunition and equipment or systems shall not be altered, bypassed, or rendered inoperative unless specifically approved by who?
Naval Sea Systems Command (NAVSEASYSCOM).
700
When using the Booster Motor Load Switch to push rounds out to the M89E1 feeder when do you stop?
Until first dummy round reaches the feeder entrance then stop.
700
What suspension lugs do LAU-61, LAU-68, and LAU-10 series launchers use?
MS3314
700
Where are the wedges and pawl levers located on torpedoes that are loaded on the left pylons on the MH-60R helicopter?
Left side of the torpedo
800
What kind of paper do you use to determine if fluid leaking from the HARPOON missile is battery electrolyte?
Litmus (pH) paper with an alkalinity rating not lower than 9.
800
If possible, emergency jettison shall be accomplished at a distance greater than ___ nautical miles (nm) from land in an area with water depth exceeding ____ fathoms.
12 nautical miles, 500 fathoms (3,000 feet).
800
If an aircraft returns with unexpended rounds, what shall be placed in the cockpit?
Weapon Loaded Sign
800
If strap wrench adapter (SWA) slippage prevents proper torque of WGU-59/B what other technique can be used?
100 grit emery cloth may be used to rough up the torque area of WGU-59/B
800
What is used to secure suspension band pawl levers to the suspension band wedges?
A retaining lanyard
900
The upper right wing root position requires what wing on the HARPOON?
BSU-43/B Wings
900
At night, what shall be used in place of the Bravo flag?
A red light.
900
What is the nomenclature of the Link/Delinker tool?
M25
900
Suspension lugs MUST have a minimum of how many threads inserted into the lug-well?
3 threads
900
What do you do if the battery arming lanyard is removed?
Do not install. Install tape over seawater battery port and reject torpedo.
1000
If the humidity indicator is __% pink, the shipping container shall be opened and its contents shall be carefully examined for evidence of deterioration due to moisture.
40%
1000
ESQD standards, requirements and methods of calculation are issued by who?
By the Secretary of Defense (SECDEF).
1000
Inspect the M89E1 Feeder stripper bar alignment IAW what publication?
NAVAIR 11-95M89-1
1000
What is the Aircraft Bomb and Rocket Fuze Manual, Descriptions and Characteristics publication?
NAVAIR 11-1F-2
1000
Why must you ensure personnel remain clear of MK 46 ballast weight assembly while removing the safety strap?
To prevent injury in the event of inadvertent ballast weight release.
