You've Got Leveredge
It's so simple
Simply Wonderful
Compound Your Effort
Compounded
100
The point that the lever goes up and down over
What is the fulcrum?
100
Any device that allows work to be done using less force
What is a machine?
100
A rigid bar that's inserted through a hole in the wheel
What is an axle?
100
A circular band made of rubber
What is a belt?
100
A series of intermeshing gears
What is a transmission or gear train?
200
A bar that goes up and down over a certain point
What is a lever?
200
A wheel attached to a smaller axle so that these two parts rotate together to transfer the force from one to the other
What is a wheel and axle?
200
A simple machine that lets you pull down a rope, chain, or wire to lift something
What is a pulley?
200
A combination of different simple machines working together
What is a compound machine?
200
The first gear in the transmission
What is the driver or input gear?
300
A lever that has the load between the fulcrum and the effort
What is a 2nd class lever?
300
A flat surface whose ends are different heights
What is an inclined plane?
300
An inclined plane wrapped around a cylinder or cone
What is a screw?
300
A belt that turns more than one wheel
What is a drive belt?
300
Gear C is the output / follower gear, so gear A is the ____
What is the driver or input gear?
400
A lever that has the effort between the fulcrum and the load
What is a 3rd class lever?
400
A pulley that has only one wheel
What is a single pulley system?
400
A pulley system with two wheels that are connected. One wheel is attached to the load. The other is fixed to a supporting object.
What is a double-pulley system?
400
A machine consisting of one or more pulleys and a wide flat belt
What is a conveyor belt?
400
The last gear in the transmission
What is the follower or output gear?
500
A lever that has the fulcrum in the middle
What is a 1st class lever?
500
A simple machine used to push things apart
What is a wedge?
500

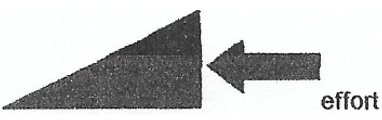

The simple machine in picture is being used as a ____________
What is a wedge?
500
Gear A is the input / drive gear, so gear C is the ____
What is the follower or output gear?
500
If there is a 3rd gear in a transmission, it is called the ________________
What is the idler gear?
