Picture This
Puzzling Polygons
Try-angles
The 3rd Dimension
Surface area
Wild Card
100
What is the area of a triangle with a base of 15 cm and height is 8 cm?
What is 60 sq. cm?
100
True or false: We cannot find the area of this polygon because we do not know the length of the diagonal line.
False.
100
Find the area.
14 m²
100
A ________ is a 2D pattern that can be cut, folded, and joined together to create a specific 3D shape
Net
100
Explain how to find the surface area of a rectangular prism.
Find the area of all 6 faces and add them together.
100
Find the area.
150ft2
200
A parallelogram has an area of 48 feet² and a height of 6 feet. What is the length of the base of the parallelogram?
base = 8 feet
200
What is the area of this figure?
A= 52 cm2
200
Find the area of this triangle.
24 m2
200
What is the name of this 3D shape?
Rectangular Pyramid.

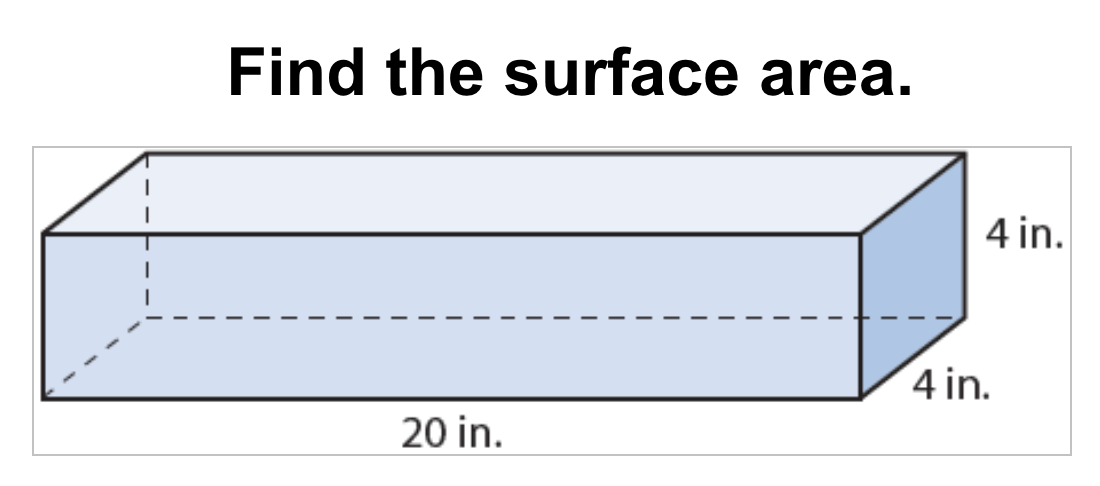

200
80 + 80 + 80 + 80 + 16 + 16 = 352
Surface area = 352 in²
200
An architect is trying different dimensions for the room shown below. Find the area when x is 6 m.
48 m²
300
A square has a side length of 1.5 in. What is the area of the square?
Area = 2.25 in²
300
Find the surface area of the polygon.
136 cm2
300
Find the area of the triangle.
18 in²
300

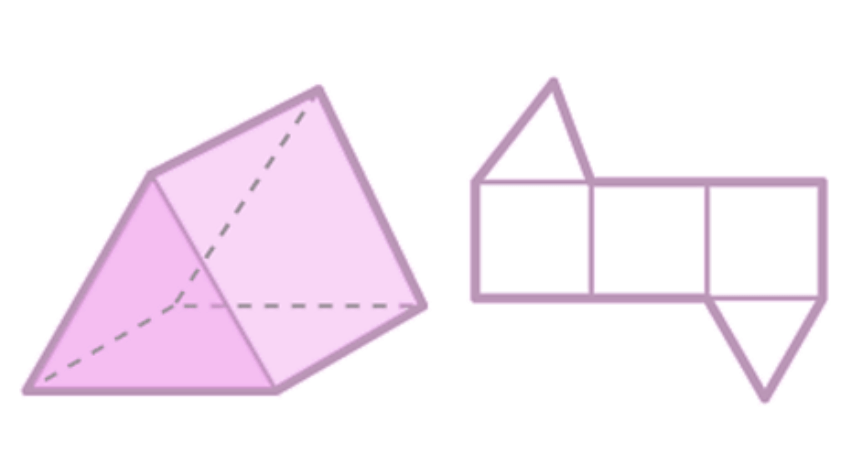

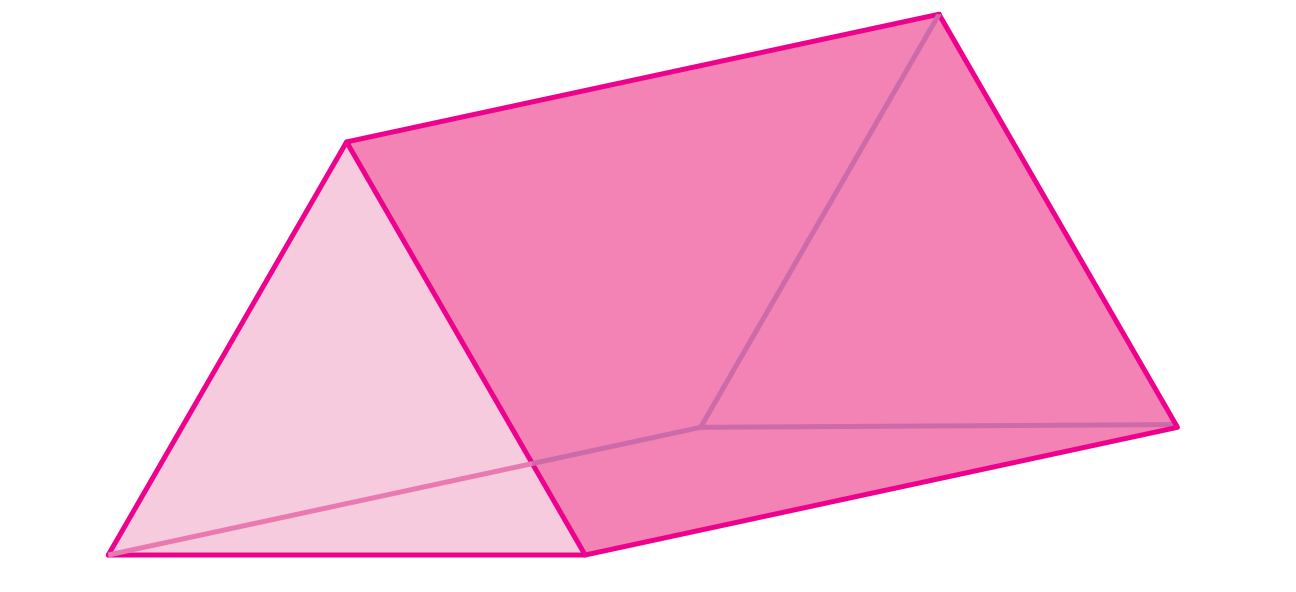

How many faces, edges and vertices does this shape have?
Triangular prism.
Faces: 5
Edges: 9
Vertices: 6
300
Find the surface area.
36 units²
300
2+4 times3^2 -7 div1
Evaluate using the order of operations.
31
400
The base of a triangle is 15 meters and the height is 10 meters. What is the area of the triangle?
area = 75 meters²
400

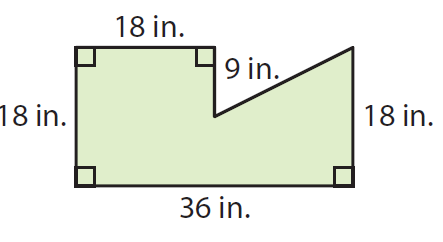

What is the area of the following polygon?
567 in2

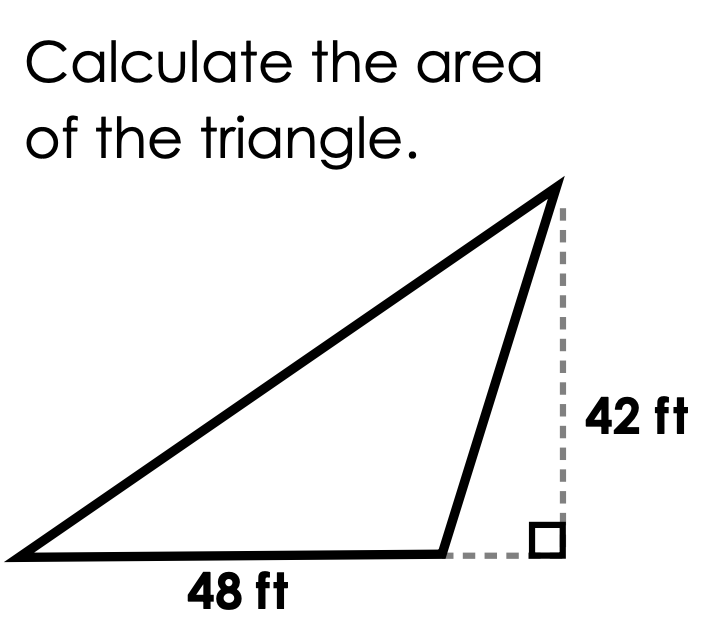

400
42 times48 = 2016
2016 div 2 = 1008
1,008 feet²
400
How many faces, edges and vertices does this polyhedron have?
Rectangular prism
6 faces, 12 edges and 8 vertices.
400

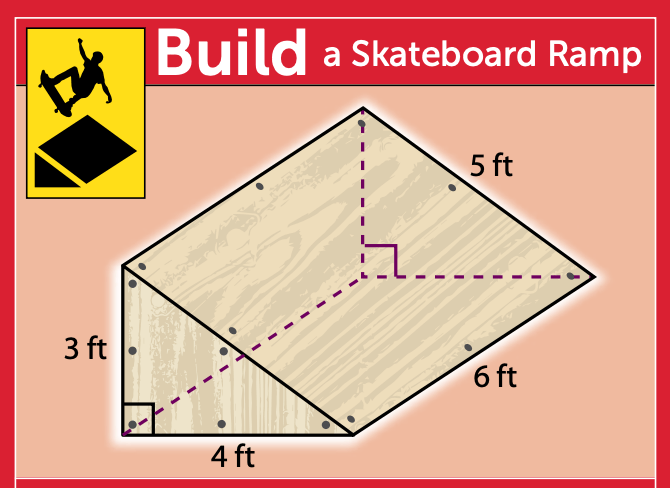

Oliver is building a skate board ramp out of plywood with these dimensions. How many square feet of plywood does Oliver need to build the ramp?
6 + 6 + 24 + 18 + 30 = 84
84 feet²
400

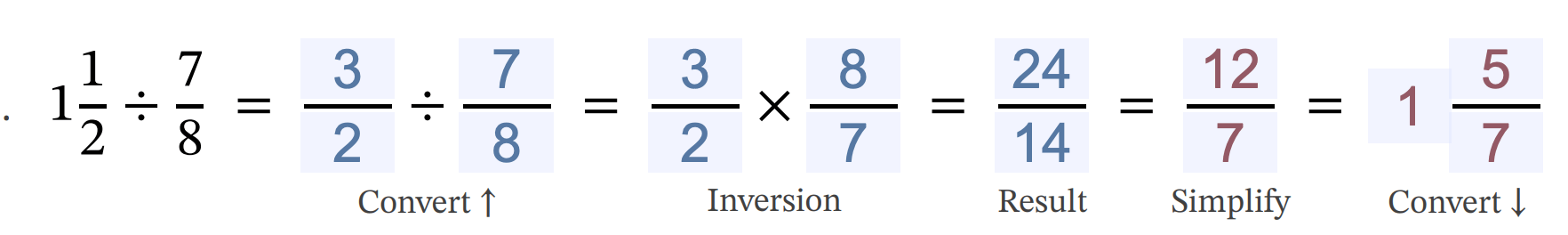

Evaluate and simplify your answer.
1 1/2 div 7/8=
500
The area of a parallelogram is 220 in². The base is 40 in. What is the height of the parallelogram?
h = 5.5 in

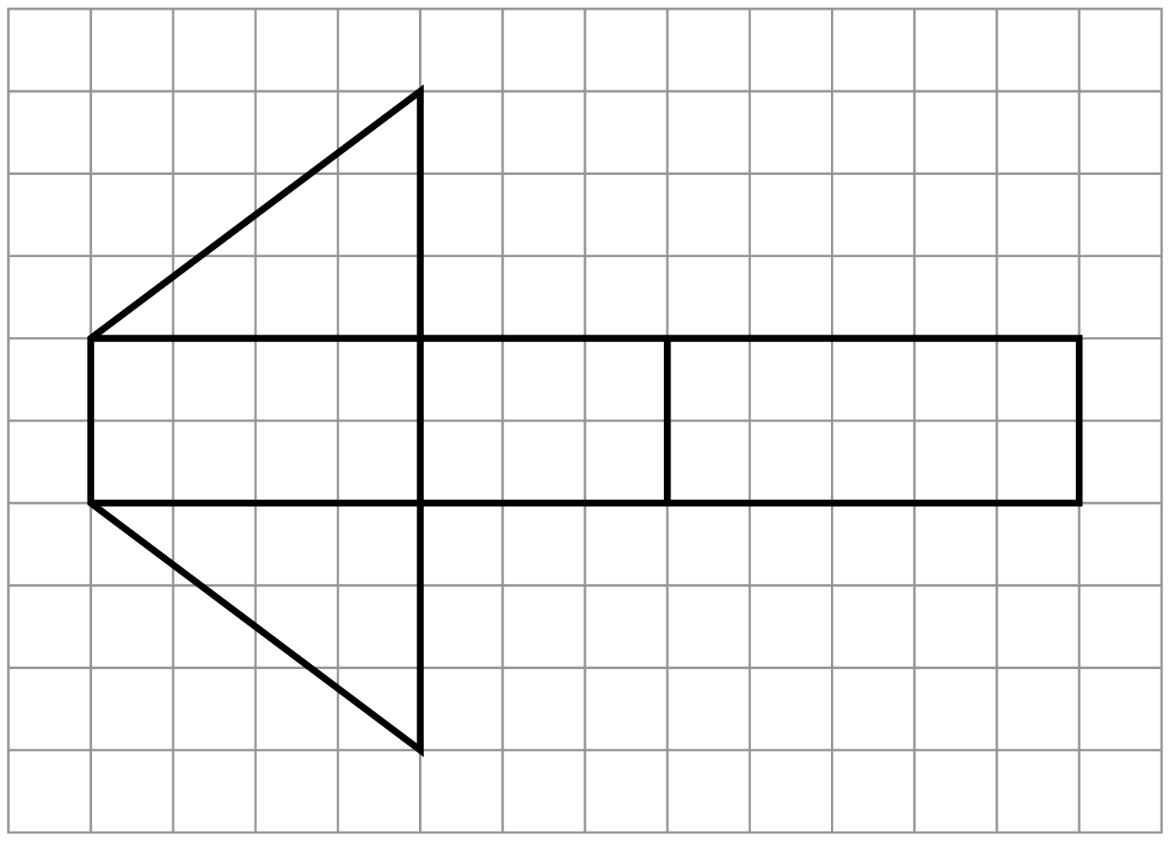

500
Find the area of the shape. Remember to use units as the label.
12 units²
500
Which of the following has the same area as this triangle. Choose ALL that apply
A. Triangle with a base of 3cm and height of 14cm.
B. A rectangle with a length of 6cm and width of 7cm.
C. A parallelogram with a base of 3cm and a height of 7cm.
21cm2 ; A and C
500

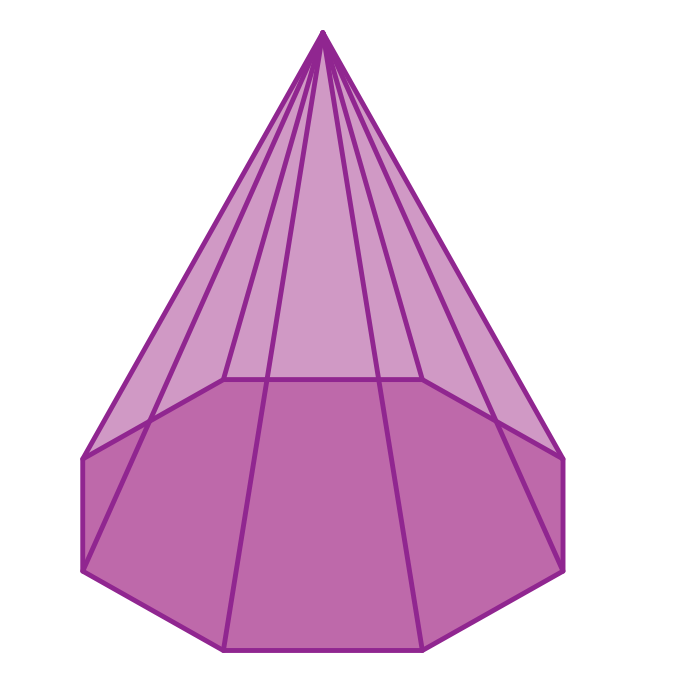

What is the name of this shape?
Octagonal pyramid
500

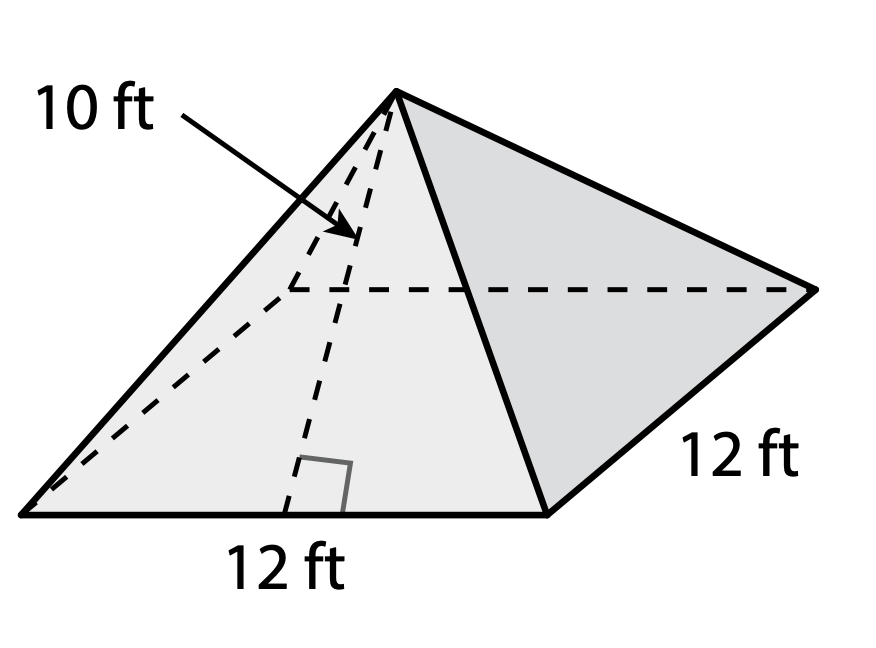

Find the surface area of the square pyramid.
144 + 60 + 60 + 60 + 60 = 384
384 ft^2
500

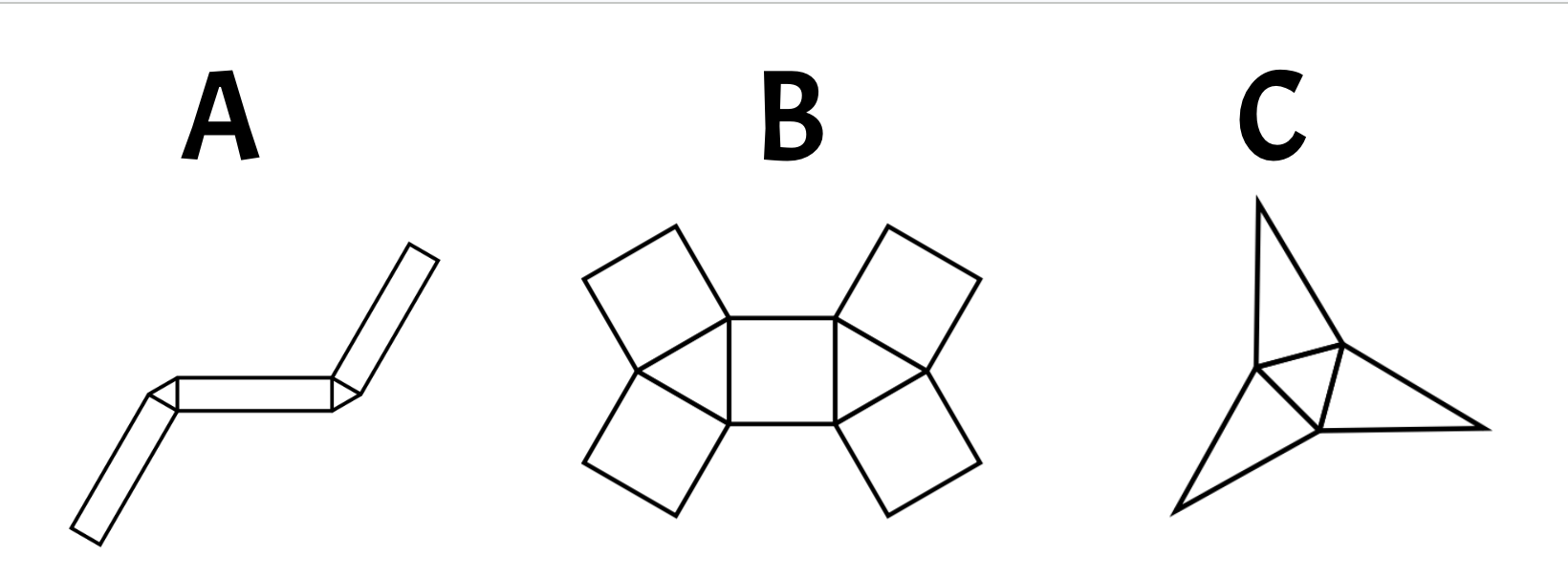

Which one is a net for a triangular prism?
A. Net A is the only net that will fold up correctly into a rectangular prism. Net B the squares will overlap and it has too many faces for a triangular prism. Net C is a triangular pyramid.
