Adorable Orbitals
e- Configuration Generation
Element Developments
Dots Enough!
Houston, We Have a Quantum
Do you really want to Hertz me?
Chemystery
100
The s block has how many lines and arrows when filled?
1 line, 2 arrows
100
What is the electron configuration of Lithium?
1s2 2s1
100
What element has the following electron configuration:
1s2 2s2 2p4
What is Oxygen
100
This is the name for the outermost electrons.
What is valence electrons
100
The quantum number that represents the energy level of an electron is the _____
Principal Quantum Number (n)
100
Frequency is measured in
Hz=1/s=s-1
100
What element is found in period 3, group 2?
Magnesium
200
The p block has how many lines and arrows when filled?
3 lines, 6 arrows
200
What is the electron configuration of Carbon?
1s2 2s2 2p2
200
What element has the following electron configuration:
[Ar] 4s2 3d9
What is Copper
200
What is the correct electron dot diagram for oxygen?
200
The azimuthal, aka the orbital quantum number, ℓ , represents what?
The shape of the orbital
200
What measurement is shown in the picture below?
wavelength
200
What element is found in period 5, group 14?
Tin
300
The d block has how many lines and arrows when filled?
5 lines, 10 arrows
300
What is the noble gas electron configuration of Arsenic?
[Ar] 4s2 3d10 4p3
300
What element has the following electron configuration:
[Xe] 6s2 5d1 4f14 5d9 6p2
What is Lead
300
What is the correct electron dot diagram for Xenon?
300
If the azimuthal quantum number is 1, what type of orbital is it?
It's a p orbital.
s=0
p=1
d=2
f=3
300
What is the wavelength of an electromagnetic wave with a frequency of 485 Hz?
618556.701 m = 6.18556701 X 105 m
300
What is the name of the last column on the periodic table?
Noble Gases
400
The f block has how many lines and arrows when filled?
7 lines, 14 arrows
400
What is the noble gas electron configuration of Titanium?
[Ar] 4s2 3d2
400
What element ends on the following electron configuration:
4s1
What is Potassium
400
Atom X has electron configuration 2-8-8-1. How many dots would you place around atom's X Lewis Dot Diagram?
What is 1
400

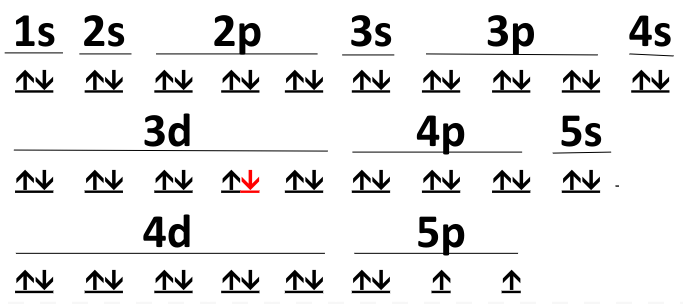

What are the quantum numbers describing the electron highlighted in red below?
(3,2,1,-1/2)
400
What is the energy of an electromagnetic wave with a frequency of 485 Hz?
3.21361×10−31 J
400
What noble gas will be in the configuration for neptunium?
Radon
500
Explain what's wrong with each of the orbital diagrams below:
A
B
C
In A, you are not allowed to have two arrows pointing in the same direction on the same line.
In B, you may not pair electrons up until each line has an electron
In C, you may not put electrons in higher energy orbitals until the lower energy one is filled.
500
What is the noble gas electron configuration of Osmium (Os)?
[Xe] 6s24f145d6
500
What element ends on the following electron configuration:
5f7
What is Americium
500
What is the maximum number of dots that you can place around ANY atom?
What is 8
500
Which of the following sets of quantum numbers is impossible, and why?
A) 2, 1, -1, -1/2
B) 1, 0, 0, 1/2
C) 3, 3, 3, 1/2
D) 5, 4, - 3, 1/2
E) 5, 4, -3, -1/2
C)
The second quantum number (ℓ) has allowed values from 0 to n-1. Since n=3, the only allowed values for ℓ are from 0 to 3-1, which are 0, 1, and 2.
500
What is the wavelength of an electromagnetic wave with an energy of 2.53 X 10-19 J?
7.856916996 X 10-7 m = 785.6916996 nm
500
How many valence electrons will arsenic have?
5
