Kinetic Energy
Potential Energy
Work
Conservation of Energy
Po-power-ri
100
This is the equation for kinetic energy
What is
1/2*m*v^2
100
This is the equation for gravitational potential energy
What is Ug = mgh?
100
This is how you spell the units of work
What is joules?
100
These are the three types of energy that contribute to the mechanical energy of a system
What are kinetic energy, gravitational potential energy, and elastic potential energy?
100
This is the unit of power
What is watts?
200
A 1000 kg car moving at a speed of 30 m/s has this much kinetic energy
What is 450,000 J?
200
This is what Deltax represents in the elastic potential energy equation
What is the displacement of the spring from equilibrium?
200
A 3 kg box is pushed 9 meters by an 81 N force across a frictionless surface, so this amount of work was done.
What is 729 J?
200
A ball is dropped from a height of 20 m, so it will be moving at this speed when it hits the ground.
What is 20 m/s?
200
The kilowatt-hour used on electricity bills is a unit used to measure this
What is energy?
300
According to the graph shown, the 117 kg object's kinetic energy changed by this much from 1 to 3 seconds.
What is - 46,800 J?
300
Doubling the height of an object will cause the gravitational potential energy to increase by this factor
What is 2?
300
A 16 kg cart had 225 J of work done on it by the tension force, but the force of friction did -153 J, so the cart's final speed was this.
What is 3.0 m/s?
300
This is the conservation of energy equation for the cart shown in the diagram; the cart comes to rest at point B.
What is
K = U_g
"Honors:" 1/2mv^2 = mgh
300
A 60 watt lightbulb uses this many joules of energy each minute
What is 3600 joules?
400
In the graph shown, the object's kinetic energy changes by this much between 0 and 20 seconds.
What is 0 J?
400
The velocity vs time graph shown is created from a roller coaster moving along the track, showing that the roller coasters gravitational potential energy was at a maximum at this time
What is 70 seconds?
400

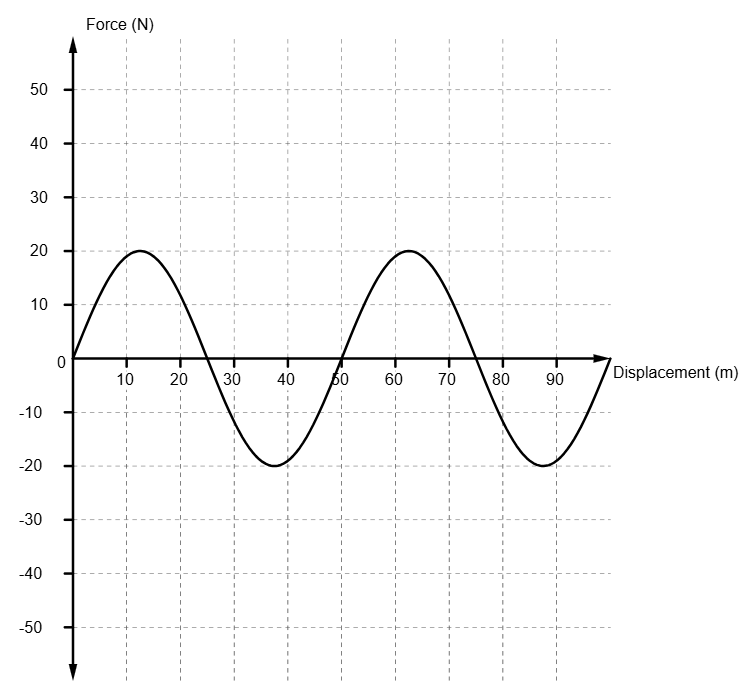

According to this force vs time graph, this is the amount of work done between 25 and 75 seconds.
What is 0 joules?
400

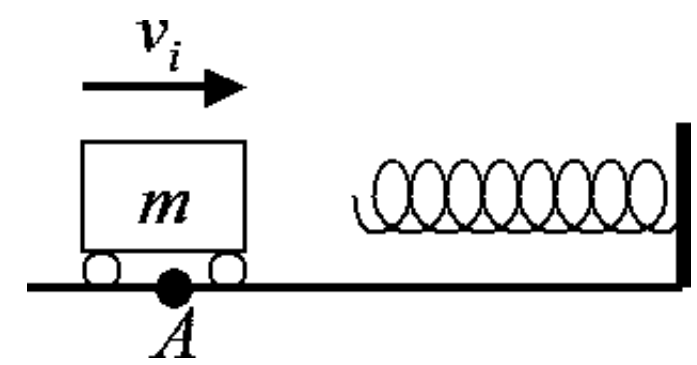

This is the conservation of energy equation for a cart coming to rest after hitting a spring.
What is: "College Prep:" K = U_S
"Honors:" 1/2k(Deltax)^2 = 1/2mv^2
400
A 1000 kg car's engine accelerates the car and the velocity vs time graph shown is created, which shows a power output of this many watts between 3 and 7 seconds.
What is 1500 W?
500
According to the graph shown, the object's kinetic energy increased the most during this second.
What is from 4 - 5 seconds?
500
A person stretches a very large spring by a distance of 7 cm, then they stretch the same spring a distance of 49 cm. If they stored 49 J in the spring when it was stretched 7 cm, they must have stored this must energy in the spring when it was stretched to 49 cm.
What is 2401 J?
500
A frictionless cart experiences the net force shown in this graph and ends up with a speed of 6 m/s, so this must be the mass of the cart.
What is 5 kg?
500
A frictionless 324 g smart cart rolls down a ramp and records the velocity vs time graph shown, which can only be created by a ramp of this height.
What is 0.15 m?
500
This is the only state that touches the Pacific Ocean and does not have an interstate highway to its capital
What is Alaska?
