Line & Angle relaitonships
Angle Measures
Angle Relationships
Vocabulary
More Vocab.
100
True or False. Vertical angles are congruent.
True. Vertical (Opposite) angles are congruent.
100
If ∠2 and ∠3 are complementary and ∠2 is 89 degrees, what is ∠3?
1 degree
100
What vocabulary word describes two angles that are side-by-side?
Adjacent
100
These are two angles that the sum of their measures are 90 degrees.
What are complimentary angles?
100
These are lines in a plane that never intersect.
What are parallel lines?
200
Name a pair of corresponding angles?
∠1 corresponds with ∠5
∠2 corresponds with ∠6
∠3 corresponds with ∠7
∠4 corresponds with ∠8
200
If ∠1 is 135 degrees. What is ∠2?
45 degrees
200

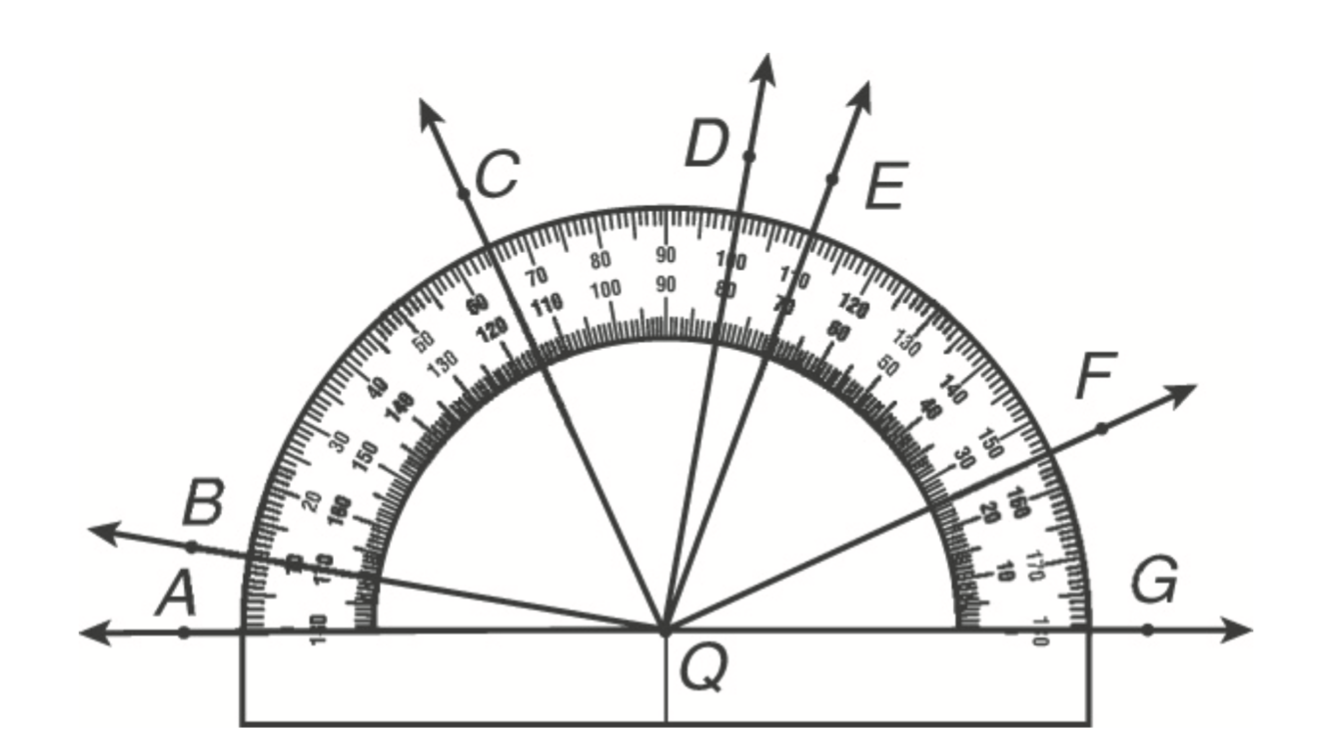

Name any angle for this protractor
∠_Q_ (Any letter Q any letter)
200
These are opposite angles formed by intersecting lines.
What are vertical angles?
200
These are outside angles that lie on opposite sides of the transversal.
What are alternate exterior angles?
300
Name a pair of alternate exterior angles.
∠1 & ∠8
∠2 & ∠7
300
If ∠1 is 150 degrees, what is ∠8?
150 degrees
300
Name a pair of adjacent angles
Any angles that are side-by-side (share a common ray and vertex)
300
These are angles that the sum of their measures are 180 degrees.
What are supplementary angles?
300
These are angles that are in the same position on the two lines in relation to the transversal.
What are corresponding angles?
400
Name a pair of vertical angles.
∠1 is vertical with ∠4
∠2 is vertical with ∠3
∠5 is vertical with ∠8
∠6 is vertical with ∠7
400
If ∠2 and ∠3 are supplementary and ∠2 is 89 degrees, what is ∠3?
91 degrees
400
Name two angles that are complementary.
∠BQC & ∠CQD
∠CQE & ∠EQF
∠CQD & ∠DQF
∠AQC & ∠FQG
400
These are lines that intersect at right angles.
What are perpendicular lines?
400
These are interior angles that lie on opposite sides of the transversal.
What are alternate interior angles?
500
Name a pair of alternate interior angles.
∠3 & ∠6
∠4 & ∠5
500
If ∠4 is 113 degrees, what is ∠6?
67 degrees
500
Name two angles that are supplementary.
∠AQ_ & ∠_QG
500
These are angles that lie outside two parallel lines being transversed.
What are exterior angles?
500
This is a line that intersects two or more lines.
What is a transversal?
