Picture This!
The Solution To All Your Problems
Apply Your Brains
Take me to FUNCy town
It's What's On The Inside That Counts
Not Lines
Get Triggy With It
100

A point that is symmetric with respect to the origin to the point

(4, -7)

(-4,7)

100

Solve the equation

log(x-9)+logx=1

10

100

The line of best fit for the data set

x: 1  |  3   |  5 |  6  |  9
y: 7  |  10 | 14 | 13| 18

rounding coefficients to 2 dec places.

y=1.34x+5.96

100

A sketch of an Even function

100

The domain of the function below, in interval notation

[-1,4)

100

The type of conic section given by the equation

2x^2 +5x+2y^2 -9x-5=0

A Circle

100

If A is an angle in standard position with the point (-1,7) on its terminal side.

This is  SinA and cosA

 SinA=(7sqrt2)/10, cosA=-sqrt2/10

200

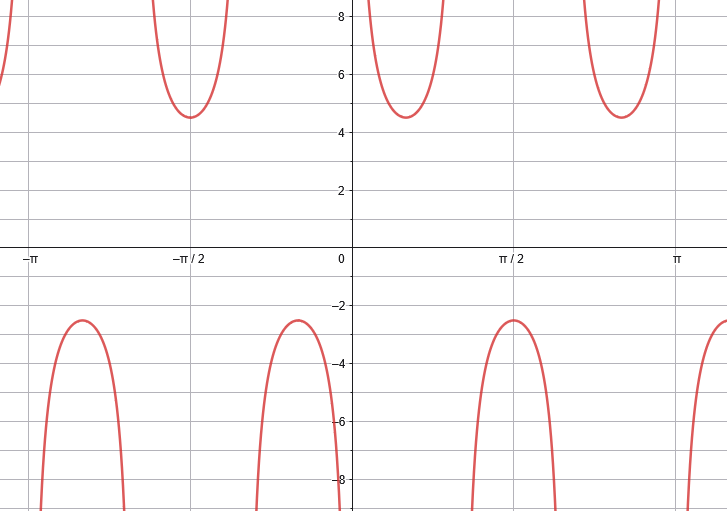

This is the type of trig function used for the graph below, assuming there are no phase shifts.

Cosecant

200

The exact value solution to the equation

7^(2x)-4=9

ln(13)/(2ln7)  = 0.6591

200

The angle of elevation of the Sun is  36.6^o  at the instant the shadow cast by a building is 710 feet long. Use this information to calculate the height of the building.

527.3 ft

200

A sketch of

y=2root3(x-1)

200

The domain of the function

r(x)=x/sqrt(x-4)

in interval notation

(4,oo)

200

A polynomial with real coefficients of degree 4 with zeros 0 (multiplicity 2) and 2i

x^2(x^2+4)-> x^4+4x^2

200

The exact value of

tan(cos^-1 (sqrt(5)/3))

(2sqrt(5))/5

300

The local minima and maxima of the function

Min (0,0) and (3,2)

Max (2,3)

300

The solutions on  0<=x<2pi for

sinxtanx-sinx=0

0, pi/4, pi, (5pi)/4

300

The amount in a savings account at the end of 20 years if the original deposit is $6000 and the interest rate is 6% compounded quarterly.

$19,743.98

300

For  f(x)=x^2-3x find

(f(x+h)-f(x))/h

2x-h-3

300

This is the domain of f circ g  if

f(x)=x^2-5,  g(x)=2sqrt(x)

[0,oo)

300

The vertical and horizontal asymptotes of the function

R(x)=(4x^2)/(2x^2+5x-3)

VA: x=1/2, x=-3

HA: y=2

300

If  sinA=1/2, 0<A<pi/2 and  sinB=3/5, pi/2<B<pi  then this is the exact value of cos(A+B)

(-4sqrt3-3)/10

400

The equation to the transformed graph

y=-2abs(x)+3

400

The general formula for all radian solutions of

tan(3x)=-1

x=(pi)/4+pi/3k , x=(5pi)/12+pi/3k

400

An open box with a square base is to be made from a square piece of cardboard 21 inches on a side by cutting out a square from each corner and turning up the sides.

This is the model that gives the volume of the box as a function of x. (You can leave it factored)


V=x(21-2x)^2

400

The inverse of the function

f(x)=2/(x+4)

f^-1(x)=(2+4x)/x

400

The domain in interval notation of the function

f(x)=log_3(3-x)

(-oo,3)

400

List the possible rational zeros of the polynomial

P(x)=5x^4-3x^2+2x-10

+-{1/5, 1, 2/5, 2, 5, 10}

or +-{1/5, 2/5, 1, 2, 5, 10}

400

Use the half angle formula to find the exact value of

sin((3pi)/8)

sqrt(2+sqrt(2))/2

500

This is the amplitude, period, and phase shift of the function  y=-5cos(4x-pi)+3

Amp:5
Period:  pi/2

Phase shift: pi/4

500

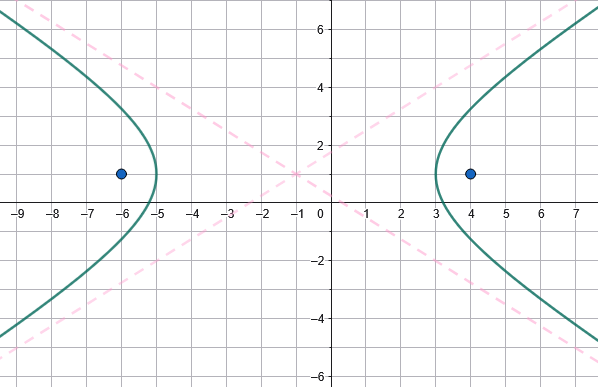

The equation of the graph

(x+1)^(2)/(16)-((y-1)^(2))/(9)=1

500

The population of a particular country was 28 million in 1983, the exponential growth function  A=28e^(kt) describes the population of this country t years after 1983. Use the fact that 11 years after 1983 the population increased by 8 million to find k to three decimal places.

0.023

500

The fully factored form of

P(x)=x^3-2x^2 -6x+12

P(x)=(x-2)(x-sqrt6)(x+sqrt6)

500

The domain of the function

t(x)=2sec(1/2 x)

RR, x!=pi+2pik

500

The focus of the parabola

2(x+1)=(y-4)^2

(-0.5,4)

500

The simplified form of

1-cos^2theta/(1+sintheta)

sintheta
