Part Modeling
Assembly Modeling
Surfacing
Macros/Efficiency
Koops Inc
Rhyme Time
100
The most basic of features, this takes a sketch and pulls it in a linear direction to create solid geometry.
What is extruded base/boss?
100
Referencing holes off from mating components and mating using center planes are examples of this good practice that tries to capture what the engineer is thinking.
What is design intent?
100
This macro is used to take faces from a part and create a new surface body.
What is rip surface?
100
The proper hotkey for Macro Master is this.
What is Ctrl ~ (or Ctrl `, since shift isn't involved)?
100
He was the founder of Koops Inc.
Who is Wes Koops?
100
If Pepsi was an employee owned company like Koops, they produce this beverage.
What is ESOP pop?
200
To convert multiple lines, arcs, and or splines into a single spline, use this tool.
What is fit spline?
200
Having references that drive from the assembly level down into parts is referred to as this type of modeling.
What is top down?
200

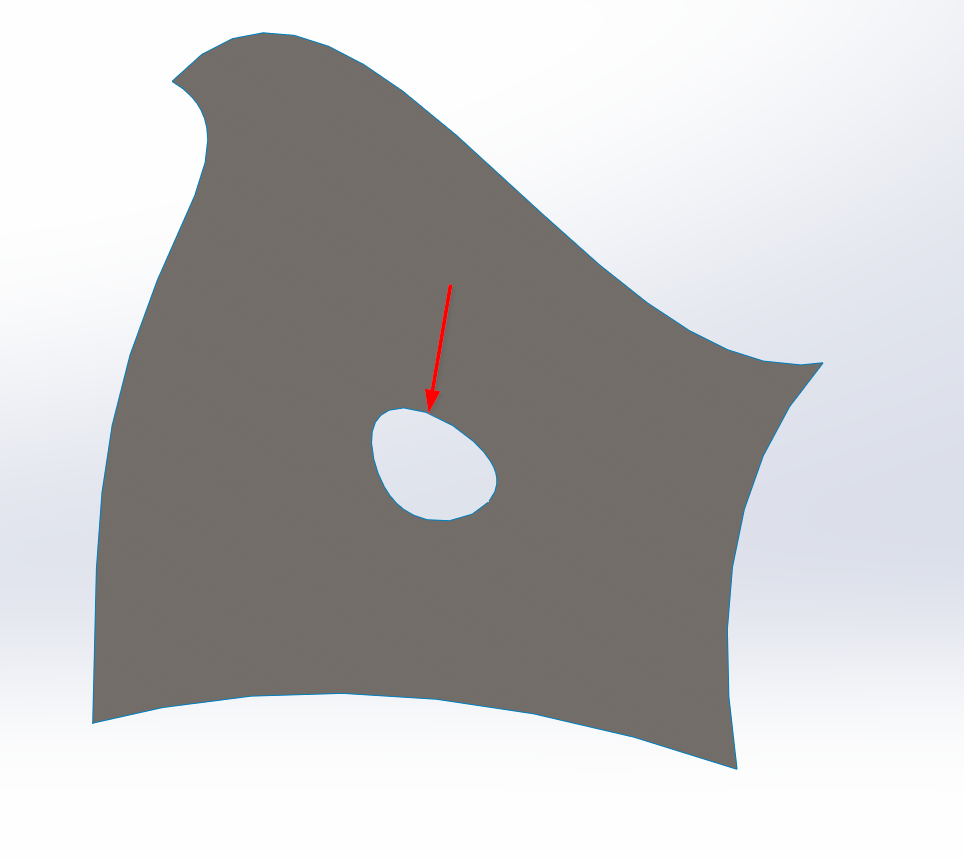

The cleanest way to remove this hole in the imported surface shown is this feature.
What is delete face?
200
This is the macro used to find files and open them or insert them into the current assembly.
What is Browser?
200
He was the first Grand Valley co-op employed at Koops.
Who is Ben VanderWall?
200
This saying recognizes that the vendor with the greatest website is also the speed leader.
What is "Nobody's faster than McMaster"?
300
This is the feature associated with the symbol below.
What is Move Face?
300

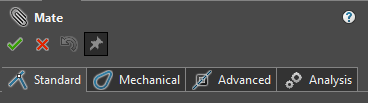

Symmetric mate is found under this tab of the mate dialog box. Choices shown below.
What is advanced?
300
This is one of the features that turns a surface into a solid body. Only one correct answer needed.
What is thicken, knit, or intersect? Also technically accurate: What is boundary surface, fill surface, loft surface and mutual trim surface?
300
This is the macro you should run after downloading a cad file from Misumi or SMC.
What is saveaspart?
300
This is the number of full time ME's (including leads) Koops employs, +/- 1.
What is 32?
300
When Koops achieves complete control of the machine building market it will have gained this.
What is Automation Domination?
400
This is the most common grade of bendable aluminum sheet used by Koops.
What is 5052-H32 ALUM. SHEET?
400
This choice for alignment method in the mirror component feature is always the correct choice. Bounding box center and center of mass are garbage alignment methods.
What is component origin?
400
This is the term for how smoothly two faces touch each other. The three types of this are contact, tangent and curvature.
What is continuity?
400
If you're not using this macro to add parts to the active assembly, you're doing it wrong.
What is InsertNewPart?
400
This is the year Koops was founded, +/- 1 year.
What is 1989?
400
The number of irregularly shaped weldment pieces that show up.
What is burnout turnout?
500
This is the diameter of the Koops standard for an M6 clearance hole. (Either Inch or Metric will be accepted)
What is 0.257" or 6.53mm?
500
This is the way to see all relations and their status (in-context, out-of-context, broken, etc) of the currently open assembly.
What is right click on the main assembly at the top of the assembly tree and select "external references".
500

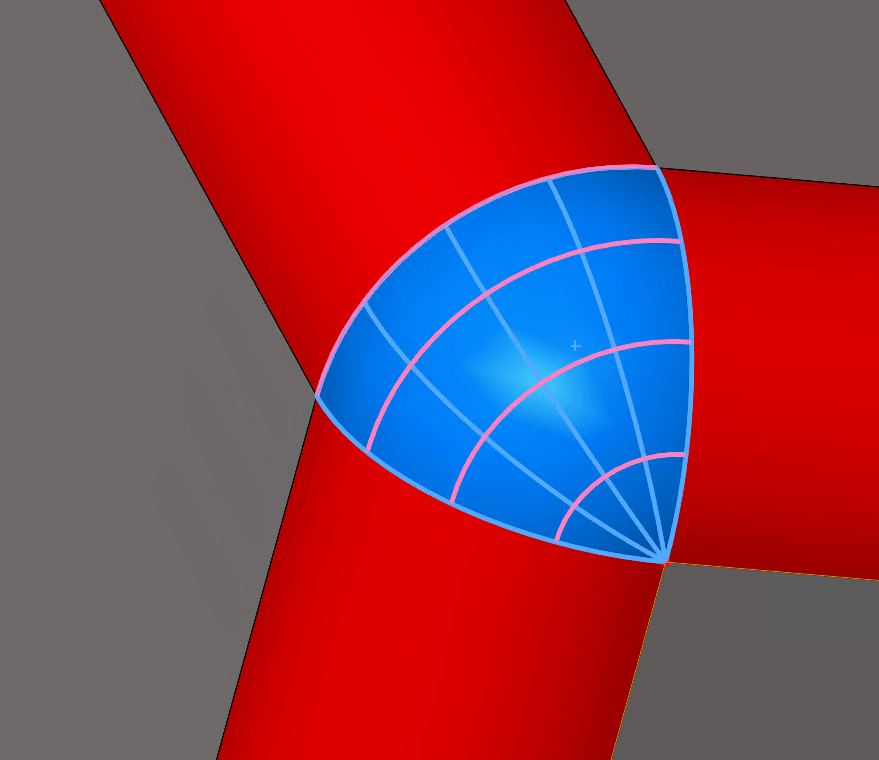

A face that has face curves converging on a single point is know as this.
What is a degenerate face?
500

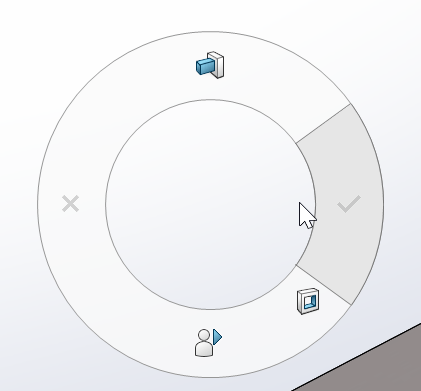

Right click and move the mouse slightly to use this method of calling commands.
What are mouse gestures?
500
This is the amount of sales Koops had in 2021, +/- $1M.
What is 61.7M?
500
A statement denying any responsibility or fault from the Koops Excel tool used to give files their proper filenames.
What is a renamer disclaimer?
