Airport information
Airspace
Requirements of Entry
Sectionals
Sectionals pt2
100

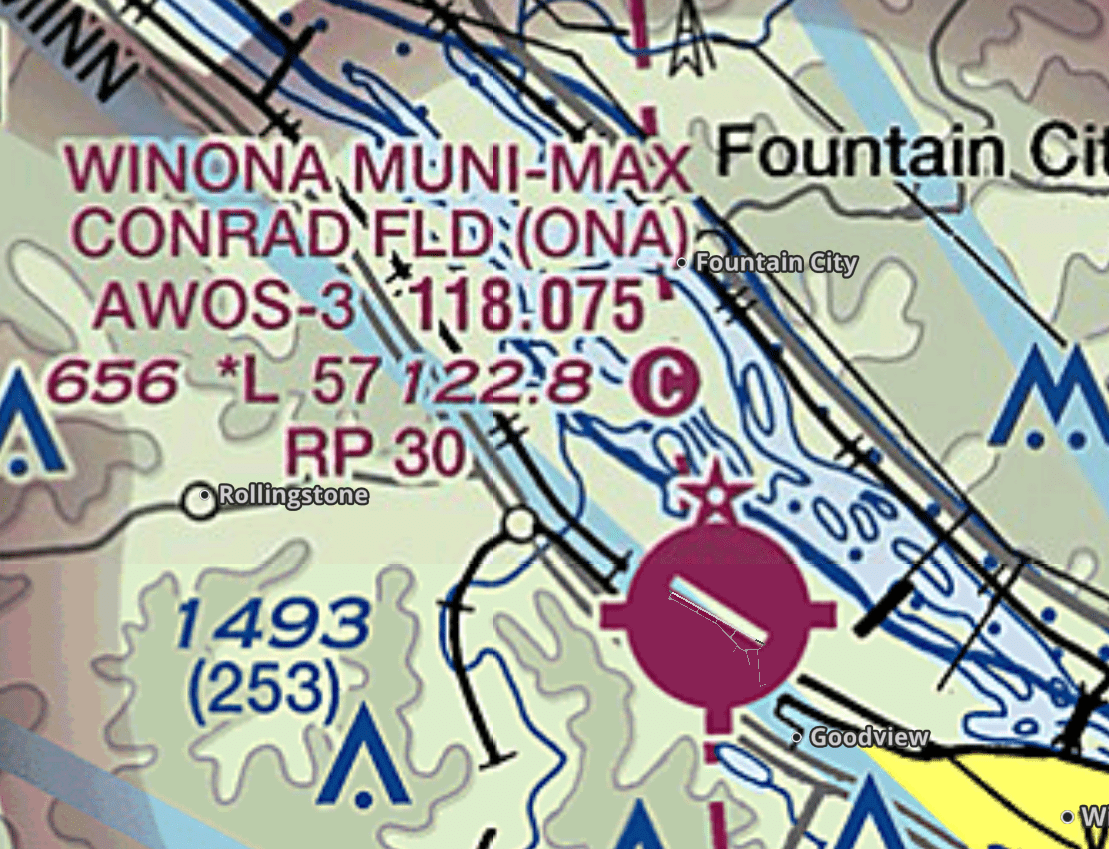

What is the airport identifier
KONA
100
what are the visibility and cloud clearance requirements for class A airspace
None
100
What is required to enter class D airspace
Two way radio communication
100

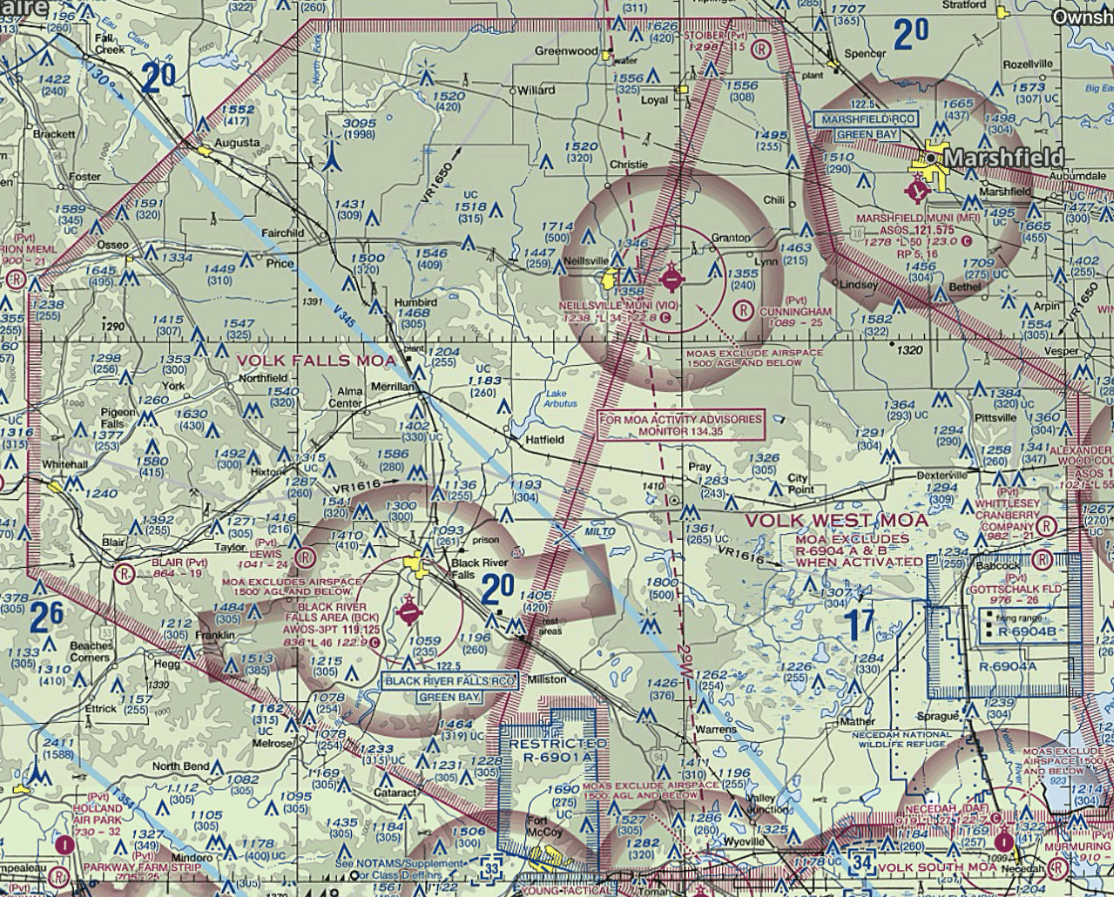

What is the red hatched area?
an MOA
100
what does this mean
a tower less than 1,000 ft
200
what is the airport AWOS frequency and CTAF frequency? Bonus- what does AWOS and CTAF stand for?
AWOS (Automated Weather Observing System)- 118.075 CTAF (Common Traffic Advisory Frequency) -122.8
200
what are the visibility and cloud clearances for class B airspace
3 SM visibility and clear of clouds
200
What is required to enter class C airspace
Mode C transponder, ADS-B out, and two-way radio
communication
200
What does the magenta vignette mean
Lowers class E airspace from 1200AGL to 700 ft AGL
200
what do the bold number mean
Height above sea level
300
What does 656 mean?
Field elevation
300
What are the visibility and cloud clearances for class C and D airspace
3 SM visibility, 2,000 ft horizontal, 1,000 ft above, 500 ft below
300
What is required to enter class B airspace
Mode C transponder, ADS-B out, and a clearance given by ATC
300

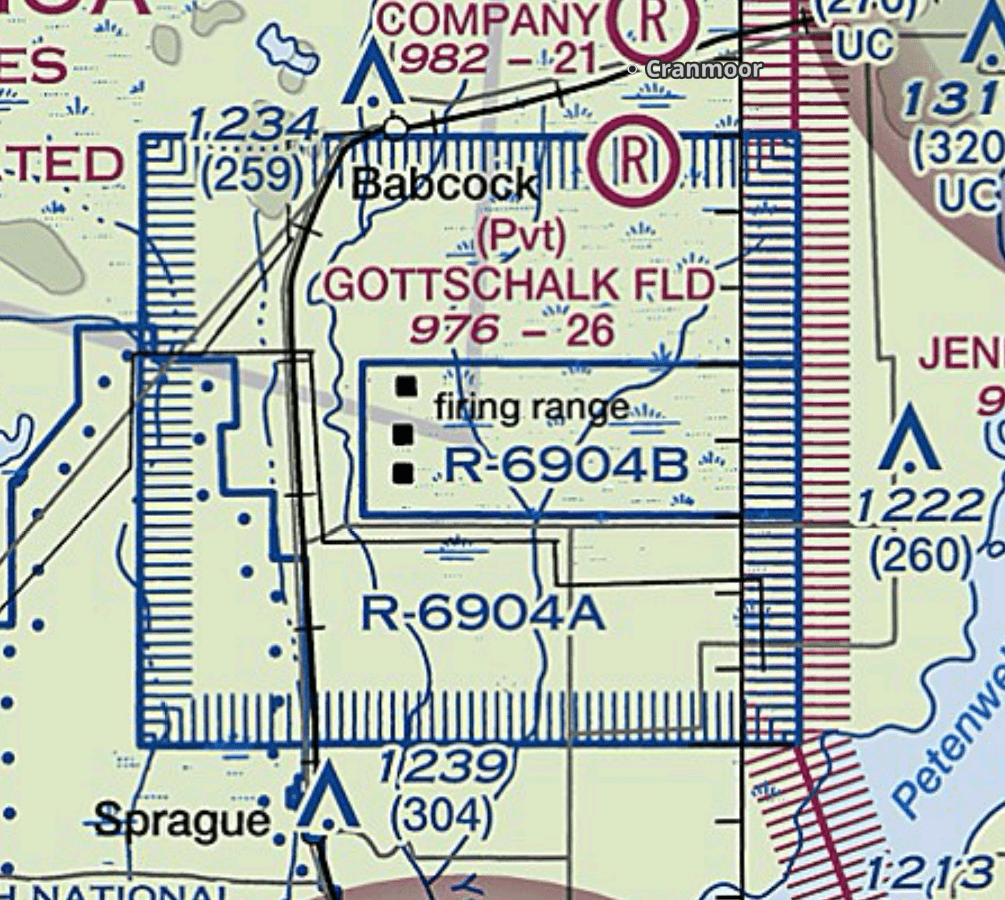

what does the blue hatched area mean
Restricted area
300

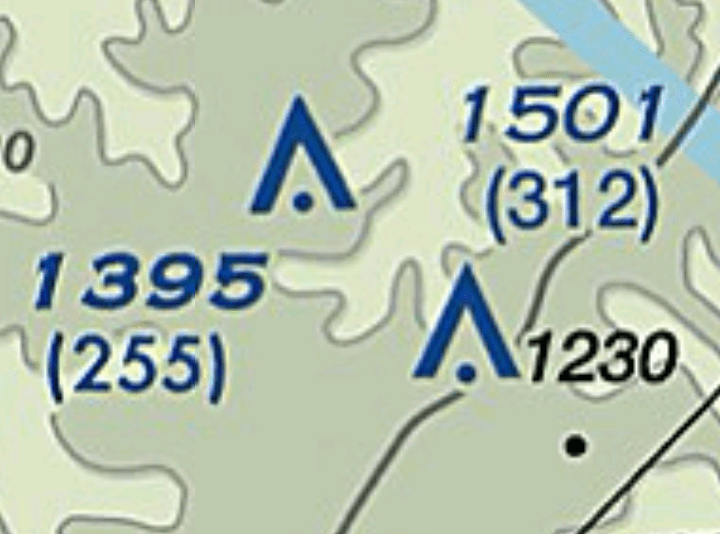

what does the number in parentheses mean
tower height in feet above the ground
400
What does the *L mean
pilot controlled lighting
400
What are the visibility and cloud clearances for class E airspace below 10,000 ft
3 SM visibility for altitudes
5 SM for altitudes above 10,000 ft MSL, 2,000 ft horizontal, 1,000 ft above, 500 ft below
400
What is required to enter class A airspace
mode C transponder, ADS-B out, ATC clearance, maintained two way radio communication, and an instrument flight plan is required to enter.
400
what does does the bold 24?
The height of the tallest obstacle in the Quadrant
400
what do these mean
obstructions with high-intensity lights
500
what does 57 mean
Length of the longest runway in thousands of feet
500
What are the visibility and cloud clearances for class E airspace above 10,000 ft
5 SM , 2,000 ft horizontal, 1,000 ft above, 500 ft
500
What is a quadrant?
Formed by the lines of latitude and Longitude each is 30 min tall and 30 min wide
600
What does RP 30 mean
right pattern for runway 30
600
What are the all the visibility and cloud clearances for class G airspace during the Day?
Below 1,200 ft AGL (Day)- 1 SM visibility and clear of clouds
1,200-10,000 ft AGL (Day)- 1 SM visibility and 2,000 ft horizontal, 1,000 ft above, 500 ft below clouds
600
what is this
a tower that is taller than 1,000 ft
700
What does the filled in Magenta circle with a star mean
Paved, non-towered, public use airport with a beacon and lighting
700
What are the all the visibility and cloud clearances for class G airspace at Night?
Bonus- what are the requirements above 10,000 feet
3 SM visibility and 2,000 ft horizontal, 1,000 ft above, 500 ft below clouds
Above 10,000 ft AGL- 5 SM visibility and 1 SM horizontal, 1,000 ft above, 500 ft below clouds
700
what do these mean
a group obstruction
