Game Spec & Setups
Operation
Errors & Troubleshooting
Settings
Find It!
100
1861 x 976 x 2509 mm
AC 230 Volts x 500 Watts
What are the product dimensions and electrical requirements?
100
A coin is fed into the front hopper elevator, pushing another down the coin chute, and either goes into the wheel or playfield
What happens when you press the play button?
100
The count hopper error code
Error 05
100
Where do you find the game settings?
On the control panel in the right side cabinet
100
How many parts are there to the billboard assembly?
7
200
At the Control Panel, at the back of the game, at the gosund
Where can you turn off power?
200
9 Cards
How many cards in a full set?
200
At the Control Panel, at the back of the game, at the gosund
Where can you turn off power?
200
What options are in the Operation Menu?
Program Setting
Clear Mode
Bookkeeping Data
Factory-Setting
Test Mode
Playfield-Setup
Game Mode
200
What is the part number for the main play button?
300
10-12
How many cards go on the field during setup?
300
When medals fall into the count hopper or the Bonus Ticket sign is activated on the wheel
When does the machine release tickets?
300
On the Coin Display preceded by an E
Where can you find the error code?
300
Menu/Select -> Test Mode -> Front Hopper Test (select once)
How would you automatically dispense 3 tokens down the coin chute?
300

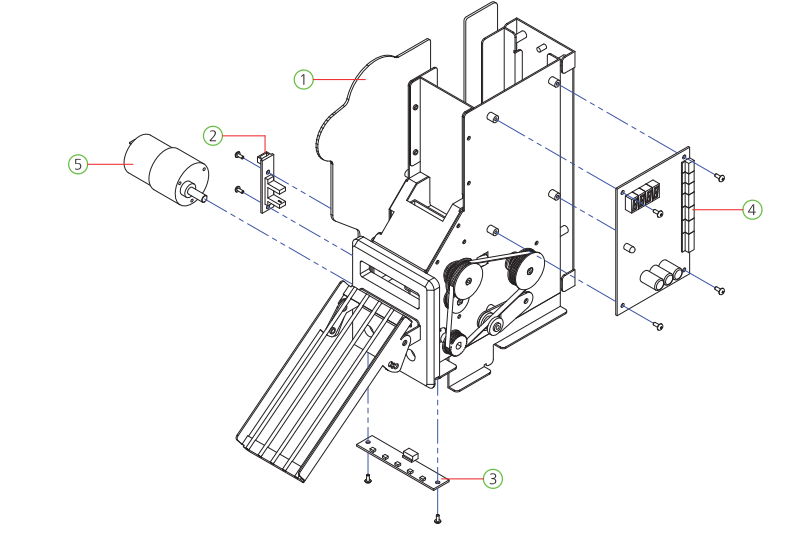

What is this assembly?
Card Dispenser Assembly
400
1100 medals
How many coins should be in the game?
400
24 LEDs
How many LEDs are on the game wheel
400
Error automatically resolves after 15 seconds
How do you fix a tilt error?
400
It is the only Playfield Setup which does not run the card dispense function
What function does Playfield Setup A not run that Playfield Setup B and C do?
400
Which heads on the Main IO Board are connected to the intercard reader?
J17 and J5
500
How would you move this game?
Lower the nut,
raise the adjustor,
move it on the casters,
then relevel it using the adjustors
500
Every so many plays or when the right LED on the lamp is lit up
When is a card released?
500
What should be the first thing you check in almost any error?
The appearance of what is breaking and the surrounding parts
500
A customer complains the game is rigged not to drop cards, how can you check if this is true?
Checker info under Bookkepping Data, make sure cards are dropping, run a test to make sure the card dispenser is functioning, clear trhe bookkeeping data, and check the game later after more plays.
500
The machine is displaying TLT repeatedly, the error does not dissapear after 15 seconds. The notes say a tech has already checked the machine is level and replaced the old Tilt Sensor with a new one. What is the next step?
Check ground is grounded on the Main IO Board, Header J3 Pin 5
OR
replace the Main IO Board.
