Properties
Translations
Rotations
Reflections
Identifying Rules
Recognize the transformation
100
Name the rigid transformations. (meaning they don't change size or shape)
translation, reflection, rotations
100
The word that describes translating.
Slide
100
A figure that can map itself by rotating less than 180 degree is known to have what?
Rotational symmetry
100
P is equal to P' after a reflection if
P is on the line of reflection
100
This rule describe translating up 6 units.
(x, y+6)
100
The graph depicts a rigid transformation. What is the rule? Give the words and the notation.
1 unit right 2 units down: (x + 1, y - 2)
200
Which transformations doesn't change orientation?
translations
200
Adding to the x-coordinate moves a figure in this direction.
to the right
200
If both coordinates change signs what transformation occurred? (-x,-y)
180 degree rotation
200
This coordinate stays the same when a figure is reflected over the y-axis.
the y-coordinate.
200
Rule for 90 degree counter clockwise rotation.
(x,y)---> (-y,x)
200
The given graph depicts a rigid transformation.
What is a reflection in the y-axis?
300
The picture below shows this type of transformation.
Rotation
300
If (1, 6) is translated to the left 3 and down 1, what are the new coordinates?
(-2, 5)
300
Describe the following rotation.
90o counter clockwise
300
Problems 4 in Chapter Standardized Review
A
300
If (1,5) becomes (3,0) what is the transformation rule?
(x + 2, y - 5)
300
The given graph depict multiple transformations of the pre-image *. This image depicts a Reflection of * across the y-axis.
What is D?
400

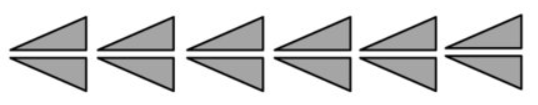

Describe the frieze pattern.
TRVG
400
This is what happens to the coordinates if a figure translates up and to the left.
subtract from the x-coordinate and add to the y-coordinate?
400
This is the coordinate M' after the figure below is rotated 90o clockwise.
(6, -6)?
400

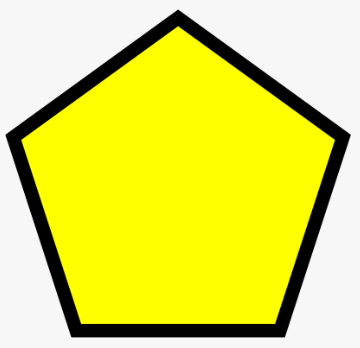

How many lines of symmetry are in the regular pentagon?
5
400
This rule describes rotating 270o clockwise.
(change the sign of y, x) or 90 degrees CCW
400
The given graph depicts a rigid transformation.
What is a 90-degree clockwise rotaition?
500

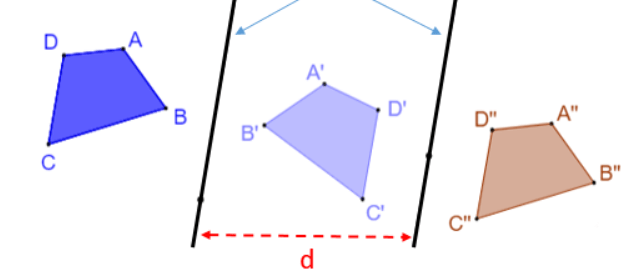

Name the distance that is twice of "d" between the parallel lines.
Which figure is the image in the following reflection:
A to A" or B to B" or C to C" or D to D"
500
In words, what is the translation rule for the figure to image below?
left two units, up two units
500
This clockwise rotation is the same as rotating 90o counterclockwise.
270o clockwise
500
Reflect the triangle ABC over Y-axis with side lengths AB =3 units, BC = 4 units and AC = 5 Units. After reflection What is the length of BC?
4 Units.
500
(y, -x) is a description of rotating 270o counterclockwise or rotating 90o clockwise. True or False
True
500
The given graph shows rigid transformations of the pre-image . Triangle * will have a Rotations of 90-degrees counterclockwise about the origin. Where will the new figure be?
What is figure B?
600
Name a composition that would matter in the order of transformation?
Rotation and Reflection or Translation Rotation
600
This is the algebraic rule of a translation that moves a figure 2 units left and 3 units up.
(x, y) → (x − 2, y + 3)
600
What is the rotation from pre image to image?
90 degrees clockwise or 270 degree counter clockwise.
600
Reflect triangle PQR over X axis, what is the angle measure for P' Q' R'? Angle Measure for P = 60, R=90, Q = 30
R' 90, P' 60, Q' 30
600
This is the rule for the following transformation
rotation 90 degree counterclockwise about the origin
(𝑥, 𝑦) → (−𝑦,𝑥)
600
The given graph represents transformations of the pre-image *. This figure shows a Rotation of the pre-image clockwise about the origin.
What is figure C?
700

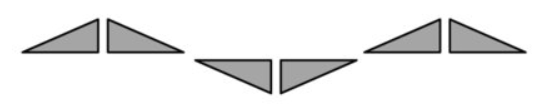

Describe the frieze pattern.
THG
700
Initial point P (-6,-2) and a terminal point Q (-3, -5) form a vector. What is its component form?
Vector PQ <3,-3>
700
What would be the transformation in the illustration?
180 degree rotation
700
A y-axis representation of the word MOON would produce this word. An x-axis representation of the word WOW would produce this word.
NOOM and MOM?
700
What is the rule for the given transformation.
Reflection across the y-axis (𝑥, 𝑦) → (−𝑥,𝑦)
700
These two transformations have occurred to the given figure.
What is a Reflection across the x-axis and then translated 10 units right and 2 units up.
