Vocabulary
Translations
Reflections
Rotations
Graphs
100
These two perpendicular lines meet at the center of the graph. They are often used as mirrors for reflections.
What are the x-axis and y-axis?
100
When this unit is translated 3 units to the left and 2 units up, this will be the new C coordinate.
What is (3,-1)?
100
True or False. When an image is flipped over the x-axis, the y coordinates change. When an image is flipped over the y-axis, the x coordinates change.
What is True?
100
Find the coordinates of A' and B' when A(-3, -2) and B(-1, 2) are rotated clockwise 180 degrees.
What is A'(3, 2) and B'(1, -2)?
100

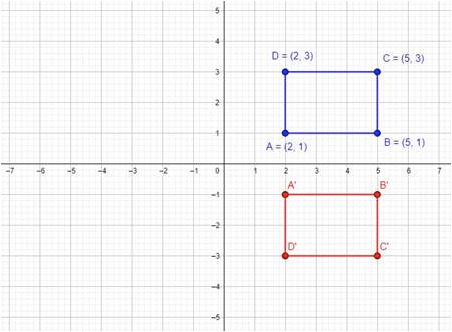

Name the type of transformation and the coordinates for A' B' C' and D'
What is a reflection over the x-axis? and What are A'(2,-1) B' (5,-1) C'(5,-3) D'(2,-3)?
200
A transformation in which a plane figure turns around a fixed center point.
What is rotation?
200
When this image is translated 3 units down, this will be the new B coordinate.
What is (0,0)?
200
When this image is reflected over the x-axis, this will be the new D coordinate.
What is(4,-3)?
200

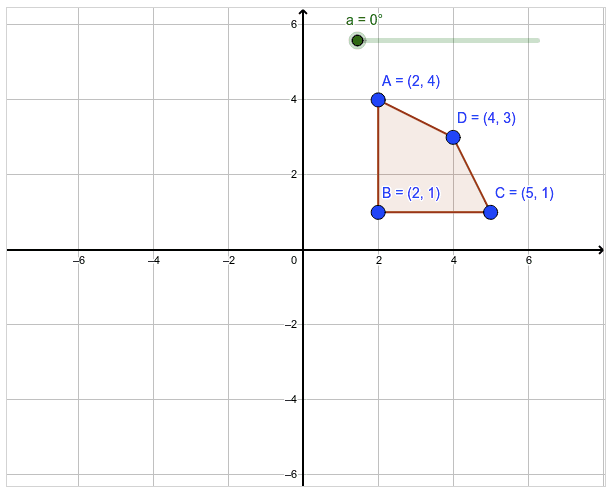

This degree measurement is the rotation of this image. You must include the direction of if it is clockwise or counterclockwise.
What is a rotation of 90 degrees clockwise?
200
Name the type of transformation and the coordinates for A', B', C', and D'
What is a reflection over the y-axis? What are A'(-2,1) B' (-5,1) C'(-5,3) D'(-2,3)
300
A transformation in which a graph or geometric figure is picked up and moved to another location without any change in size or orientation.
What is translation?
300
When an image moves to the left or right, this coordinate is affected.
What is the x-coordinate?
300
This type of reflection will make the images face each other from side to side.
What is a reflection across the y-axis?
300
This angle of rotation creates the same image if it's rotated clockwise or counterclockwise.
What is a rotation of 180 degrees?
300

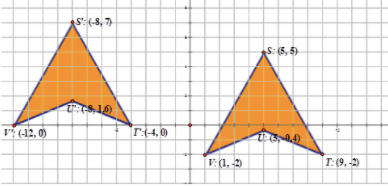

These are the directions for the translation of this image.
What is 13 units to the left and 2 units up?
400
The transformation that creates a mirror image of the original shape.
What is reflection?
400
If this image is translated 2 units to the right, this will be the new A coordinate.
What is (0,-5)?
400
When this image is reflected over the y-axis, this will be the new C coordinate.
What is (-5,1)?
400
This degree measurement is the rotation of this image. You must include if it is clockwise or counterclockwise.
What is 90 degrees counterclockwise?
400

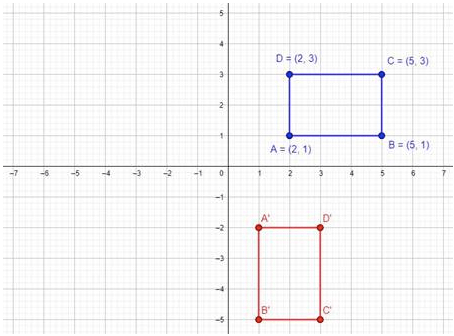

Name the transformation of this image and the coordinates for A', B', C', and D'
What is a 90 degree rotation clockwise? What are A'(1,-2) B'(1,-5) C'(3,-5) D'(3,-2)
500
Operations that alter the form of a figure. Examples: translations, reflections, dilations, and rotations.
What is transformations?
500
When an image moves up or down, this coordinate is affected.
What is the y-coordinate?
500
This type of reflection will make the images mirror each other from the top half of the graph to the bottom half of the graph.
What is a reflection over the x-axis?
500
This degree measurement is the rotation of this image.
What is a 180 degree rotation?
500

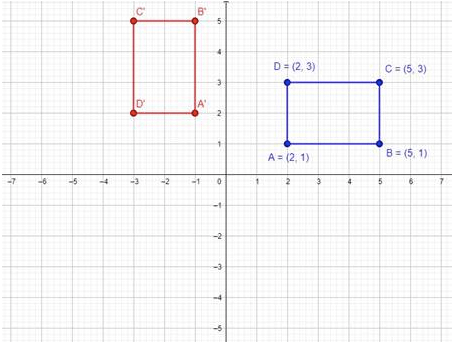

Name the type of transformation and the coordinates for A', B', C', and D'
What is a 90 degree rotation counterclockwise? What are A'(-1,2) B'(-1,5) C'(-3,5) D'(-3,2)
