Cross Sections
Miscellaneous
Composite Figures
Missing Parameter
How many will fit?
100
The horizontal cross section of a rectangular prism
What is a rectangle
100

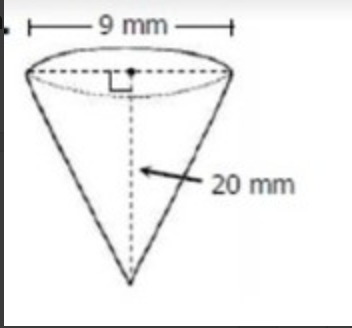

Calculate the slant height of the cone.
What is 20.5 mm
100

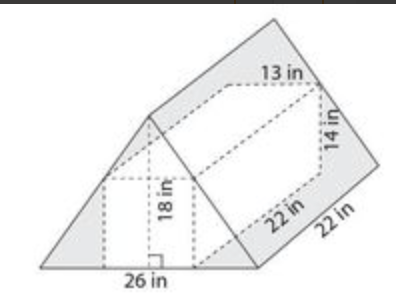

Calculate the volume of the shaded region
What is 1144 in3
100
The length of a rectangular prism with volume 680 m2 and a width and height of 10m and 4m, respectively.
What is 17m
100
How many gum balls (radius: 2cm) can fit in a jar with a volume of 9425 cm3?
What is 281 gum balls
200
The horizontal cross section of a triangular pyramid
What is a triangle
200

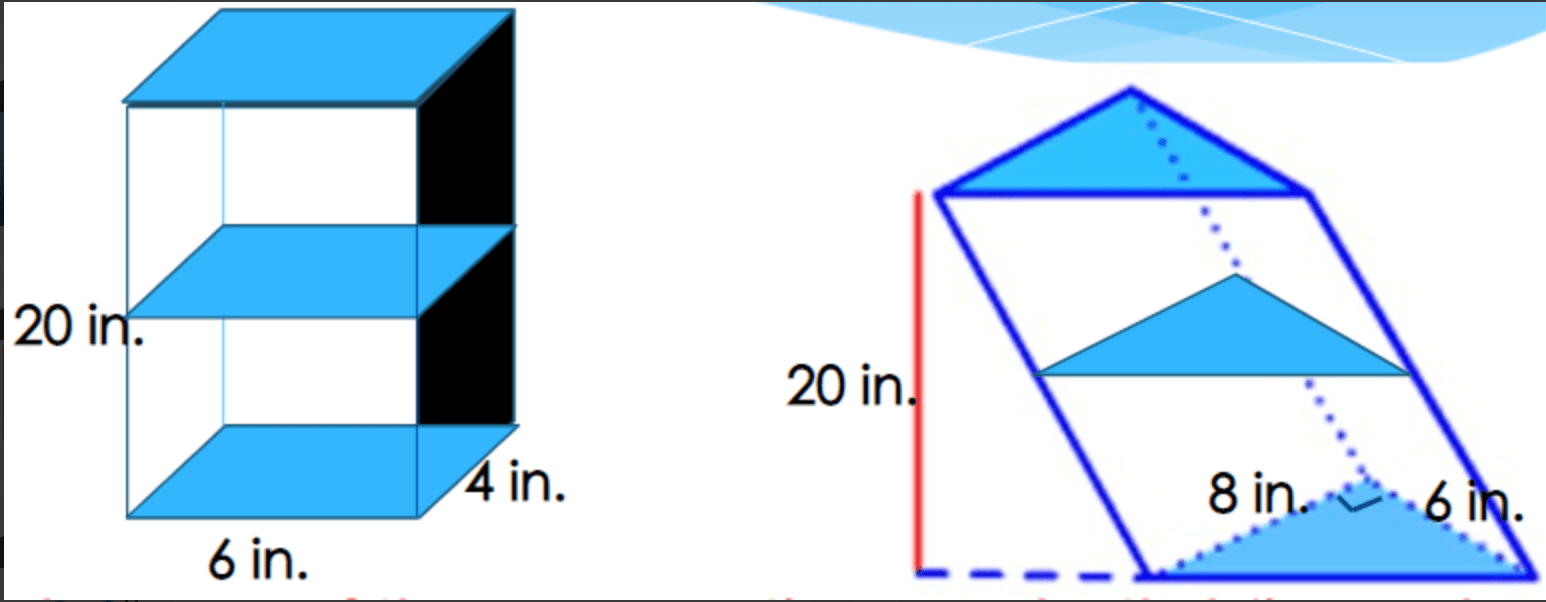

What (3) things will ensure that these figures have equal volumes?
What is: equal base area, equal height, and equal cross sectional area
200

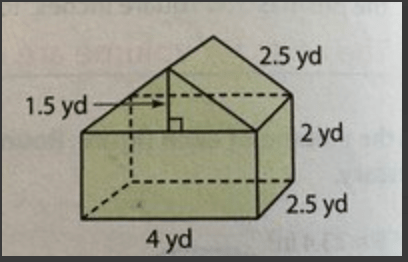

What is 27.5 yd3
200
The side measurements of a square pyramid with volume 15 yd3 and height of 5 yd
What is 3 yd
200

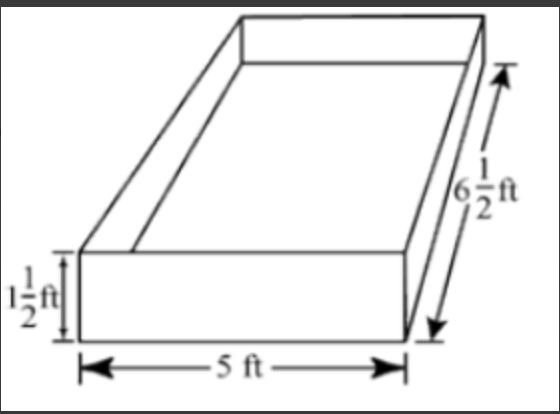

An engineer wants to construct a rectangular sandbox for the students at an elementary school. The sandbox will be filled with sand to complete construction. If each bag of sand contains 6 cubic feet of sand, how many bags will be needed to completely fill the sandbox?
What is ~8 bags?
300
The cross section of a sphere
What is a circle
300
Describe the 3D figure created when this 2D triangle is rotated around the given axis 360 degrees.
What is a cone
300

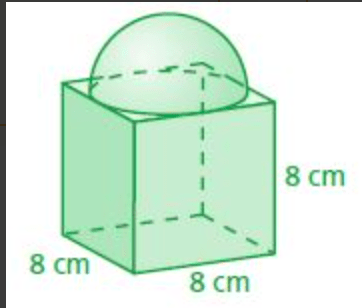

What is 188.4 cm3
300
The height of a cylinder with a diameter of 16 cm and a volume of 768π cm.
What is 12 cm
300
A tool manufacturer packages one of its power saws in a box that is 1 foot long, 1 foot wide, and 1 foot high. How many of these boxes would fit in a shipping crate that is 4 feet long, 3 feet wide, and 2 feet high?
What is 24 boxes?
400
The DIAGONAL cross section of a cylinder
What is an oval
400
Describe the 3D figure created when the circle is rotated around the given axis 360 degrees.
What is a donut
400
Farmer Fred has a silo that looks like the one in the picture. The cylinder part is 20 feet tall with a radius of 6 feet. What is the volume of the entire silo? Round to the nearest whole number.
What is 2714 ft3
400
The diameter (rounded to the nearest tenth) of a sphere with a volume of 2,400 cm3. Use π, not 3.14.
What is 16.6 cm
400

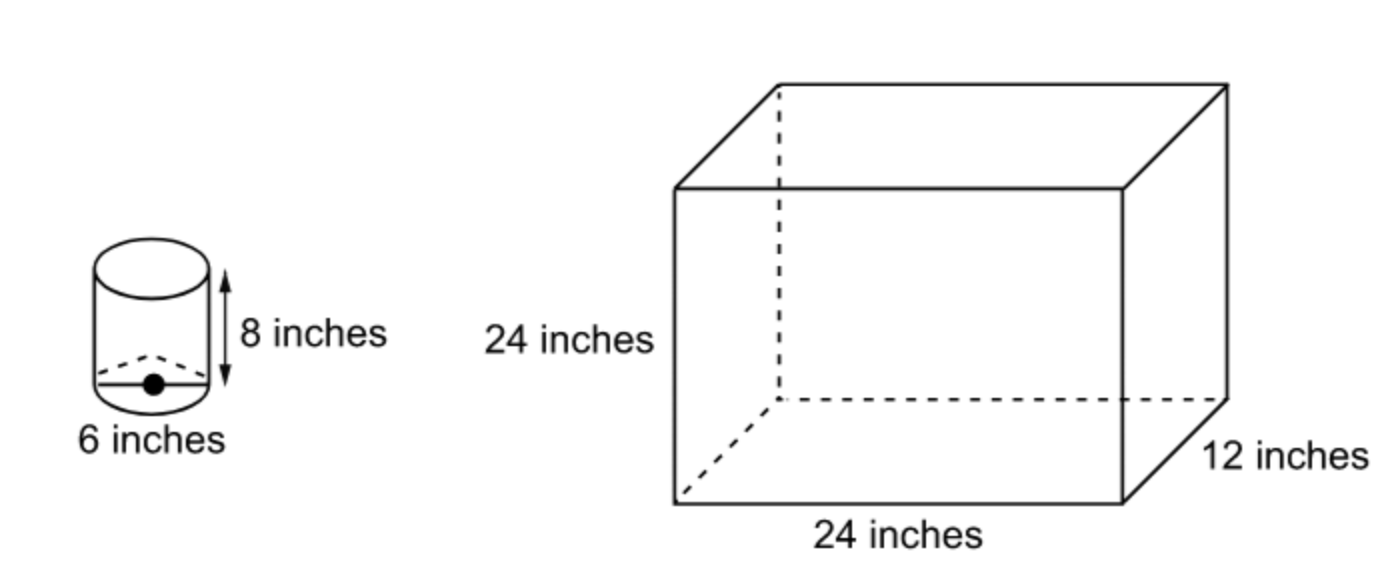

What is the least number of full cylindrical containers needed to completely fill the fish tank?
What is 30 containers
500

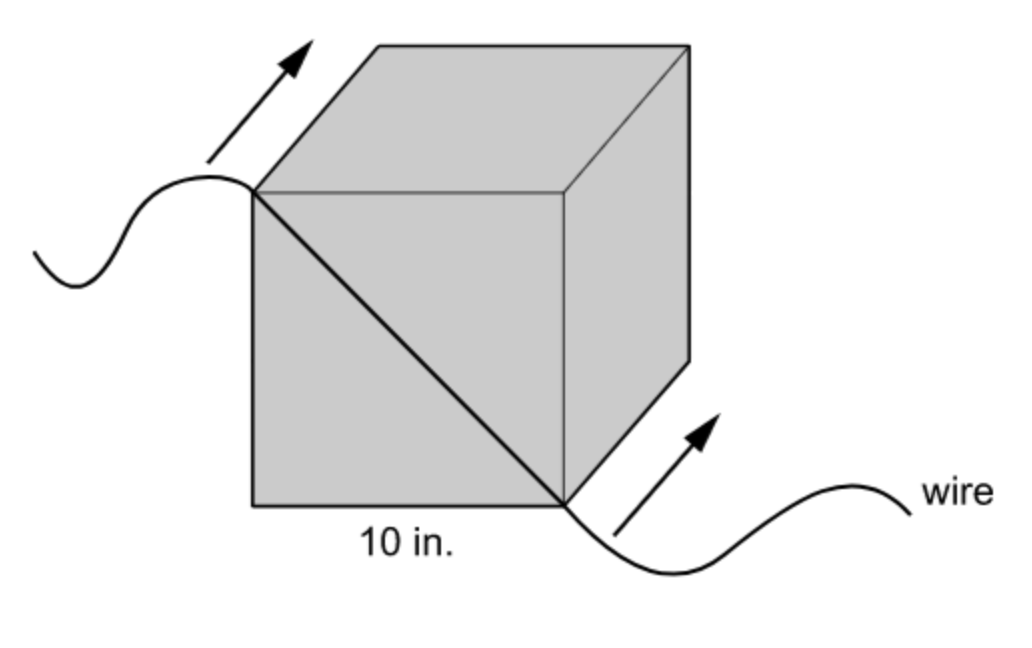

The DIAGONAL cross section of a cube
What is a rectangle
500

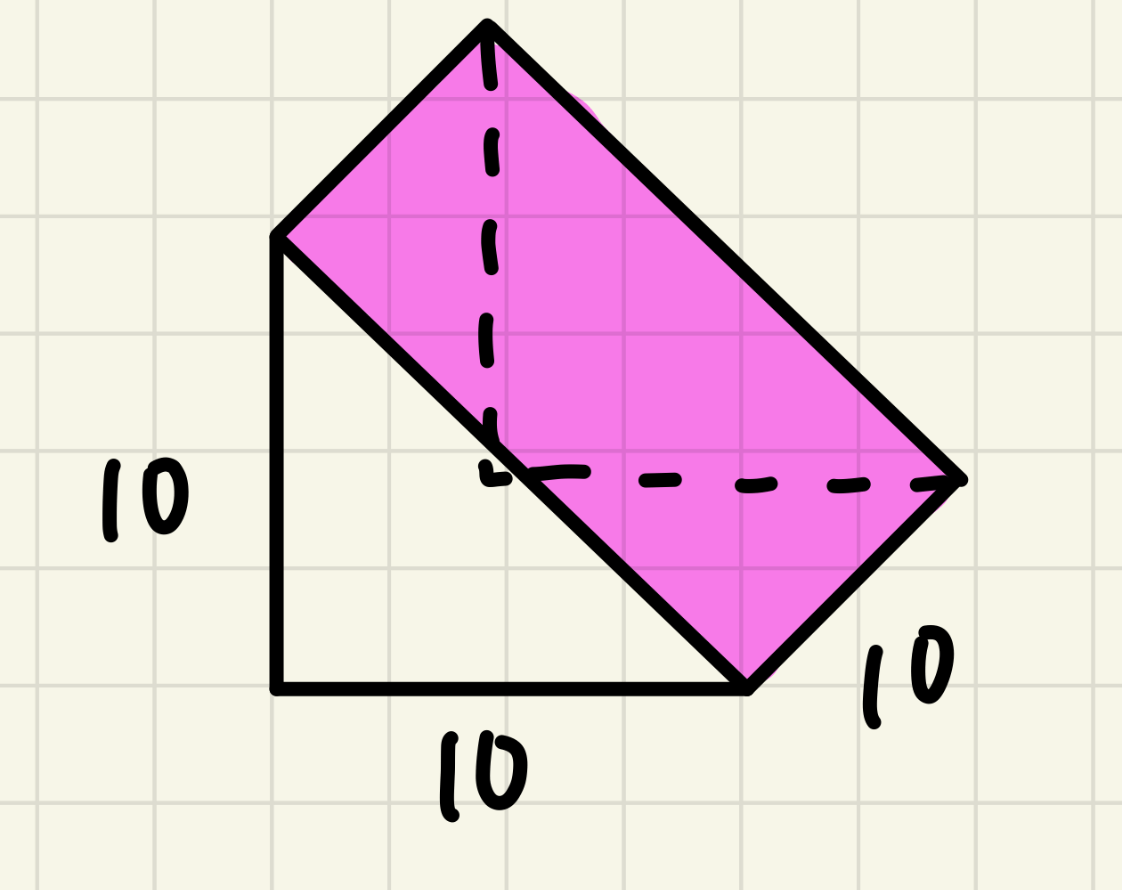

Calculate the area of the shaded region. Round to the nearest tenth
What is 141.4 sq units
500
Round the volume to the nearest tenth
What is 68,629.1 cm3
500
The volume of a cone with slant height 13cm and radius 5 cm. Include the correct units in your answer.
What is 314 cm3
500
Daniel only wants to use HALF this cube of clay. He wants to use the clay to create spheres with a diameter of 4 inches. How many full spheres will he be able to make?
What is 14 spheres?
