SMOKE BARRIERS
HAZARDOUS AREA PROTECTION
LIFE SAFETY
Saturday Night LIVE! Fire Safety
LIFE SAFETY
GENERAL
100
IN A NEW HEALTH CARE FACILITY WHAT IS THE REQUIRED RATING FOR A SMOKE BARRIER WALL?
1 HOUR (LS 101 Chapter 18.3.7.3)
100
WHAT DOES THE RED H ON THE LIFE SAFETY PLANS MEAN?
HAZARDOUS ROOM
100
THE RING OR CUP THAT GOES AROUND THE SPRINKLER HEAD IS CALLED WHAT AND CAN YOU SPELL IT?
ESCUTCHEON PLATE
100
This “G” shaped letter comes between “F” and H.”
What is letter "G"
100
PULL STATIONS ARE REQUIRED TO BE WITHIN HOW MANY FEET OF A REQUIRED EXIT?
5 FEET
100
WHAT IS THE MAXIMUM DEAD-END CORRIDOR LIMIT IN A HEALTHCARE FACILITY?
30 FT, (LS 101 Chapter 18.2.5.2)
200
ARE DOORS IN A SMOKE BARRIER IN A NEW HEALTHCARE FACILITY REQUIRED TO LATCH? SELF-CLOSE?
NOT REQUIRED TO LATCH, BUT ARE REQUIRED TO SELF OR AUTOMATICALLY CLOSE. (LS 101 Chapter 18.3.7.8)
200
WHAT IS THE MAXIMUM ALLOWABLE DISTANCE BETWEEN FIRE EXTINGUISHERS?
150 FT
200
I MUST BE ABLE TO REACH A FIRE EXTINGUISHER WITHIN HOW MANY FEET?
75 FT IN ANY DIRECTION
200
WHAT TYPE OF FIRE EXTINGUISHER IS LOCATED INSIDE THE KITCHEN AREA MARKED WITH LETTER "K" AND IS USED TO PUT OUT GREASE FIRES?
"K" - Class/Type
200
WHAT DISTANCE MUST I KEEP CLEAR IN FRONT OF MED GAS ZONE VALVES AND ELECTRICAL PANELS?
36 INCHES
200
WHAT IS LOCATED IN ABOVE THE CEILING WITHIN THE HVAC SYSTEM, PENETRATING A FIRE WALL THAT SHUTS AND SEALS OFF YOUR SMOKE COMPARTMENT?
FIRE DAMPER
300
WHAT IS THE MAXIMUM TRAVEL DISTANCE FROM ANY POINT IN A SMOKE COMPARTMENT TO REACH A SMOKE BARRIER DOOR IN A NEW OR EXISTING HEALTHCARE FACILITY?
200 FT (LS 101 Chapter 18.3.7.1(4))
300
HOW MANY FULL O2 CYLINDERS ARE ALLOWED WITHIN A SINGLE SMOKE COMPARTMENT?
12
300
WHAT IS THE DISTANCE I MUST MAINTAIN A STORAGE FREE SPACE BELOW A SPRINKLER HEAD DEFLECTOR?
18 INCHES
300
This number comes between 5 and 7.
What is number "6"
300
NAME THESE FIVE RESPONSIBILITIES FOR FIRE WARDENS IN THE EVENT OF A FIRE EMERGENCY.
1. PUT ON YOUR VEST 2. HORIZONTALLY EVACUATE TO THE NEXT ADJACENT SMOKE COMPARTMENT 3. GO RENDER AIDE AND ASSISTANCE 4. WALK MY SMOKE COMPARTMENT 5. COMPLETE AND SEND FIRE DRILL CHECKLIST
300
WHAT DO ELEVATORS DO DURING A FIRE?
RECALL TO THE LEVEL OF EXIT DISCHARGE
400
WHAT IS THE MAXIMUM SIZE IN SQUARE FEET A SMOKE COMPARTMENT CAN BE?
22,500 SQFT
400
EXISTING HEALTHCARE FACILITY, IN A SPRINKLED BUILDING, WHAT IS THE REQUIRED SEPARATION/RATING OF HAZARDOUS AREAS FROM OTHER SPACES IN REGARDS TO WALLS?
SMOKE PARTITION, 19.3.2.1.2, CONTINUITY 8.4.2(3)
400
WHEN SEPARATING TWO SUITES WHAT MUST THE PARTITION BE CONSTRUCTED OF?
NONCOMBUSTIBLE OR LIMITED-COMBUSTIBLE MATERIAL, (LS 101 Chapter 18.2.5.7.1.4)
400

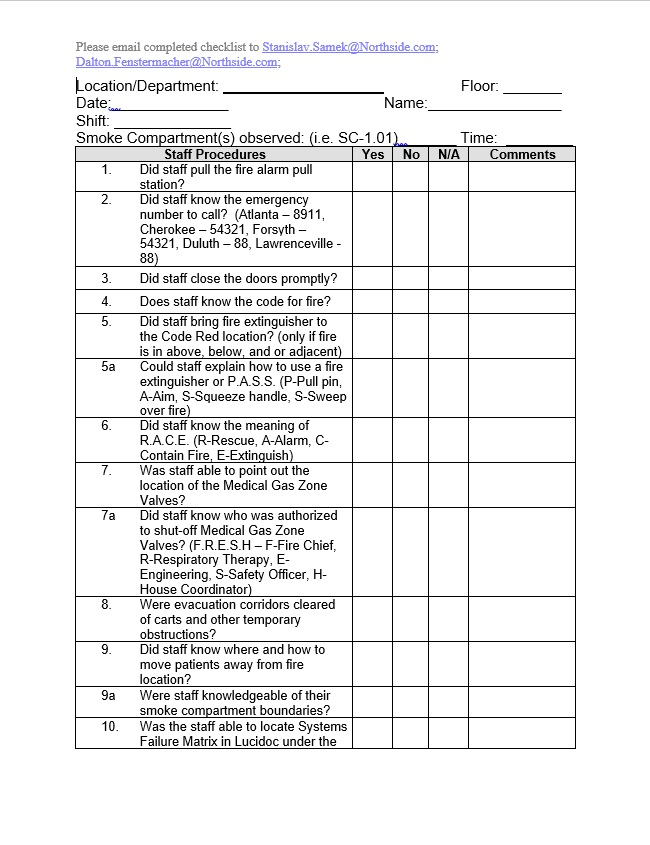

WHAT IS ON THE PICTURE?
Fire CheckList
400
WHEN I PULL A PULL STATION WHAT TWO THINGS DOES THIS DO?
IMMEDIATELY CALLS THE FIRE DEPARTMENT & NOTIFIES ALL OCCUPANTS WITHIN THE BUILDING
400
WHO DO YOU NEED DIRECTION FROM TO CLOSE A MED GAS ZONE VALVE?
RESPIRATORY OR A PHYSICIAN
500
WHAT IS A SMOKE COMPARTMENT? Simple version :)
A CONTINUOUS MEMBRANE
500
WHAT THREE TYPES OF EQUIPMENT ARE ALLOWED IN THE CORRIDOR ON A PATIENT FLOOR?
1. EQUIPMENT AND CARTS "IN USE" 2. MEDICAL EMERGENCY EQUIPMENT NOT IN USE 3. PATIENT LIFE AND TRANSPORT EQUIPMENT
500
MED GAS ZONE VALVES SHOULD HAVE THESE TWO THINGS LABELED AND LOCATED ON WHAT?
TYPE OF GAS AND ROOMS THE ZONE VALVE SERVES ON THE PIPE
500
This is the only month that starts with "Feb"?
WHAT IS "FEBRUARY"
500
WHAT THREE THINGS WOULD ACTIVATE THE BUILDINGS GENERAL FIRE ALARM SYSTEM?
MANUAL PULL STATION, SMOKE/HEAT DETECTOR, SPRINKLER WATER FLOW SWITCH
500
WHAT IS THE STANDARD TEMPERATURE A SPRINKLER HEAD WITH A RED FUSIBLE GLASS BULB NEEDS TO REACH TO BREAK AND DISCHARGE WATER?
150-155 DEGREES F
