CORROSION
GENERAL AIRFRAMES
GENERAL HARDWARE
AREOSPACE METALS
COMPOSITES
GENERAL SHOP KNOWLEGE
100
CORROSION MANUAL
01-1A-509-1
01-1A-509-2
01-1A-509-3
01-1A-509-4
100
GENERAL MANUAL FOR STRUCTURAL REPAIR
01-1A-1
100
STRUCTURAL HARDWARE MANUAL
01-1A-8
100
AEROSPACE METALS - GENERAL DATA AND USAGE FACTORS MANUAL
01-1A-9
100
GENERAL COMPOSITE REPAIR MANUAL
01-1A-21
100
EXAMPLES OF SUPPORT EQUIPMENT
-ROLLER
-BOX AND PAN
-DRILL PRESS
-FLOOR SHEARS
-THROATLESS SHEARS
-MEDIA BLASTER
-BELT SANDER
-CHOP SAW
200
HOW MANY AND THE TYPES OF CORROSION
- UNIFORM SURFACE CORROSION
- GALVANIC CORROSION
- PITTING CORROSION
- INTEGRANULAR CORROSION
- EXFOLIATION CORROSION
- CREVICE CORROSION
- FILIFORM CORROSION
- EROSION CORROSION
- STRESS CORROSION CRACKING (SCC)
- HYDROGEN EMBRITTLEMENT
- CORROSION FATIGUE
- FRETTING CORROSION
- HOT CORROSION
200
NICK
Broken edges without cracks, but with portions of material removed. Negligible damage limits will vary with structure, material, and loading.
01-1A-1 / TABLE 2-1
200
WHAT ARE THE 4 TYPES OF CHERRYLOCK/CHERRYMAX/OLYMPIC-LOK RIVETS
- PULL-THRU
- STANDARD SELF PLUGGING
- SELF-PLUGGING MECHANICAL LOCKED SPINDLE
- SELF-PLUGGING, MECHANICAL LOCKED SPINDLE, BULBED TYPE
(01-1A-8 1.12.1)
200
WHAT IS ANNEALING
ANNEALING IS A THERMAL TREATMENT USED TO SOFTEN ALUMINUM ALLOYS, REMOVING THE EFFECTS OF PREVIOUS HEAT TREATMENTS AND STRAIN HARDENING TO DEVELOP MAXIMUM FORMABILITY AND MAKE THE MATERIAL EASIER TO FORM WITHOUT CRACKING.
200
ADVANCED COMPOSITE MATERIALS(ACM)
FIBERS
-(CARBON, BORON, ARAMID/KEVLAR)
--------------------------------------------------------
MATRIX
-(EPOXIES, BISMALEIMIDES, PMR POLYMIDES)
--------------------------------------------------------
ADHESIVES
-(EPOXY FILM ADHESIVES)
200
IMRL IDENTIFICATION
- BARCODE
- PART NUMBER
- LAMS
300
DEMONSTRATE HOW TO OPERATE AND MAINTAIN VISCOMETER ZAHN CUP
APPENDIX A - 5.7
300
THE TWO TYPES OF FUSELAGE DESIGNS AND THEIR SIGNIFICANCE
- MONOCOQUE DESIGN
RELYS ON SKIN FOR AIRCRAFT STRUCTURAL STRENGTH
- SEMIMONOCOQUE DEISGN
RELYS ON STRINGERS, BULKHEADS, AND FRAMES TO SUPPORT STUCTURAL STRENGTH
300
WHAT LOCKWIRE IS USED TO SECURE AIRCRAFT HARDWARE
ZINC COATED SOFT STEEL WIRE SPEC # QQ-W-461, ANNEALED CORROSION-RESISTING WIRE SPEC #QQ-W-423. (01-1A-8 16.1b)
300
BEFORE HEAT TREATING CADMIUM PLATED STEEL PARTS WHAT MUST HAPPEN FIRST?
All cadmium plate shall be stripped from part
01-1A-9 / 9.2.1
300
TYPES OF DAMAGES TO COMPOSITE MATERIALS
IMPACT: COLLISIONS FROM FOREIGN OBJECTS (TOOLBOX, MAINTENANCE STANDS, BOX TRUCKS). (01-1A-21, 3-2a)
DENTS: LARGE DIVETS IN PANELS OFTEN CAUSING CRUSHED CORE IN HONEYCOMB COMPENENTS. (01-1A-21, 3-2b)
PENETRATION: VISIBLE BY BROKEN FIBERS, MATRIX CRACKS, & DELAMINATIONS.(01-1A-21, 3-2c)
AIRSTREAM STRIPPING DAMAGE: CAUSED BY PENETRATIONS DURING FLIGHT RESULTING IN MORE DAMAGE TO OCCUR DURING FLIGHT DUE TO AIRFLOW ENTERING SMALL CRACKS AND PENETRATIONS. (01-1A-21, 3-2d)
EDGE AND CORNER: DAMAGE THAT RESULTS IN DELAMINATION OR MISSING PIECES.(01-1A-21, 3-2e)
PARTIAL THICKNESS: MOSTLY GOUGING RESULTING IN OUTER PLY SPLINTERING, BROKEN/MISSING FIBERS, AND DELAMINATIONS.(01-1A-21, 3-2f)
RESIN DAMAGE: DAMAGE TO THE MATRIX CAUSED BY HEAT, CHEMICAL ATTACK, OR EXPOSURE TO UV. (01-1A-21, 3-2g)
DISBOND: WHEN LAYERS OF COMPOSITE SEPERATE FROM EACH OTHER. (01-1A-21, 3-2h)
FLUID INTRUSION: CAUSE BY A PATHWAY IN WHICH WATER CAN GO INBETWEEN LAYERS OF COMPOSITE OR INTO THE ONEYCOMB STRUCTURE. (01-1A-21, 3-2i)
FASTENER HOLE: USUALLY GOUGING AROUND FASTENER HOLES AS CAN BE DELAMINATIONS DUE TO OVER TORQUING FASTENERS. (01-1A-21, 3-2j)
300
HAZARDOUS MATERIALS IDENTIFICATION
- YELLOW LABEL
- MANUFACTURER LABEL
- SDS
- CDL
-UNIQUE-ID/NOMENCLATURE/NIIN
400
CORROSION PREVENTION PHILOSOPHY & THE BIG TAKE AWAY
***BONUS***
WHAT KIND OF DISCEREPENCY REPORT
To maximize equipment service life, it is crucial to proactively manage environmental corrosion, which is always occurring, by understanding equipment failure and utilizing control technologies.
400
HOW ARE FATIGUE CRACKS FORMED
Due to the accumulation of repeated operational stresses over time, fatigue cracks initiate and grow in aircraft structures, typically originating from points of high stress concentration like rivets and fasteners.
01-1A-1 / 2.1.3
400
WHAT ARE THE CHARACTERISTICS OF THE RIVET WHICH PART NUMBER IS ANA425AD4-8
2117-T4 ALUMINUM ALLOY RIVET, 1/8-INCH DIAMETER, 1/2-INCH LONG. (01-1A-8, TABLE 1-14)
400
WHAT EFFECTS DOES NICKEL HAVE WHEN ITS ADDED TO COPPER
higher strength without loss of ductility & excellent corrosion resistance
400
WHAT IS THE DIFFERENCE BETWEEN PREPREG AND A STANDARD WET LAYUP
PREPREG: CONSISTS OF FIBERS THAT ARE PREIMPREGENATED WITH A PARTIALLY CURED (B-STAGED). THAT ARE CUT TO SIZED AND STACKED TOGETHER TO THEIR RESPECTIVE ORIENTATION THEN CURED IN AN AUTOCLAVE USING HEAT & PRESSURE. (01-1a-21, 2-2)
STANDARD WET LAYUP: CONSISTS OF DRY WOVEN STACKED ONTO EACH OTHER IN THE RESPECTIVE ORIENTATION CLOTH IMPREGEGNATED WITH LIQUID ADHESIVE (MATRIX) THEN CURED. (01-1A-21, 6-7e)
400
PRE-REQUISITES TO BECOMING A CDI (ASM)
6092 2000-3000, 6092 4000 CDI, QA 3000, QA CDI 4000, MOBILE FACILITY TRAINING SYLLABUS, CDI SYLLABUS, RESPECTIVE QUALIFICATIONS FOR WORK CENTERS, WORK CENTER TEST
500
MOST CORROSIVE METAL IN REGARDS TO SALT WATER
LITHIUM
01-1A-509-1 / FIG 3-4
500
WHAT KIND OF DRILL BIT IS RECOMENDED FOR DRILLING TITANIUM
CARBIDE OR 8% COBALT DRILL BITS
500
HOW ARE RIVETS AGED TO T73 TEMPER
SOLUTION HEAT TREATMENT AT 875 °F. (01-1A-9 FIGURE 3-1)
500
WHAT COMPOSITION RANGE OF 2515 NICKEL ALLOY CAN BE SULFER
0-0.4%
500
THE DIFFERENCE BETWEEN BONDED AND BOLTED REPAIRS.
BONDED REPAIRS: MOST COMMON REPAIR WE USE WHERE A PATCH IS BONDED TO THE DAMAGE OF A PANEL. CAN STRENGTHEN SKIN WHILE REDUCING THE INTRODUCTION OF STRESS FROM DRILLING FASTENER HOLES. DISADVANTAGES ARE MATERIALS REQUIRING SPECIAL STORAGE, HANDLING, & CURING PROCEDURES, AND A RISK OF MOISTURE EXPOSURE DURING THE CURING PROCESS. (01-1A-21, 4-3c)
BOLTED REPAIRS: QUICKER AND EASIER THAN BONDED REPAIRS BUT ARE HEAVIER, NORMALLY USED ON SKINS THICKER THAN 0.125 INCH TO ENSURE PROPER LOAD TRANSFER. PROHIBITED ON HONEYCOMB PANELS DUE TO POTENTIAL MOISTURE EXPOSURE. (01-1A-21 4-3c).
500

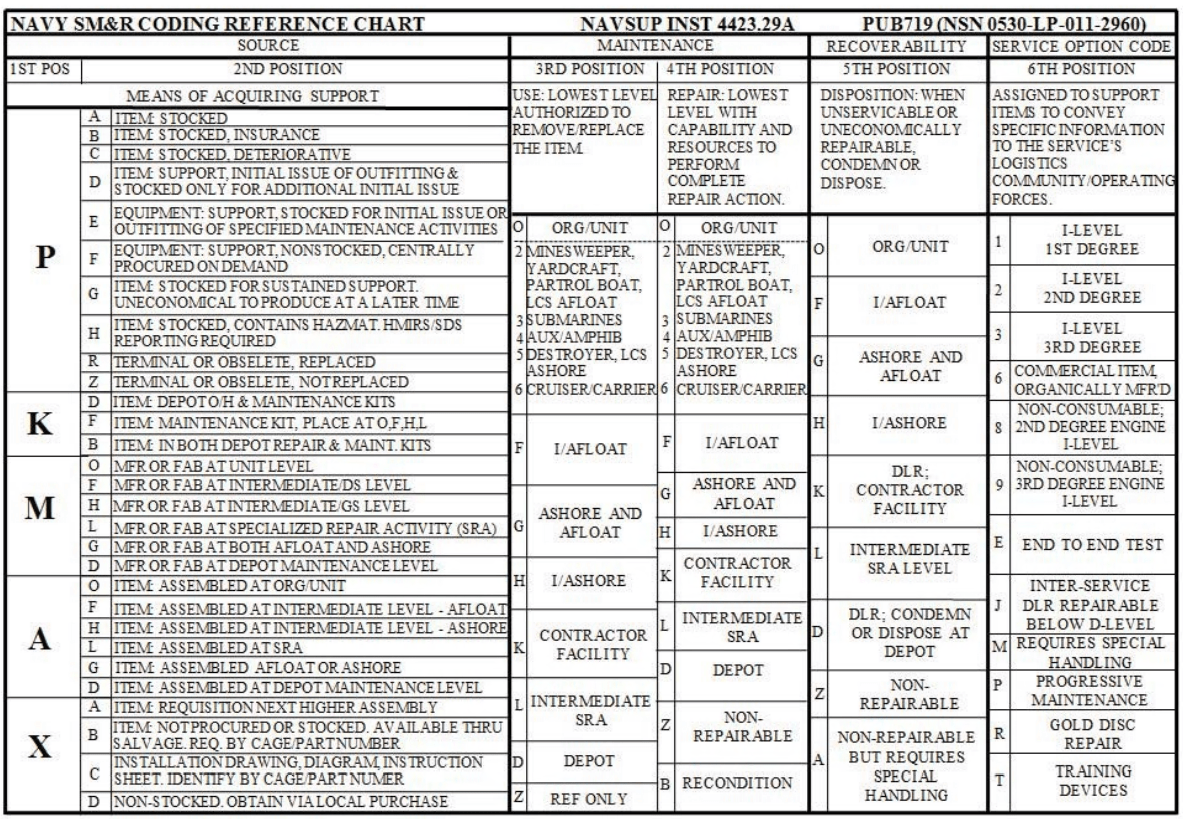

WHAT IS A SM&R CODE AND WHAT DOES EACH POSITION MEAN
A SERIES OF LETTERS IN A 6 CODE FORMAT THAT DETERMINES THE SOURCE OF THE PART, MAINENANCE ACTIONS FOR IT, RECOVERABILITY, AND SERVICE OPTION.
