Network Types
Network Hardware
Cable Types
Wireless
Landi Questions
100
Fast Ethernet works at *BLANK Mbps.
Gigabit Ethernet works at *BLANK Mbps
100mbps
1000mbps
100
What does an Ethernet switch use to forward frames to the correct destination?
MAC address
100
Your sick of paying verizon for TV services so you have decided to become a "cord cutter". You still want access to local stations so you went to bestbuy and purchased a HD antenna to connect to your TV.
Which type of coaxial cable connector would be used to make this connection?
F-type
100
The *BLANK of the AP’s radio is used as the basic service set ID (BSSID)
MAC address
100
A device that provides a connection between wireless devices and can connect to wired networks, implementing an infrastructure mode WLAN.
access point
200
RWU has several campuses/offices located in different parts of RI. Recently they have hired a network technician. What type of network will the technician most likely be working on?
Metropolitan Area Network (MAN)
200
This LAN device receives a signal on one port and forwards that signal only to the port where the destination device is connected.
Switch
200
What tool should you use if you need to trace the route that a Cat 6 UTP cable takes through the ceiling and walls of your building?
Tone generator
200
Which type of wireless technology increases bandwidth for a home wireless network by using multiple antennae for both the transmitter and receiver?
MIMO
200
What is the latest wireless frequency band?
The 6 GHz standard
This standard is even less effective at penetrating solid surfaces than the 5 GHz band, so therefore does not achieve the longer ranges of the 2.4 GHz and 5 GHz bands. However, it is much faster than both of the other bands. Since this is a newer band, there is typically less congestion, which results in a more stable and reliable connection.
300
This term refers to a network resource-sharing model that uses access control lists saved on each computer?
Peer-to-peer
300
How many hexadecimal digits are in a MAC address?
12 hexadecimal digits, each representing half a byte
300
A technician connects two network switches using a twisted-pair crossover cable.
Which of the following identifies the wiring standard required on each end of the crossover cable?
A) Both ends must only be T568A.
B) One end must be Cat 5 Ethernet, and the other must be T568B.
C) Both ends must only be T568B.
D) One end must be T568A, and the other must be T568B.
D) One end must be T568A, and the other must be T568B.
300
A network technician sets up the wireless network in such a way that each client device connects to the network via an access point (AP). What type of configuration is this?
Infrastructure mode
300
*BLANK is a peer-to-peer version of RFID
Near Field Communication is a peer-to-peer version of RFID. In other words, an NFC device can work as both tag and reader to exchange information with other NFC devices. NFC normally works at up to two inches (6 cm) at data rates of 106, 212, and 424 Kbps.
400
What is the purpose of a screened subnet in a network?
A) To facilitate direct communication between employees and external clients without restrictions
B) To strictly filter and monitor traffic between the private LAN and the public Internet
C) To allow internal LAN traffic only, without access to external networks
D) To allow unrestricted traffic between the private LAN and the public Internet
B) To strictly filter and monitor traffic between the private LAN and the public Internet
400
What is the purpose of uplink ports on a managed switch?
To connect to other switches, expanding the network
400
You are installing network cabling in the air space between the ceiling and the roof of a building. The cabling needs to be fire-resistant.
Which type of cabling should you use?
Plenum
400
Which wireless 802.11 standard can stream data at a rate of up to 54 Mbps using a frequency of 5 GHz?
802.11a
400
What are the first 24 bits of a MAC address known as?
What are the last 24 bits of a MAC address known as?
The first 24 bits are known as the Organizationally Unique Identifier (OUI). This identifies the manufacturer of the NIC.
The last 24 bits are known as the Network Interface Controller (NIC) Specific. This is a unique identifier for each NIC.
500
A technician is assisting the CISO in wirelessly transferring data between their smartwatch and their corporate PC. As the CISO's request uses two devices in close proximity, what network method has a limited range?
PAN
500
Which IEEE standard defines PoE as providing up to 13 W of usable power for devices like basic VoIP phones and wireless access points?
A) 802.3af
B) 802.3bt Type 3
C) 802.3at
D) 802.3bt Type 4
A) 802.3af
500
What is a mirror port on a network switch used for?
To copy frames from specific ports to a designated port for monitoring
500
The data transfer rate of 802.11 standards varies significantly.
What is the data transfer rate 802.11b?
What is the data transfer rate 802.11n?
What is the data transfer rate 802.11ac?
11 Mbps
600 Mbps
3.5 Gbps
500

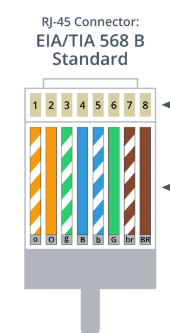

The EIA/TIA-568 standard defines two methods for terminating twisted pair: T568A/T568B.
What is the correct wire collor order for T568B?
HINT there are 8 pins in total. Pin 1 is Orange/White
