A
B
C
D
E
1

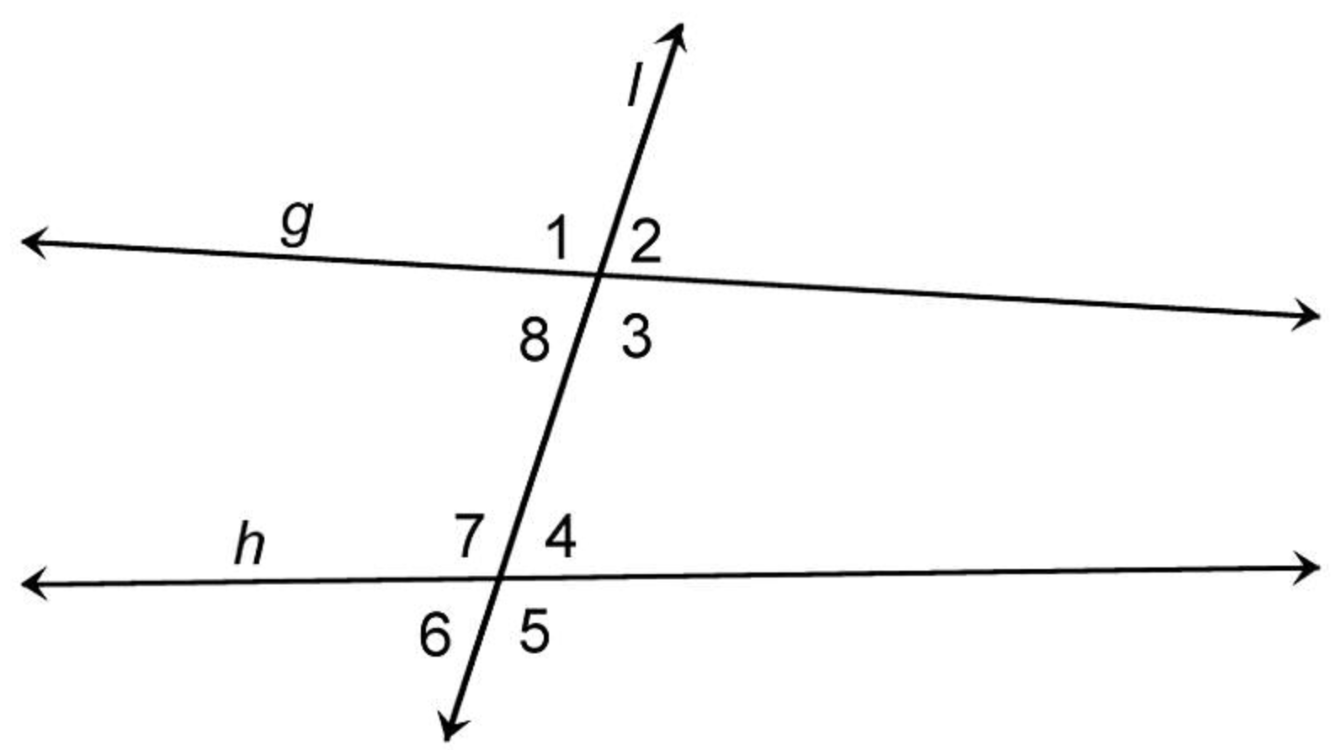

The relationship between \angle 8 and \angle 4 .
What is alternate interior angles?
1

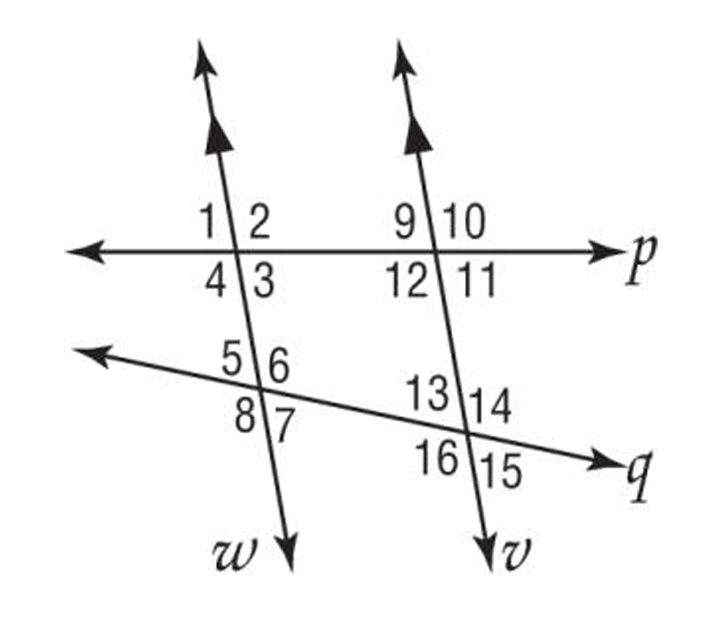

One pair of parallel lines and how you know?
What are w and v because they have arrows on the lines.
1
The transversal in the diagram.
What is l?
1
The angle measures you can figure out, given the measure of \angle 1
What are \angle 2 , \angle 3 , and \angle 8
1
What angle is an alternate interior angle pair to 4?
8
2
The relationship between \angle 1 and \angle 5 .
What is alternate exterior angles?
2
Angle 1= 70 degrees. Find the measure of angle 3.
2
The transversal forming \angle 9 and \angle 13
What is v?
2
m\angle 5 , given m\angle 4 = 25^\{circ}
What is 155^{\circ}
2
What is a correpsonding angle pair to 8?
4
3
The relationship between \angle 3 and \angle 5 .
What is corresponding angles?
3
The angle relationship and how the measures are related between \angle 1 and \angle 11
What is alternate exterior angles and congruent?
3

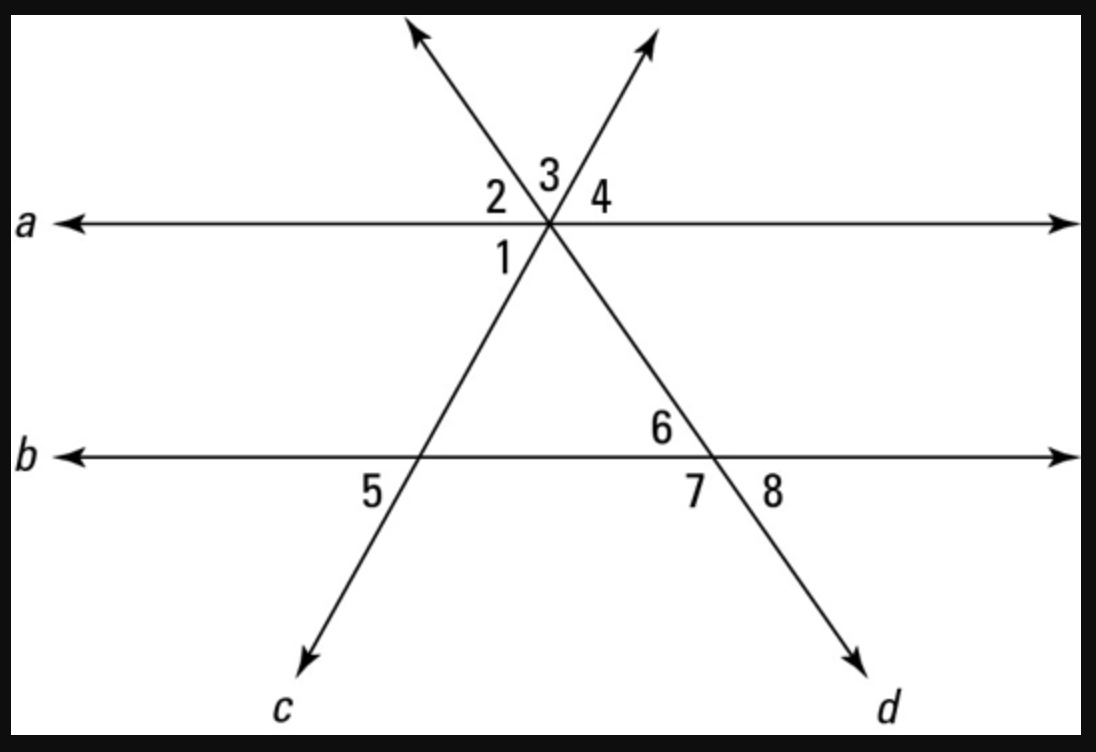

The transversal forming \angle 5 and \angle 1
What is c?
3

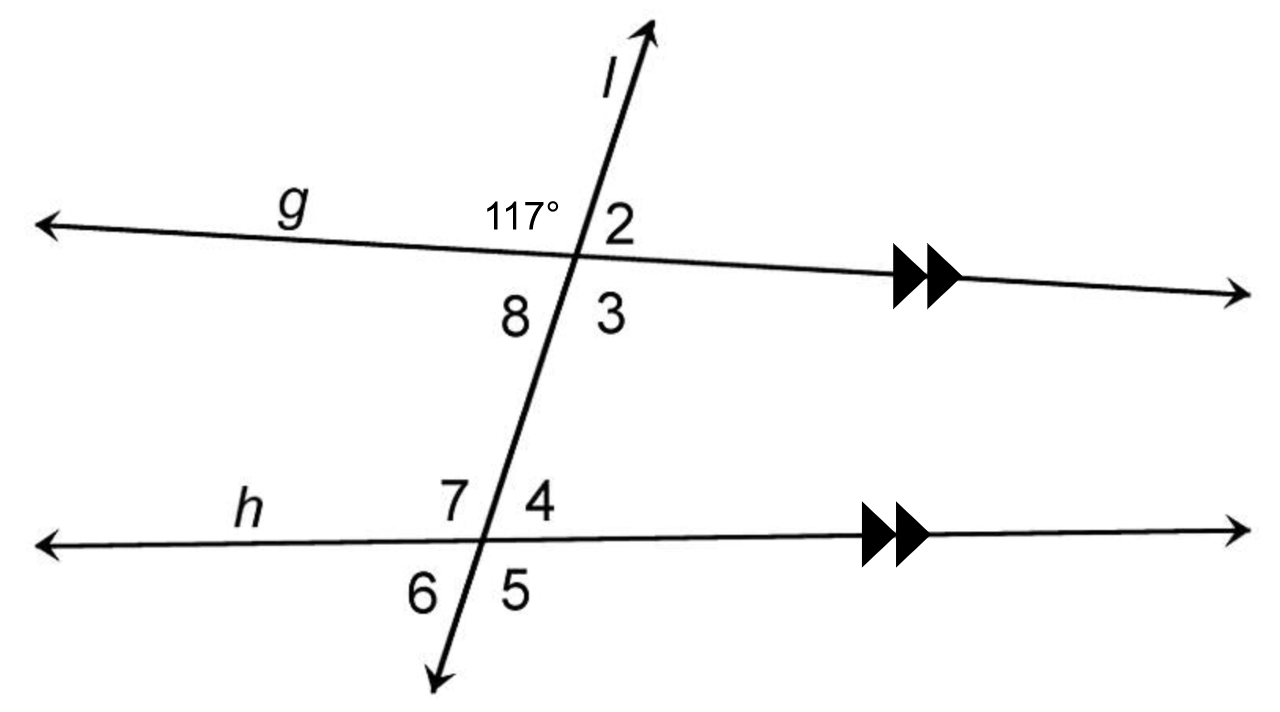

m\angle 5
What is 117^{\circ}
3
Alternate interior angle to 3
5
4
One example of consecutive interior angles.
What is \angle 8 and \angle 7 or \angle 3 and \angle 4
4
The angle relationship and how the measures are related between \angle 8 and \angle 15
What is consecutive exterior angles (same-side exterior angles) and supplementary?
4
How would you classify angles 6 & 7?
linear or supplementary
4
m\angle 6
What is 63^{\circ}
4
Corresponding angle pair to angle 13
5
5
Two examples of corresponding angles.
What are \angle 1, \angle 7 or \angle 8, \angle 6 or \angle 2, \angle 4 or \angle 3, \angle 5 ?
5
The parallel lines, given m\angle 4 + m\angle 5 = 180
What are p and q.
5
How would you classify angles 6 & 7?
linear or supplementary
5
m\angle 9 , given
m\angle 4 = 93^{\circ}
What is 87^{\circ}
5
Find the alternate exterior angle to 1?
11
