Battery 1
Battery 2
Battery 3
Battery 4
Battery 5
100
What is the typical service life of a car battery?
a) 1-3 years
b) 3-7 years
c) 7-10 years
d) 10-15 years
C
100
How many volt's do individual battery cells carry?
2.1 V
100
How many cells make up a regular 12.6V automotive battery?
6
100
A fully charged automotive battery should have a voltage of:
B) 12.6V
100
A vehicle that starts but then dies shortly after is most likely experiencing:
B) A failing alternator
200
During a load test, the voltage should NOT drop below:
9.6V
200
What solution is recommended for cleaning battery terminals?
Baking soda
200
Before using a DVOM, you should:
A) Check the meter fuse and leads
200
Why do some batteries have vent tubes?
To release gas safely out of the vehicle
200

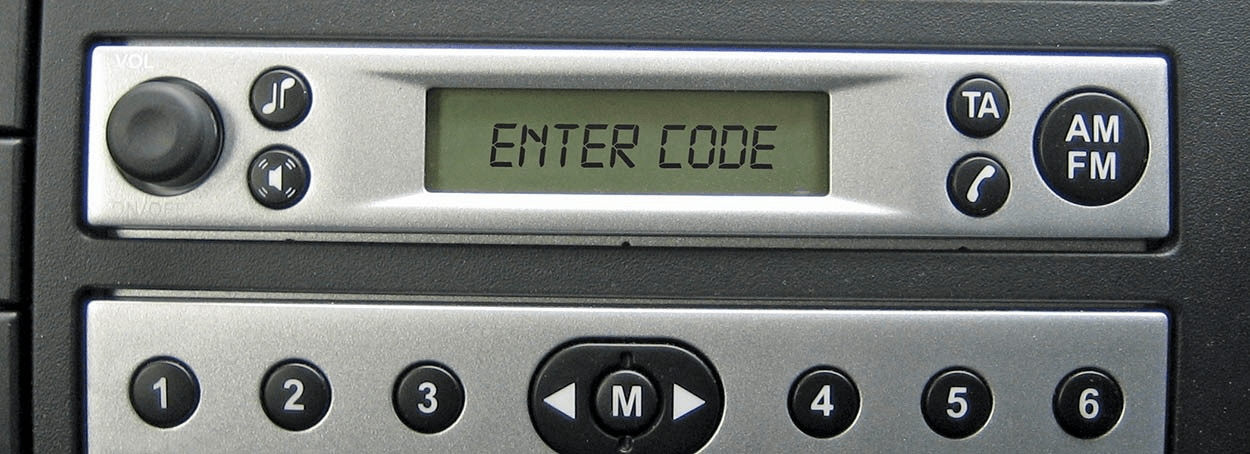

call dealer and get unlock code or use a memory keeper to prevent that
300
A battery load test is being performed on a 12 volt battery.
Technician A says that a good battery should have a voltage reading of higher than 9.6 volts
while under load at the end of the 15-second test. Technician B says that a battery conductance
tester is often used to load the battery to two times the CCA rating of the battery. Who is right?
A
300
Why do technicians disconnect the negative battery terminal first when servicing a battery?
Avoid, Shorts, Shocks, Damage, Because current flows from negative to positive
300
If a battery measures 12.28V, it is:
low
300
Which tool is useful for quickly checking voltage or ground in a circuit? usually has a green or red light to indicate power or ground)
Test Light
300
A phone charger not working in a vehicle may indicate:
A) A blown fuse
400
If an OBD2 scanner is not connecting, you should check:
C) The fuse box
400
If a DVOM reads "OL" when checking meter leads, it means:
B) There is a bad connection or an open circuit
400
What is "hot swapping" a battery and is it safe.
No, It may send voltage spikes through the system, damaging electronic components
400
What is AC, What is DC. Where is it found
Alternating Current - Alternators, Generators, Wall Outlets
Direct Current - Battery - Solar Pannels
400
What is an advantage of an Absorbed Glass Mat (AGM) battery?
It is spill-proof and maintenance-free
500
Provide the proper procedure for load testing a battery
1. Identify the proper _ _ _
2. Load 1 / _ of the _ _ _
3. Load for a duration of _ _s.
4. Voltage should not drop below _ _ v.
1. CCA
2. 1/2 of the CCA
3. 15s.
4. 9.6V
500

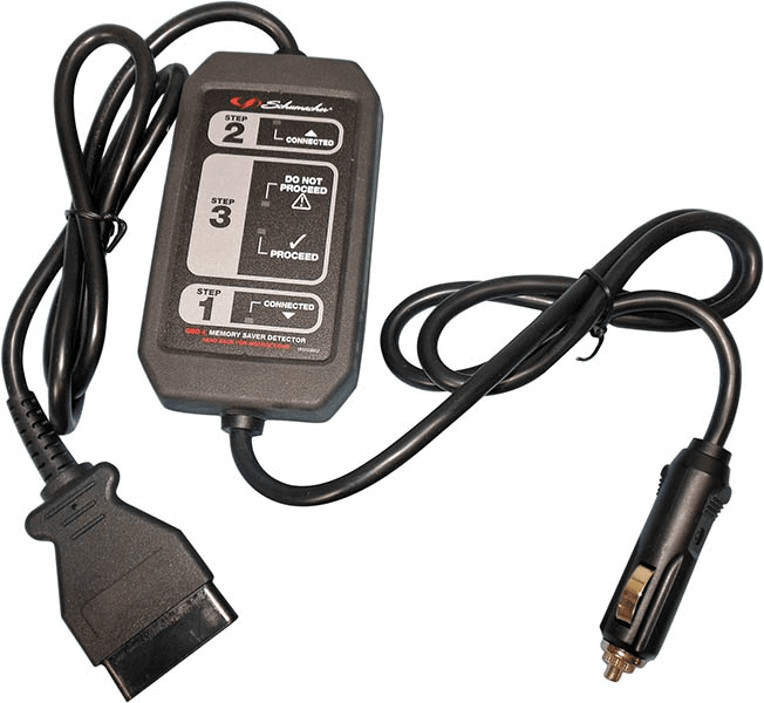

What is this and what is its purpose.
Memory Keeper. To prevent anti-theft features from activating and losing system memory
500
If a technician measures a battery at 10.5V, what does this indicate?
The battery has a dead cell and likely needs replacement
500
What is CCA and at what temperature is this rating recorded at?
The voltage a battery can produce at 0°F (-18°C)
500
What is a sulfated battery?
Battery builds a sulfur layer on the plates that no longer allow it to charge properly.
