L1: Basic Geometric Figures and Segment Addition Postulate
L2: Segment and Angle Properties
L3: More Angle Relationships
L4: Parallel Lines Cut by a Transversal
100
Draw a ray.
One endpoint and one arrow
100
What is a midpoint?
A point in the middle of a segment that makes two equal or congruent segments.
100
What are complementary angles?
Two angles who add up to equal 90.
100

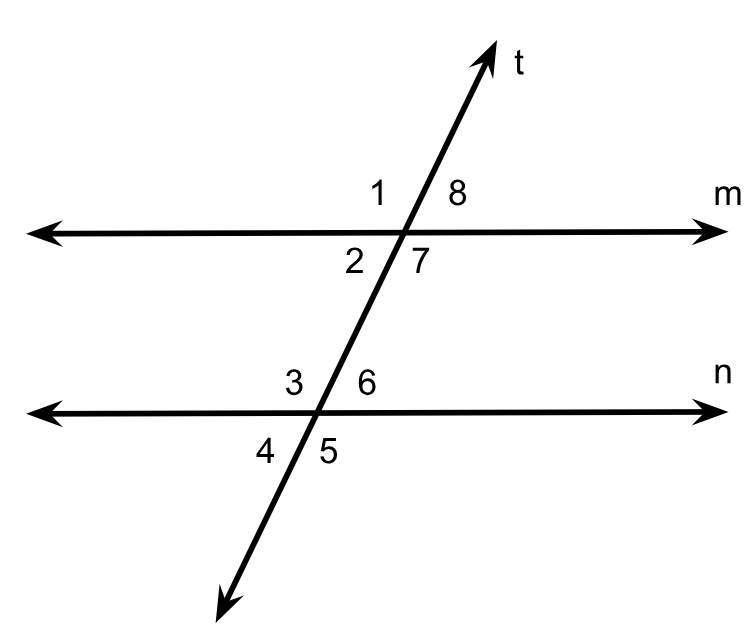

Lines m and n are parallel. Name a pair of alternate interior angles
<2 and <6 or <3 and <7
200
What is the difference between a line and a line segment?
A line goes on forever and a line segment has endpoints.
200

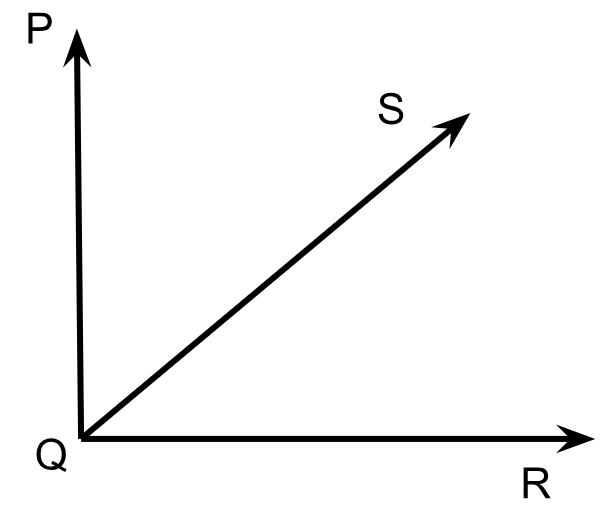

<PQR is a right angle and ray QS is bisecting <PQR. What is the value of m<PQS.
45 degrees
200

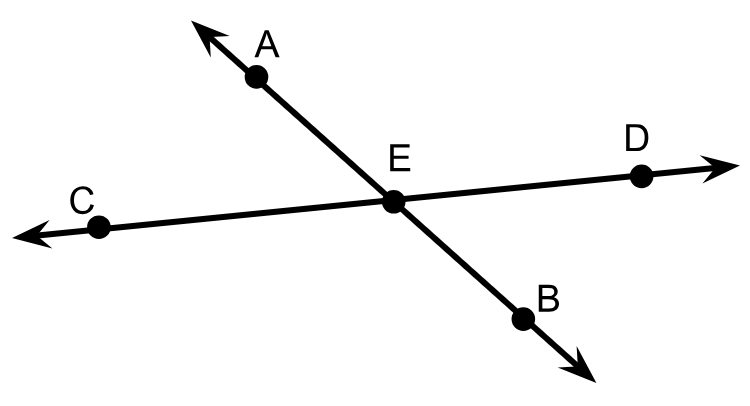

Lines AB and CD intersect at point E. If m<AED=172, what is the m<DEB?
m<DEB=8
200
Lines m and n are parallel. Name a pair of same side interior angles.
<2 and <3 or <6 and <7
300
Give me 2 different ways to write line CD?
Examples: line CE, line DE, line CED, line DEC
300
If ∠ABC is a right angle, find the value of x.
x=4
300
What are supplementary angles?
Two angles that add up to equal 180.
300
Lines m and n are parallel. Name a pair of alternate exterior angles.
<1 and <5 or <4 and <8
400
What is another way to write ray BE?
Ray BA
400
What is a segment bisector?
A line or ray that splits a segment into two congruent segments.
400
Lines AB and CD intersect at point E. If m<AEB=6x+2 and m<BED=8x-12, what is the value of m<CEB.
112
400
Lines m and n are parallel. Name all pairs of vertical angles.
<1 and <7, <2 and <8, <3 and <5, <4 and <6
500

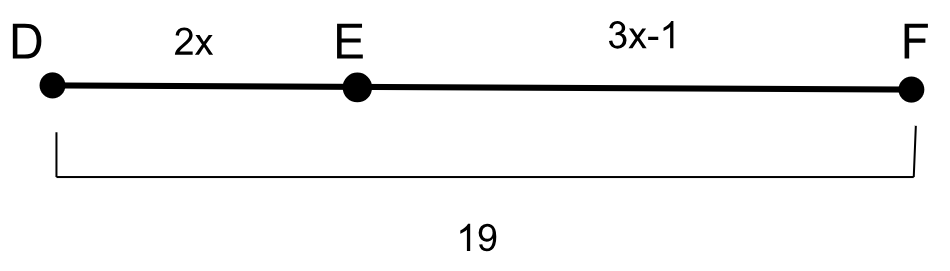

What is the value of segment DE?
8
500
Draw segment ABC on your whiteboards where B is the midpoint. Make segment AB = 2x+4. Make your own equation for segment BC (that is different from AB) that will make segment AC=48.
x=10 so some equation where if x=10, the answer is 24 that is not 2x+4. Some examples are x+14, 3x-6, 4x-16, etc.
500
What is a linear pair?
Two adjacent angles that are supplementary.
500
Lines m and n are parallel. Name all pairs of corresponding angles
<1 and <3, <2 and <4, <8 and <6, <7 and <5
