Congruence Statements
Congruence Problems
Transformations
Rotate/Reflect Rules
Translations
Supplimentary
100
Draw the symbol we use for congruence.
~=
100
Solve for x.
x=41
100
Name the rigid transformations
Rotations, Reflections, and Translations
100
If a pre-image has a point located 5 units to the left of a line of reflection, what can you tell me about that point once the figure is reflected over that line of reflection?
It is 5 units to the right of the line of reflection
100
What is a translation in Geometry?
A translation is a transformation that slides every point of a shape the same distance
100
What do we know is true about Supplementary angles?
They will add up to 180 degrees every time
200
What does the word congruent mean?
Same shape, same size.
200
Given that the two triangles are congruent, solve for x.
x=7
200
Fill in the blank:
200
If the point (1, 2) is rotated 180° around the origin, where is the new position?
(-1,-2) (You have to negate the x and y but DO NOT SWITCH THEM
200
What is the new point when (2, 3) translated by 5 units to the right and 2 units up?
(7,5)
200
What is the measure of the supplementary angle adjacent to one that is 80 degrees?
100 degrees
300
IK
300

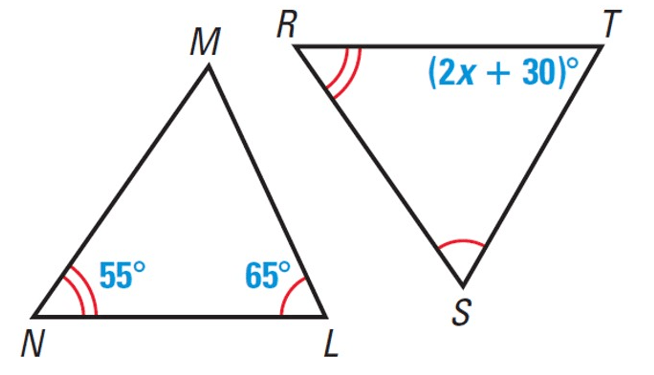

Given that the two triangles are congruent to each other, solve for x.
x=15
300
What are the directions we can rotate a shape?
Counterclockwise or Clockwise
300
What is an equivalent rotation to 120 degrees clockwise?
240 degrees counterclockwise
(they must add to 360 degrees)
300
Explain what you do when your original figure (X,Y) undergoes the translation (X - 7, Y + 2)
Shift all points of your figure 7 units left and 2 units up
300
If one of two supplementary angles is acute, what does the other have to be?
Obtuse
400
Given the two triangles below, finish the congruence statement:
triangleCAB~=
triangle CAD
400

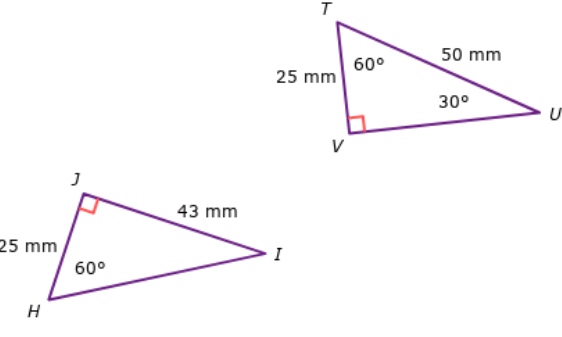

What is the perimeter of triangleTUV ?
The perimeter is 118 mm.
400
Fill in the blank:
The image and pre-image are always _____________ to each other under rigid transformations.
Congruent
400
If a pre-image exists in Quadrant 1 of a coordinate grid, where will the image be after a 90 degree rotation clockwise?
Quadrant 4
400
Write the algebraic representation of a translation that moves point (x, y), right 2 units and down 4 units.
(x, y) → (x + 2, y - 4)
400
One angle has a measure of 10x + 40 degrees. The supplementary angle measures 50 degrees. What is the value of x?
x = 9
500
angleR
500
Triangle MAN has the 3 given angles
∠M = 6y + 10
∠A = 11y - 30
∠N = y + 20
What is the value of y?
y = 10
500
What is the word used for a line intersecting a system of lines
Transversal
500
A point (-2, 5) exists on a plane. If it is reflected over the y-axis, what are the new coordinates of the point?
(2, 5)
Negate the x value when reflecting over the y axis
500
The point (4, -3) needs to move to Quadrant 1. Give me a translation to move the point into Quadrant 1
Anything that gives a positive x and y value in the end
500
THIS BOX IS A FREE 200 POINTS FOR YOUR TEAM
CONGRATULATIONS
