Electric
Electric
Electronics
Schematics
And Such
100
Connector Color Codes
Red, Blue, Yellow
100

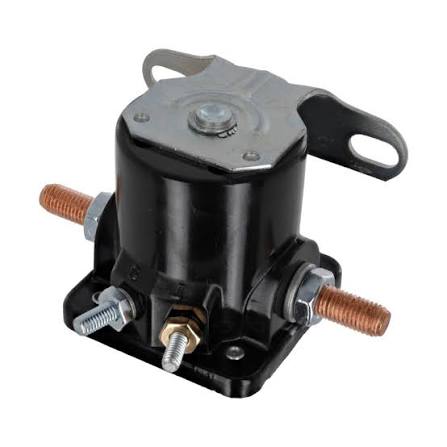

This is a....
Starter Solenoid
100
Two compounds that make up electronic semi conductors
Silicon and Germanium
100
This shows what?
Total amps and individual resistances
100
Who is the current Secretary of War?
Pete Hegseth
200
Connector Color Code Sizes
Red=16-22
Blue=12-14
Yellow=10
200
Sends signals to the ECU to monitor wheel lockup
Wheel Speed Sensor
200
Number of electrons in a semi conductors valence ring
4
200
Identify this
Series Parallel Circuit
200
Who did President Trump recently say was the hardest country to do business with?
Canada
300

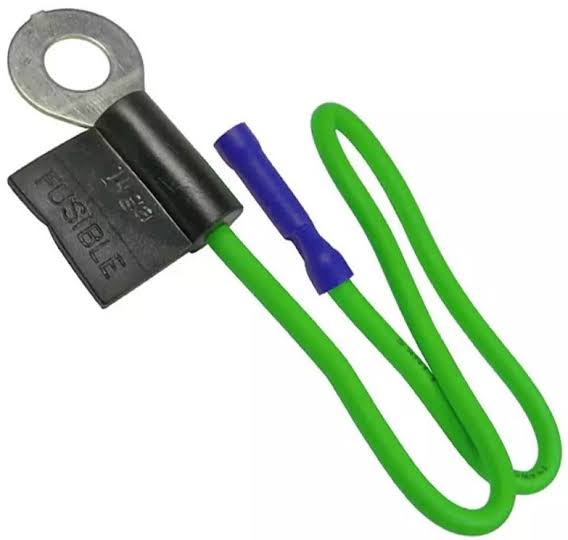

This is a .......
Fusible Link
300
First Gen Diagnositcs
OBD1
300
What is this?
A resistor
300
What's the total resistance and total amps?
.5 amps
300
What is President Trumps middle name?
John
400
This is specifically (exact) a .....
Barrel Fuse
400
What two things happen when the ignition switch closes in the start position?
1 Contacts close and energize the starter motor
2 The pinion gear engages with the ring gear
400
What's the acronym for this?
DMM
400

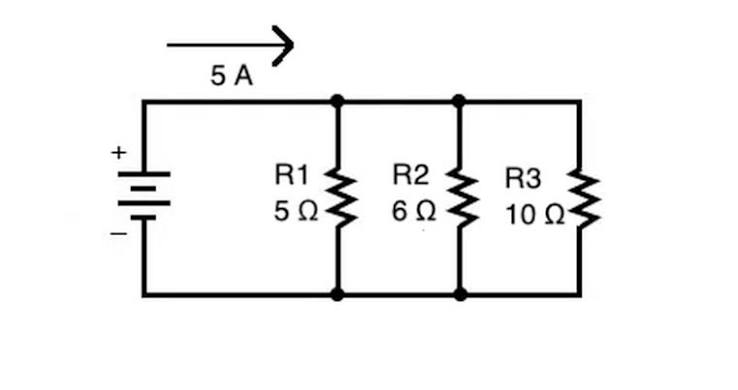

What's the total volts and amps?
25 Volts
10.7 amps
400
What country has the most rich and largest oil reserve?
Venezuela
500
This is what specifically?
Blade Fuse
500
Latest Gen Diagnostics
OBDII
500
Full Wave Bridge Rectifier
500
What does this identify?
Short circuit in a schematic
500
What state has the hottest temperatures recorded in history?
California = 134 degrees F.
