Semiconductors
Diodes
Rectifiers
Transistors
Amplifiers
100
The electrons in the outermost shell of an atom
What are valence electrons?
100
The common voltage drop of a diode.
What is 0.7V?
100
The purpose of a rectifier
What is turning AC voltage in DC voltage?
100
The lead of a transistor which controls the amplified current
What is Base?
100

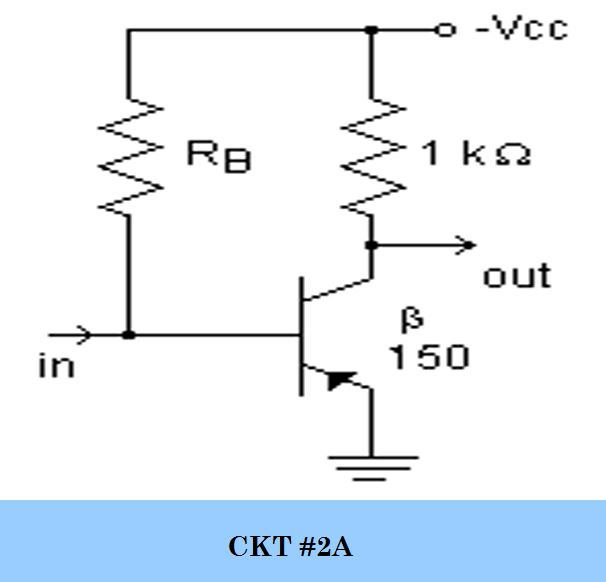

The type of transistor used in this amplifier.
What is an NPN BJT transistor?
200
A common semiconductor material
What is Silicon or Germanium?
200
The bias of a diode when positive voltage is connected to the N-type junction side.
What is reverse bias?
200

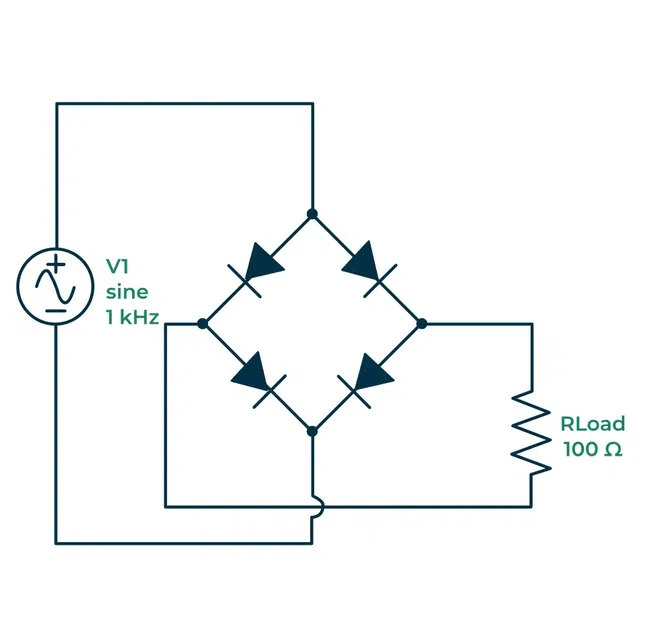

The output voltage of this rectifier if V1 = 20 VAC
What is 18 VDC?
200
The voltage you read from Collector to Emitter when a transistor is in saturation (VCE)
What is 0 V?
200

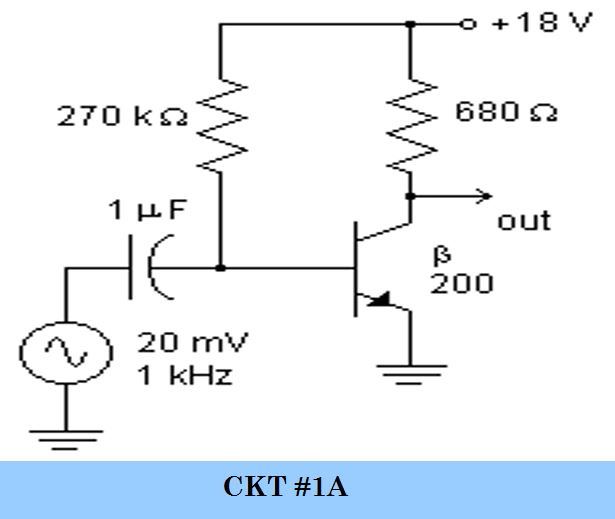

The q-point voltage of this amplifier (round to a whole number)
What is 9 VDC?
300
The definition of a positive temperature coefficient
What is when temperature increases, resistance increases?
300
A special diode with a specific, relatively low breakdown voltage
What is a zener diode?
300
The result of a transformer with half its coils shorted out due to a damage in its insulation.
What is decrease in output voltage & increase in operating temperature?
300
The lead of a transistor which always has the largest current
What is emitter?
(Note: Collector & Emitter are basically equal)
300

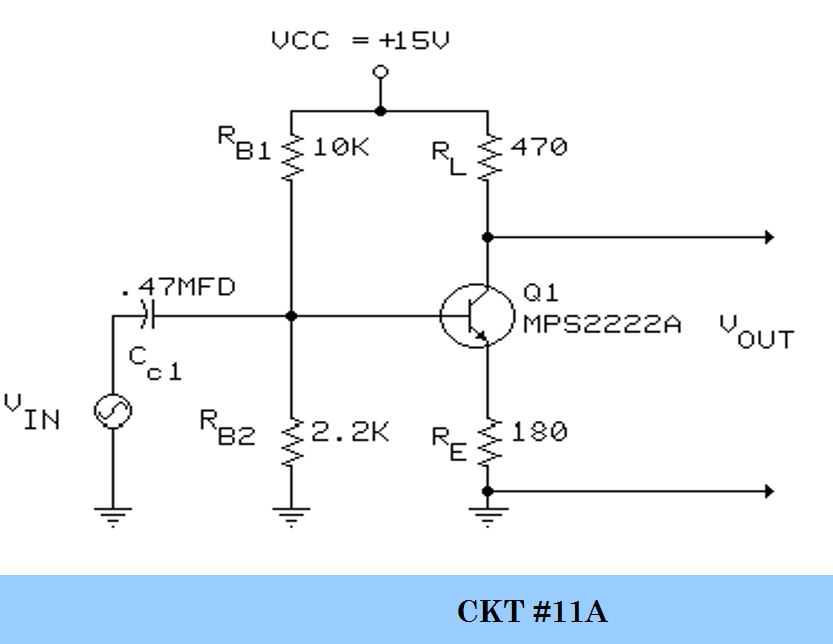

The operating voltage (Vout) of this thermally stable amplifier. (Answer to 1 decimal place.)
What is 9.8 V?
