Intersection of Points,Lines,&Planes
Midpoint/Distance
Describing/Measuring Angles
Segment/Angle Addition
Perimeter/Area
Naming Points, Lines, and Planes
100
Two lines intersect at a _____________.
What is a point?
100
Find the midpoint of (2,5) and (4,1)
(3,3)
100

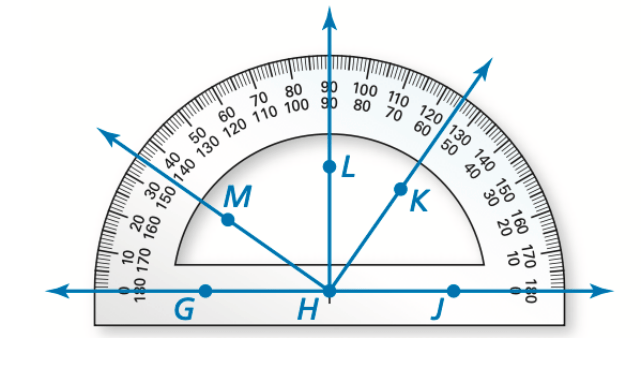

Name an Angle that is a right angle using the image with a protractor.
/_ GHL, /_JHL, /_MHK
100
Sole for TU.
TU = 12 units
100
To find the perimeter, you must _________ all the sides.
Add
100
Use the figure below to name a Line in 2 different ways.
n, Line EB, Line BF, Line FE
200
Two planes intersect at a _______________.
What is a Line?
200
Find the distance of (4,-7) and (-4,1)
sqrt(128)
200
Name a straight angle using the image with the protractor.
/_ GHJ
200
If AB = 27 and BC = 13, find AC.
What is 40?
200
Concave or convex?
Convex
200
Use the figure below to name a ray in 2 different ways.
Ray BF and Ray EF or Ray FB and Ray FE
300

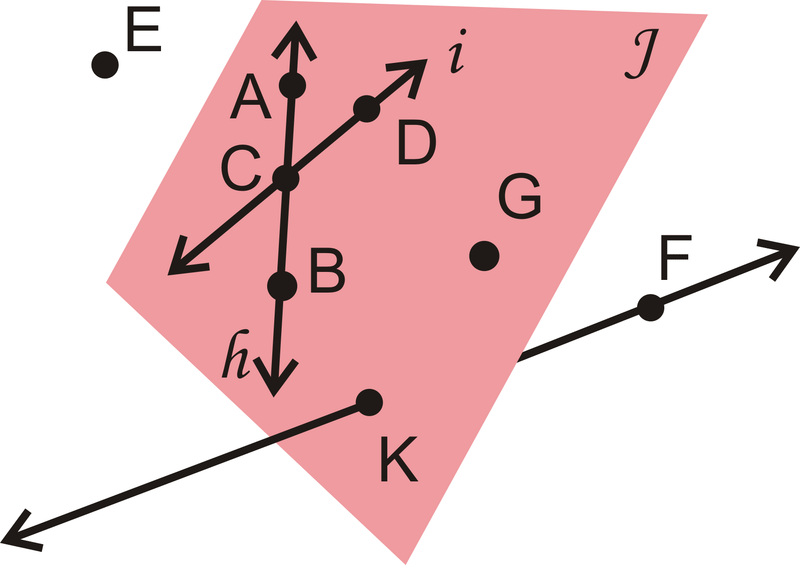

Where line i intersects line h.
What is point C?
300
Find the other endpoint if one endpoint is (3,-8) and the midpoint is (11,2)
What is (19,12)?
300
Using the figure below, name a pair of supplementary angles.
/_ EOB and /_ EOD, /_ COD and /_ AOD, /_ AOE and /_ COE
300
13. Find m<WDC if m<EDC=162° and m<EDW=73°.
m/_WDC = 89^o
300
Concave or convex?
Concave
300
Use the figure below to name a Plane in 2 different ways.
Plane C, Plane GEB, Plane GEF, Plane GBF
400
Using the figure below, name the intersection of Plane HGE and Plane ADH
What is Line EH?
400
State the Midpoint Formula.
((x_1+x_2)/2, (y_1+y_2)/2)
400
Name a pair of Vertical Angles using the figure below.
/_ AOB and /_ DOC
400
Find m ADC given that m ADB is 34° and DB bisects ADC.
m/_ADC = 68^o
400
Find the Area of the Quadrilateral.
53 Units2
400
Use the figure below to name a segment in 2 different ways.
BE, BF, EF
500
Using the Figure Below, Name a point that is NOT on Plane J.
What is point E? or What is point F?
500
State the Distance Formula
d = sqrt((x_2 - x_1)^2 + (y_2 - y_1)^2)
500
Name 2 Complementary Angles using the figure below.
/_ DOC and /_ DOE
500
M is the midpoint of PQ. PM=14x+16 and MQ=10x+40. Find the value of x and PQ.
(PQ, MQ, and PM are segments on line PQ)
X=6 and PQ=200
500
Find the Perimeter of the Quadrilateral.
29.1 Units
500

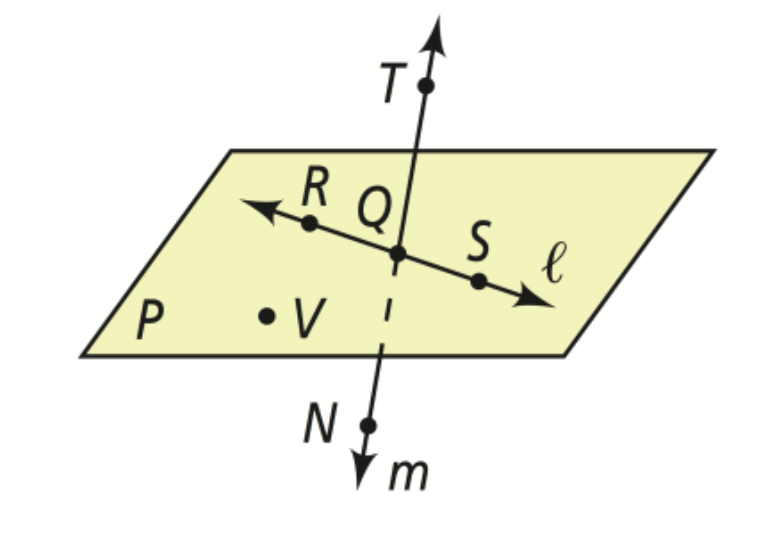

Another name for line RS
RQ, QS, l
