Points, Lines, and Planes
Measuring Segments
Measuring Angles
Exploring Angle Pairs
Random
100
Name three ways to name line l
UB, UH, BH, HB, HU, BU
100
If T is at -5 and S is 43, find the measure of TS.
48
100

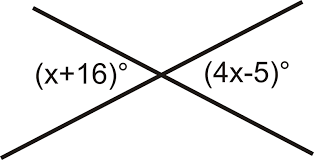

 Find the measure of x


x = 7

100
What is the name of an angle pair where the angles are opposite of each in an X and are congruent?
Vertical angles
100

Opposite rays are ....

Rays that share an endpoint and extend in opposite directions (on a line)

200
Name the plane DOUBLE MONEY
S BHE UBE EUB EBH
200
Points A, B and C are collinear and Point B is between A and C. AC=16+x, BC=10, and AB=2x+10. Find AB.
2
200

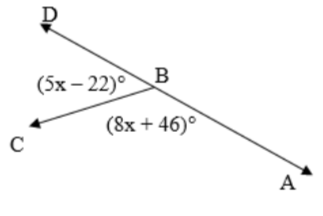

 Find the measure of x


x = 12

200
Solve for x
24
200

A plane is made up by ...

3 noncollinear points

300

DOUBLE MONEY!!!



Are D, F and H collinear, coplanar, both or neither?

Coplanar- not collinear

300
Points A, B and C are collinear and Point B is between A and C. AB=2x-3, BC=3, and AC=x+6. Find AC.
12
300

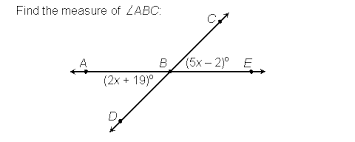

 Find the measure of angle ABC


147 degrees

300
Solve for b
34
300

A plane and a line intersect at ...

one point

400
Name the bottom plane
DCF CFG GCD
400
Points A, B, C, and D are collinear and positioned in that order. Find the length indicated. Find BC if CD=10x+48, AD=10x+170, BC=9x+65 and AB=57.
BC=65
400
DOUBLE MONEY Angles A and B are complementary. Angles A and B are also congruent. Find the measure of angles A and B.
45 degrees.
400
11
400

 two planes intersect at ...

one line

500
Name the intersection of the planes
Line n
500
Points A, B, C, and D are collinear and positioned in that order. Find AB if BC=72, AB=12x-239, CD=4x-78 and AD=10x-95
61
500
Angle ABD and Angle ABC are supplementary. Angle ABD measure x+20 and Angle ABC measures x+6. Find x.
77 degrees
500
In a pair of vertical angles, one angle measures 5x+12 and the other angle measures 6x+2. Find the measure of the angles.
62
500

two angles that add up to 180 are called _____________ or a _____________________

supplementary or a linear pair
