Design Process
Statistics
Measurements
Modeling Skills
Geometry of Design
100
Generating a large quantity of ideas for a solution to a problem
What is Brainstorming?
100
The "Mode" for the following population data:
85, 21, 36, 26, 29, 22, 42, 66, 15, 15, 21, 22, 22, 29, 36, 42, 66, 85
What is 22?
100
The kilometer equivalent of 7423 meters
What is 7.423 kilometers?
100
A feature that rounds off or caps interior or exterior corners or features of a part
What is Fillet?
100
A physical property calculation of 5 lbs/in3
What is Density?
200
These are all examples of...
• Must be made out of 4 to 6 pieces
• Must be "interlocking"
• Part cannot extend more than 3 units in any direction
• No two parts can be the same
What are Constraints?
200
The "Median" for the following population data:
85, 21, 36, 26, 29, 22, 42, 66, 15, 15, 21, 22, 22, 29, 36, 42, 66, 85
What is 29?
200
The equivalent of 7.423 x 10-3 meters
What is 7.423 millimeters?
200
A small angled surface formed between two surfaces
What is Chamfer?
200
A physical property calculation of 37.28 in3
What is Volume?
300
This document includes:
- Client
- Problem statement
- Design statement
- Constraints
What is a Design Brief?
300
The percentage of scores within +/- 3 standard deviations of a sample distributed normally with a mean of 22 and a standard deviation of 3.
What is a 99.8%?
300
The image below shows what type of tolerance?
What is Bilateral?
300
Construct a copy of a solid part specifying a reference line
What is Mirror?
300
The amount of force acting on a given amount of matter
What is Weight?
400
This part of the design process includes:
- Identification
- Validation
- Justification
What is Defining the Problem?
400
The percentage of scores within +/- 2 standard deviations of a sample distributed normally with a mean of 22 and a standard deviation of 3.
What is 95%?
400
The metric equivalent of 13 ft3 to three significant figures
What is 368.27 Liters?
400
Repeat a solid feature in a rectangular array, you specify directions, distance and number of repetitions
What is Rectangular Pattern?
400
The calculation of 6s2
What is Surface Area?
500
A systematic problem-solving strategy, with criteria and constraints, used to develop many possible solutions to solve a problem or satisfy human needs and wants and to winnow (narrow) down the possible solutions to one final choice.
What is the Design Process?
500
The percentage of scores within +/- 1 standard deviation of a sample distributed normally with a mean of 22 and a standard deviation of 3.
What is 68%?
500
The metric equivalent of 135 in3 to three significant figures
What is 2.213 Liters?
500
The creation of or modification to a three-dimensional form using Extrude, Circular Pattern, or Constrain
What is Feature?
500

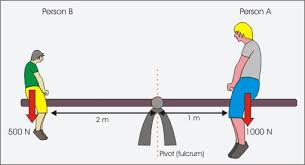

The total moment force acting on the fulcrum of the image below
What is 0 Newton Meters?
