Calculating SVA
SVA Graphs
Calculating FMA
Miscellaneous Newton's laws #1
Miscellaneous Newton's laws #2
Final Jeopardy Question
100
State the formulas needed for the following terms:
Speed, Distance, & Time.
S=D/t
D=SxT
T=D/s
100
What kind of motion graph is this? How do you know?
Speed graph. It shows distance over time.
100
What formula represents Newton's 2nd law of motion?
F=ma (or a=F/m)
100
According to Newton's 1st law of motion, what is the only thing that can cause an object to accelerate?
An unbalanced force.
100
According to Newton's 3rd law of motion, "For every action force, there is an..."
Equal and opposite reaction force.
200
A car travels a distance of 450 kilometers in 3.75 hours. What is its speed in kilometers per hour?
120 km/h
200
What kind of motion is this graph depicting?
Acceleration (positive)
200
An object has a force of 40N applied to it, which makes it accelerate at a rate of 5m/s2. How much mass does the object have?
8 kg
200

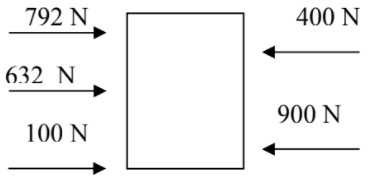

What is the net force acting on the box above?
224 N to the right
200
Action: A frog jumping
What is the action force?
What is the reaction force?
Action force: The frog pushes down on the ground.
Reaction force: The ground pushes the frog up.
300
If a car is traveling at a constant speed of 110 kilometers per hour (km/h), how many hours will it take for the car to travel a distance of 350 kilometers?
3.18 hrs
300
According to the graph, between 2 and 4 seconds the ball was...(describe it's motion)
Not moving/at rest.
300
An object accelerates 5m/s2 when a force of 20N is applied to it. What is the mass of the object?
4 kg
300
Action: Swimming
What is the action force?
What is the reaction force?
Action force: Swimmer pushes the water backwards
Reaction force: The water pushes the swimmer forward.
300
What is inertia?
The tendency of an object to resist a change in it's motion (to resist acceleration).
300
How long would it take a basketball travelling 2.25 m/s, to travel 4.6 meters when shot from the free-throw line?
2.04 seconds
400
A car is displaced 80 kilometers to the west after 30 minutes of driving. What is its velocity in kilometers per hour?
160 km/h west
400

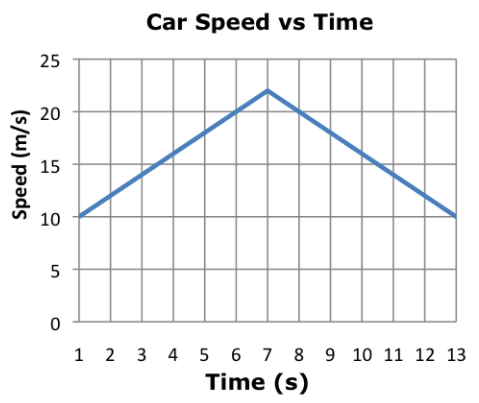

The graph shows the speed of a car traveling east over a 12 second period. Based on the information in the graph, it can be concluded that in the first 6 seconds, the car is...(describe it's motion)
Accelerating/speeding up
400
How much would a 425 gram soccer ball accelerate if 3.4N of force were applied to it?
8 m/s2
400
Action: Rocket flying
What is the action force?
What is the reaction force?
Action force: the rocket pushes the exhaust downwards.
Reaction force: The exhaust pushes the rocket up.
400
Which lettered segments in the graph above represent moments when the object had balanced forces applied to it?
A, B, C, & D (All of them)
500
A bike travels a distance of 275 meters in 2.5 hours. What is its speed in meters per second?
0.03 m/s
500

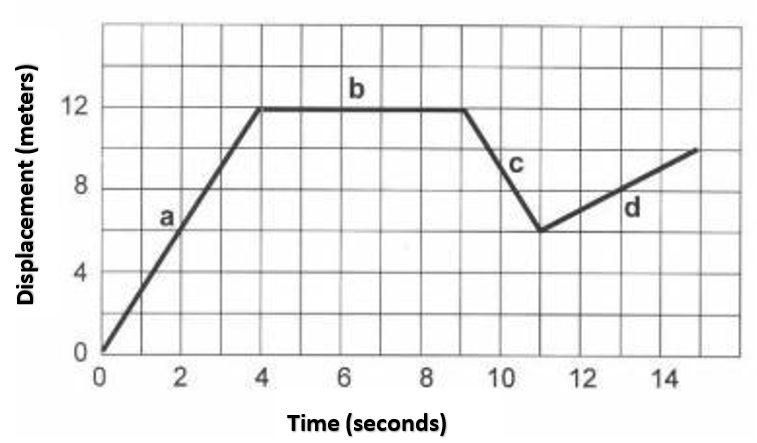

The graph above shows the motion of a soccer ball after the goalie kicks it away from his goal. Determine the velocity of the ball during segment "a".
3 m/s away from the goal.
500
A pitcher wants to accelerate a 145 gram baseball at a rate of 265 m/s2. How much force must he use?
38.43 N
500
Using physics terms, explain why small children have to use lighter bowling balls than adults if they want to throw the ball at the as fast as them.
They can't apply as much force as the adults do, so they need a ball with less mass to be able to accelerate it at the same rate.
500
Using physics terms, explain how the picture above relates to Newton's 1st law of motion. (For example: explain where the balanced/unbalanced forces are coming from/going)
When the bike hit the wall, the wall applied an unbalanced force to it, which accelerated it rapidly to 0mph, but the wall did not apply any unbalanced force to the driver, so he continued at the same velocity as when he hit the wall.
