Mirror Types
Lens Types
Images - Orientation and Size
Real vs. Virtual
Diagrams
100
What do we call a mirror that curves outward like the back of a spoon?
Convex mirror
100
What do we call a lens thicker in the middle than at the edges?
Convex lens
100
What word describes an image that is flipped upside down?
Inverted
100
A virtual image is always ____________.
Upright
100
Is this a mirror or lens? Is it concave or convex?
Concave mirror
200
What type of mirror is used in makeup mirrors because it can magnify?
Concave mirror
200
What type of lens always spreads out (diverges) light?
Concave lens
200
What does it mean if an image is magnified?
The image is larger than the object
200
A real image is always _______________.
Inverted (upside down)
200
Is this a mirror or lens? Is it concave or convex?
Convex lens
300
Which mirror ALWAYS produces an upright, smaller image?
Convex mirror
300
A projected, inverted image must be produced by what type of lens?
Convex lens
300
An object is far away from a concave mirror. Is the image upright or inverted?
Inverted
300
A real image can be projected onto a ___________.
Screen
300
Draw a diagram of parallel light rays entering a concave lens.
400
What happens to parallel rays hitting a concave mirror?
They converge to a focal point
400
Convex lenses act similarly to what type of mirror?
Concave mirrors
400
An object is far away from a convex mirror.
A) Is the image upright or inverted?
B) Is the image smaller or larger than the object?
A) Upright
B) Smaller
400
Can a concave lens produce a real image?
No!
400

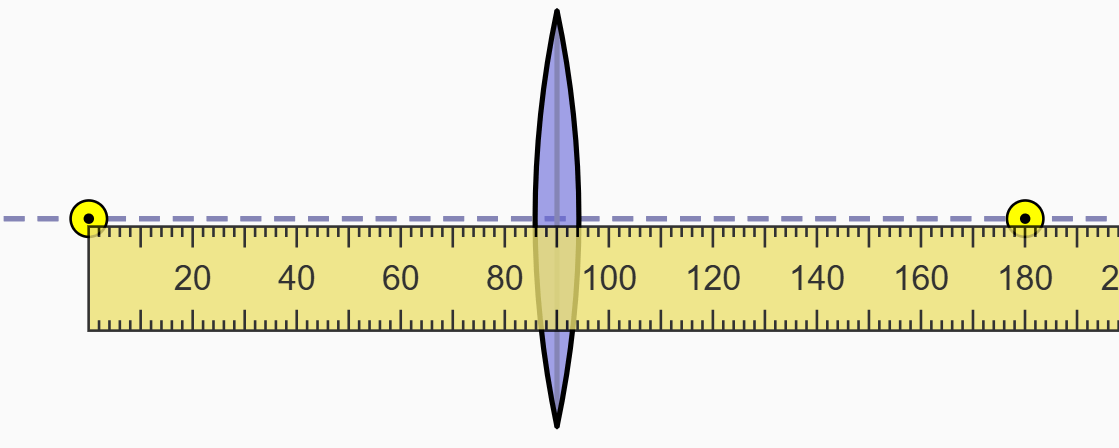

What is the focal length?
Focal length = 90
500
A concave mirror forms an inverted, smaller image. Where must the object be placed?
Past 2 focal lengths from the mirror's surface.
500
A student looks through a lens and sees the object enlarged and upright. What must be true about the lens and object location?
It’s a convex lens with the object inside the focal length
500
A convex lens makes an inverted image that is magnified. Where is the object?
Between one and two focal lengths from the lens.
500
A convex lens forms a virtual image only when the object is where?
Inside the focal length
500
Draw a diagram of parallel light rays passing through a convex lens. Identify the focal point on your diagram.
