Quality Assurance
Pump Repair
Gears and Gear Cutting
Indexing
Milling Machine
100
What are the 5 required elements of a formal work package?
What are "material, initial conditions, procedure, test and inspection, and system restoration?
100
Most pump repairs will be performed on these types of pumps
What is a "centrifugal pump?"
100

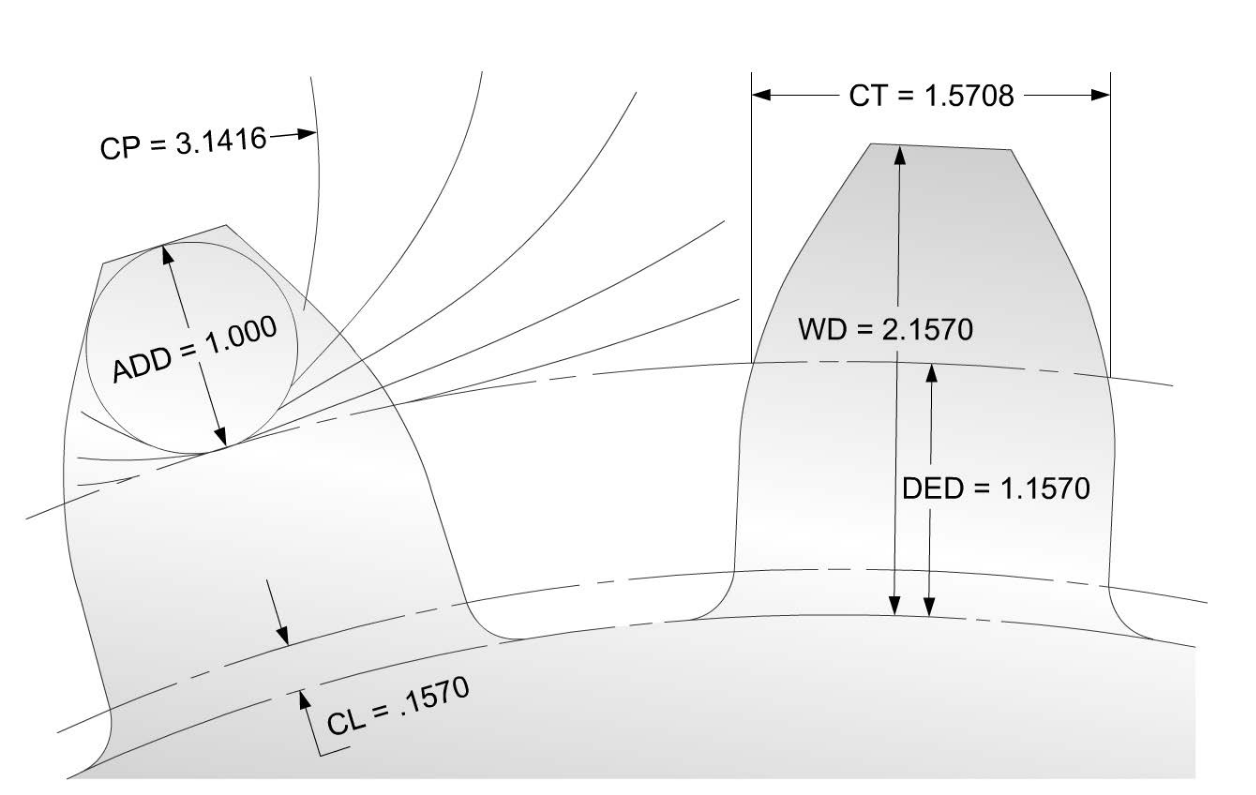

On a spur gear, this can be measured from the top of the tooth to the pitch line
What is the "Addendum?"
100
Indexing can be described in this way.
What is "precision rotation?"
100

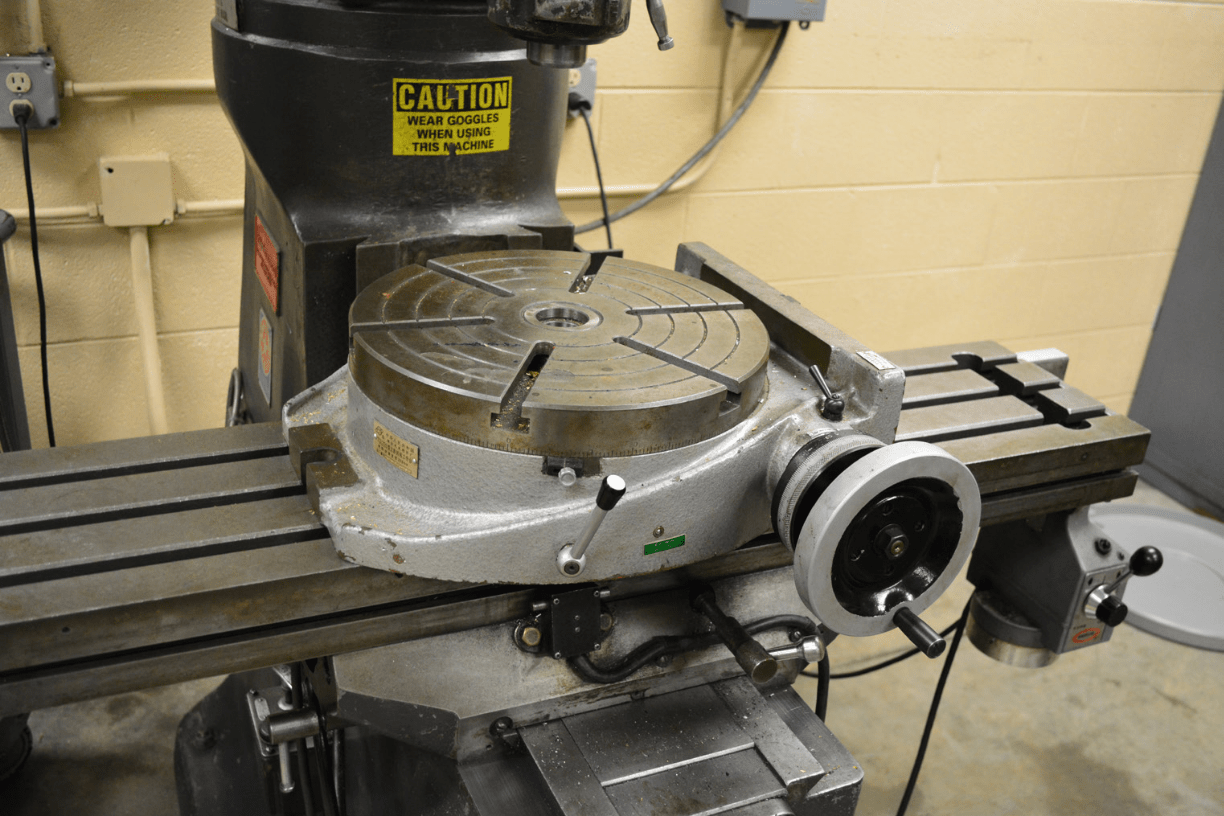

This milling machine attachment can be used to rotate work on a horizontal plane.
What is the "rotary table?"
200
What are the three general types of technical work documents?
What is a " Maintenance Procedure, Formal Work Package, and a Controlled Work Package?"
200
A cut no larger than "this" should be used to clean the surface on the inside diameter of a casing ring
What is ".005?"
200

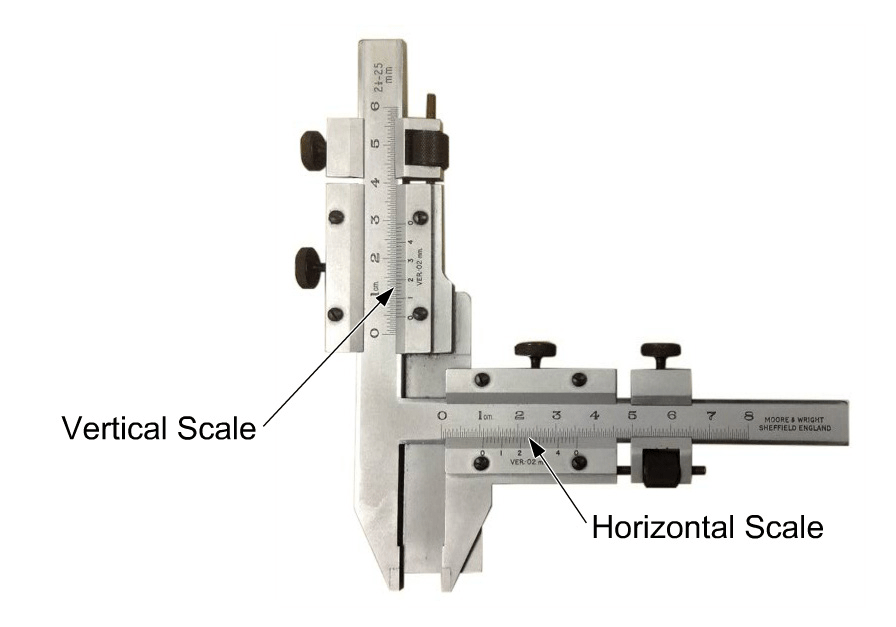

This tool is used to measure the tooth of a spur gear
What is a gear tooth vernier caliper?
200
This style of indexing is the simplest form of indexing.
What is "direct or rapid indexing?"
200
The Cincinnati horizontal mill uses "this" type of taper in the spindle
What is "Brown and Sharpe?"
300
What is the fundamental rule for all maintenance?
Technical Specifications must be met at all times.
300
These centrifigual pump components prevent the casing and impellar from having to be replaced.
What are "renewable casing wearing rings and impellar wearing rings?"
300

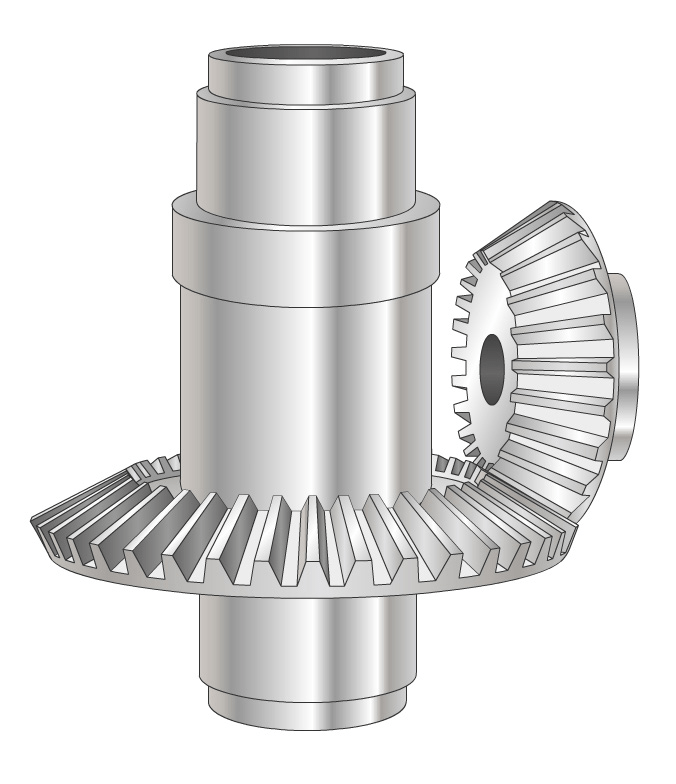

This type of gear has a conical shape and is used to connect intersecting shafts
What is a "bevel gear?"
300
When plain indexing on an indexing head with a 40 to 1 worm wheel, this equation should be used to calculate the number of whole or partial rotations of the head
What is "40 / Number of divisions?"
300

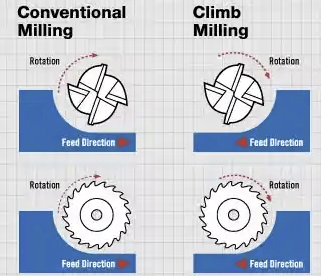

For most cuts, the milling process where the cutting tool moves against the feed direction of the material is desired. This is called "what" type of milling.
What is "conventional or up milling?"
400
Required torque plus the running torque when using a self locking fastener is known as this.
What is "final torque?"
400
These headless screws are used to hold impellar wearing rings in place.
What is a "dutch key?"
400

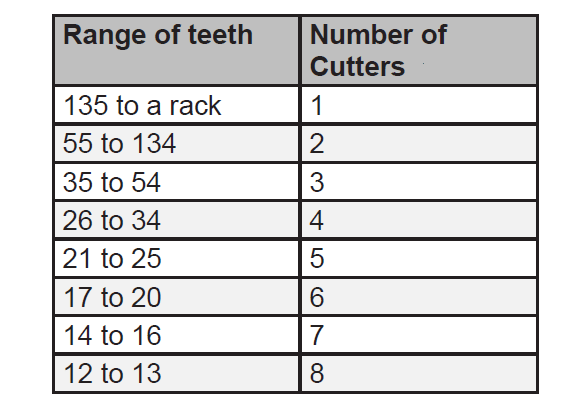

When cutting a spur gear, this information is required when selecting the proper cutter.
What is number of teeth?
400
For angular indexing on an indexing head with a 40 to 1 worm wheel, each rotation is how many degrees?
What is "9 degrees?"
(360/40 or number of divisions in a given plate)
400
Less flutes on a cutter are desired when cutting this material.
What is "soft metals"
500
Who has final approval for a major DFS?
Who is "TYCOM or NAVSEA?"
500
This NAVEDTRA is a part of the RKE bibliographies and provides a description of common types and uses of pumps aboard ship.
What is "NAVEDTRA 14104A- Fireman?"
500
These two pieces of information can be obtained from the print and used to calculate other features of a spur gear.
What is "Outside Diameter and Number of Teeth?
500
The sector arms on a dividing head are used for this operation.
What is "rotating the index crank for partial turns"
500

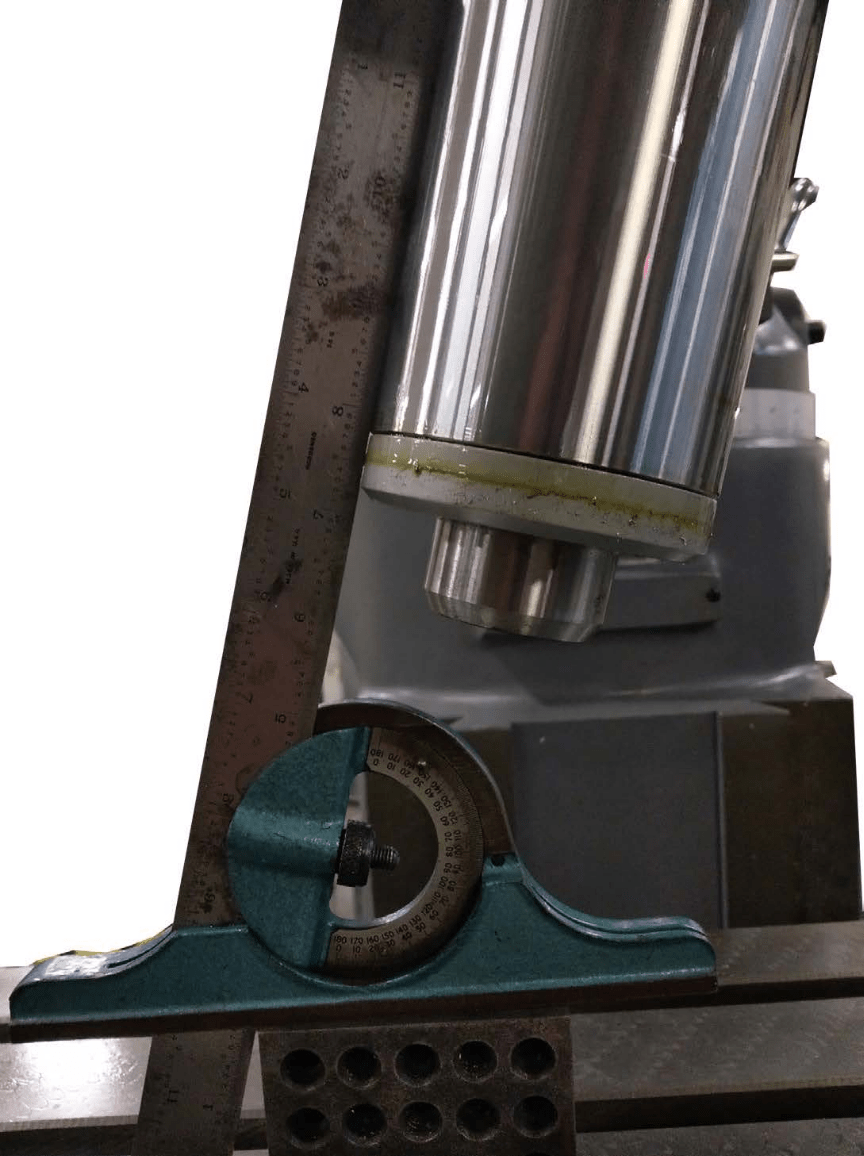

This tool can be used to accurately angle the spindle head of a universal mill
What is a "protractor or dial indicator?"
