Slopes
Finding Angle Measures - Numeric
Proving Lines Parallel
Finding Angle Measures - Algebraic
100
What is the slope of the line through (5, 7) and (-3,3)?
1/2
100

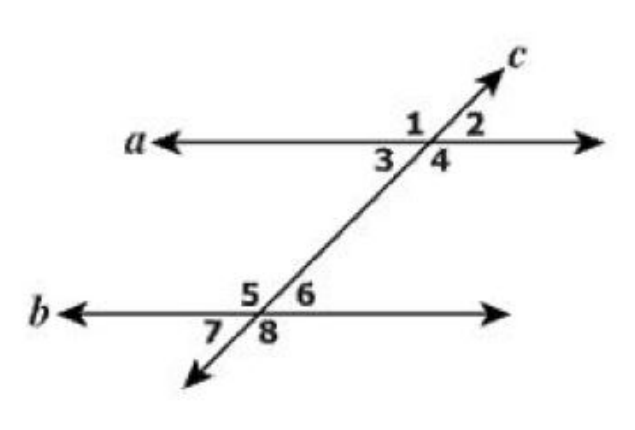

Given that a//b, which of these angles are supplementary?
A. 5 and 8 B. 1 and 5
C. 2 and 8 D. 6 and 3
C. 2 and 8
100
Which would prove r//s?
A. mangle8=mangle3
B. mangle8=mangle6
C. mangle8+mangle6=180
D. mangle8=mangle9
B.
mangle8=mangle6
100

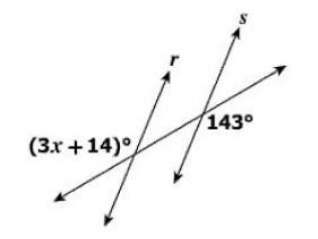

Given r//s, what is the value of x?
x = 43
200
What is the slope of AD?
-2
200

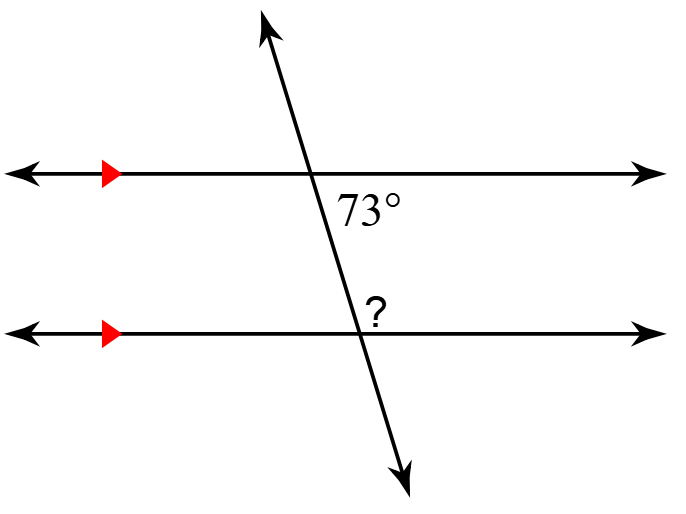

What is the measure of the indicated angle?
107 degrees
200

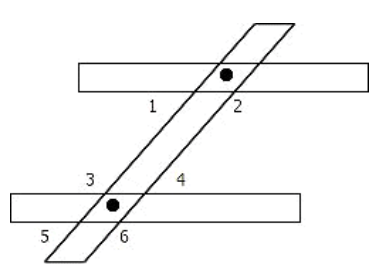

John nailed a piece of wood across two beams as shown. Which angles need to be congruent to show the beams are parallel?
*Any valid answer will be accepted*
angle1=angle5
OR
angle2=angle6
OR
angle2=angle3
OR
angle1=angle4
200

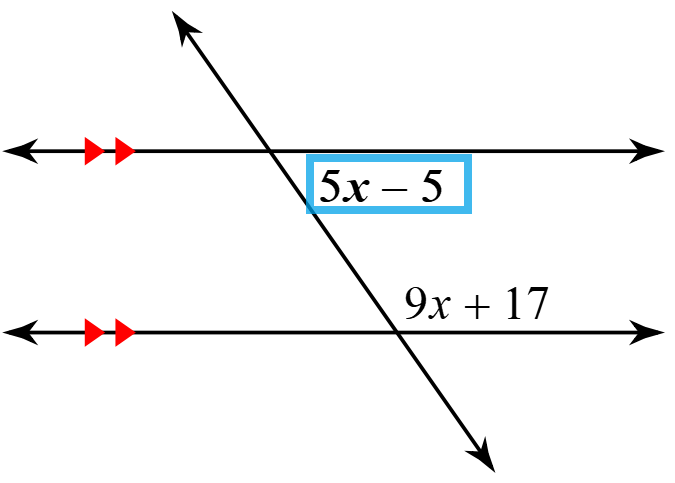

Find the value of x.
x = 11
300
Line t has coordinates (0,6) and (5,0). What is the slope of a line parallel to line t?
-6/5
300

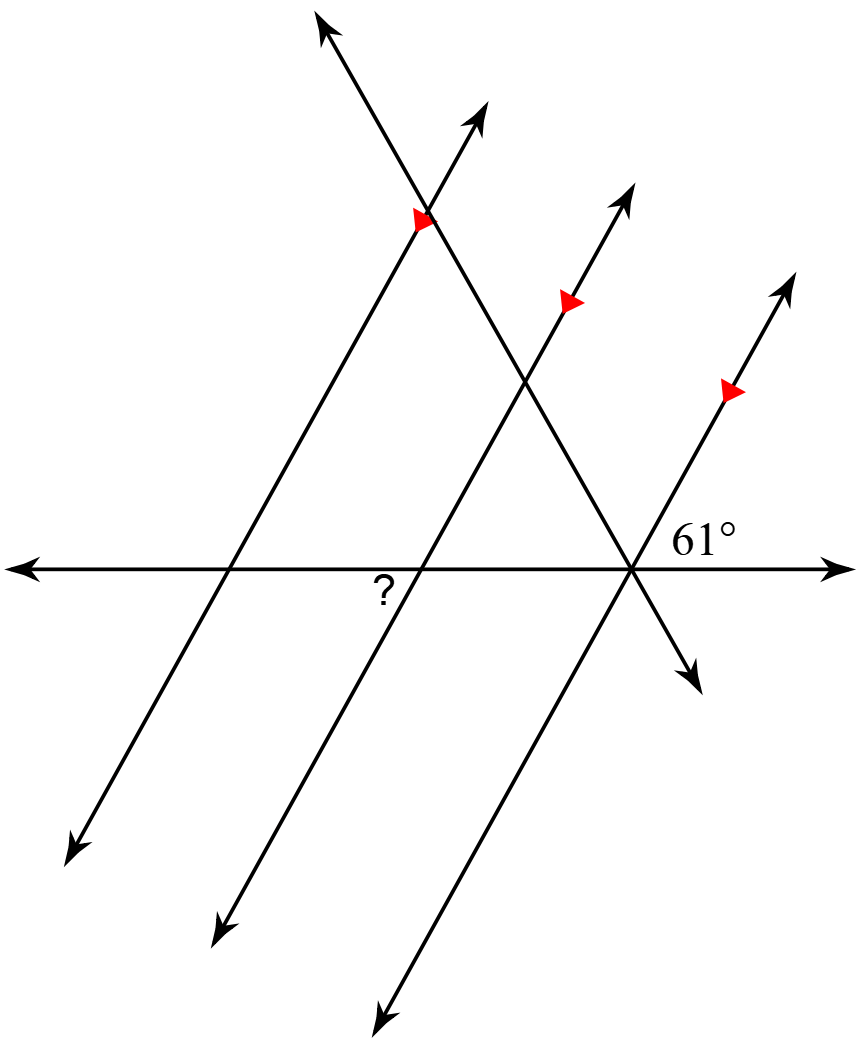

What is the measure of the indicated angle?
61 degrees
300
Which diagram proves a//b?
B
300
Find the value of x.
x = 8
400
Line j contains the points (-8, 5) and (8, -3). What would be the slope of a line perpendicular to line j?
2
400
Given a//b and c//d, what is the value of x?
133 degrees
400
Which lines are parallel in the given diagram?
p//q and r//s
400

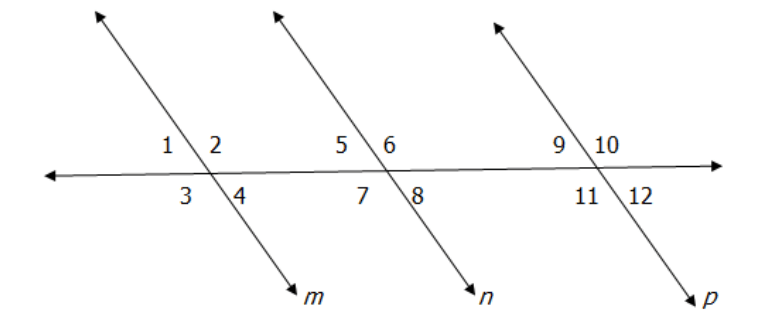

Given that m//n//p, find the mangle10
mangle7=5x-20
mangle10=2x+70
mangle10=130
degrees
500
Given
AB: A(-1,3) B(0,5)
CD: C(2, 1) D(6, -1)
Are AB and CD parallel, perpendicular, or neither?
Perpendicular
500

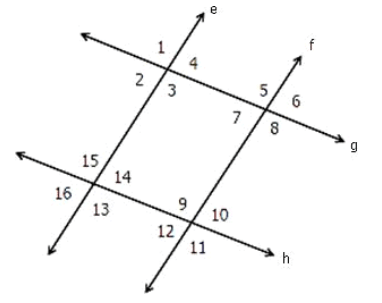

In the figure, g//h and e//f. Which angle listed is not congruent to angle 5?
A. angle3 B.angle9
C. angle8 D.angle16
D.
angle16
500
Select all that would prove c//d.
A. mangle11+mangle12=180
B. mangle2+mangle6=180
F. mangle11=mangle13
H. mangle1=mangle6
B.
mangle2+mangle6=180
H.
mangle1=mangle6
500
Find the measure of the indicated angle.
55 degrees
