Electrical Fundamentals
Tools & Equipment
Robotics
Drones
3D Printers
100
The unit of measure for electrical current
What is an Ampere?
100
The name of this diagnostic tool.
What is a multimeter?
100
The types of motors common to 6-axis robots.
What are servo motors?
100
A rule for Drone Pilots operating under a recreational license.
Answers Vary
What is:
- Less than 400 ft
- Keep drone visible
- Check flight restrictions & conditions before flying
- Register & label any drones weighing more than 0.5 lbs (250g)
100
The name of the material used to produce a 3D print.
What is filament?
200
What happens to current when resistance increases.
What is current decreases?
200
The name of this electrical tool.
What are wire strippers?
200
The types of jobs robots are good at being utilized in (name at least 1 of the 5 common categories).
What are:
Dull, Dirty, Dangerous,
Difficult, & Dear?
200

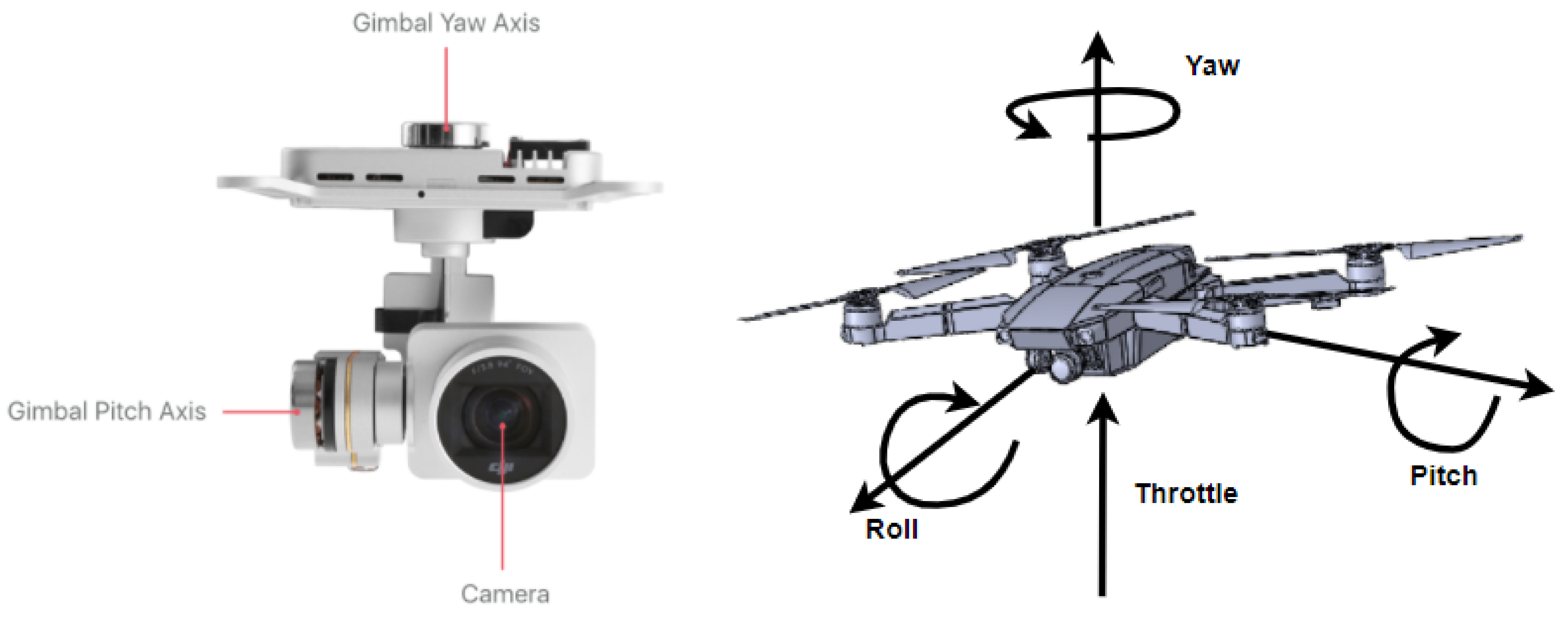

The name for the angle of the drone front-to-back.
What is pitch?
200
The name of the plate onto which a 3D print is produced.
What is the print bed?
300
The component that this symbol represents.
What is a DC Power Supply?
(Not a battery!)
300

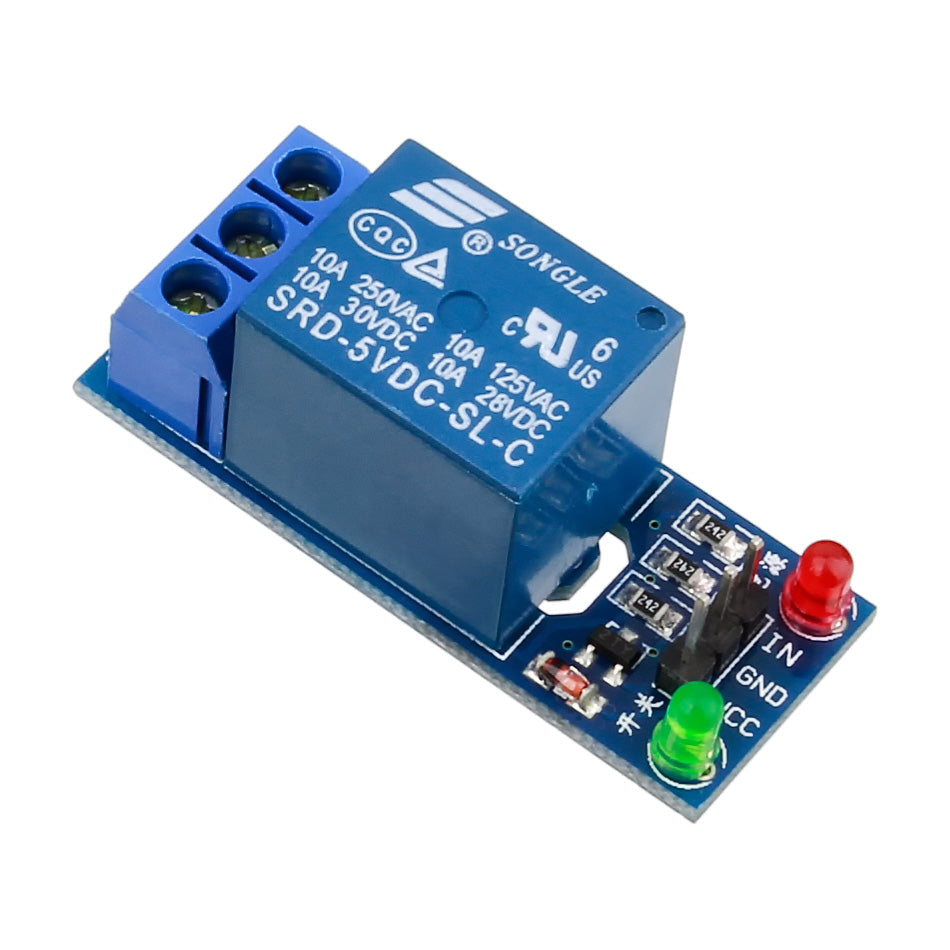

The name of this common automation device.
What is a relay?
300
The style of robot shown in this picture
What is a 6-axis robot?
300
The name for the angle of the drone side-to-side.
What is roll?
300
The name of the motor style used to feed the filament through the hot end at a controlled rate.
What is a stepper motor?
400
The feature of an electrical circuit which makes it dangerous (Amps, Ohms, Volts)
What are amps?
400
The name of these common machinist tools?
What are allen wrenches?
400
The name of the custom tooling on the end of a 6-axis robot.
What is the End of Arm Tooling?
- or -
What is an End Effector?
400
The name for the angle of the drone nose towards the direction of flight.
What is yaw?
400
The technical name for feeding filament out the hot end of the printer nozzle.
What is extrude?
(Extrude = to thrust out, force out material)
500
The name for an incomplete circuit where current is not flowing.
What is an open circuit?
500
The name of this style connector which is common in industrial automation.
What are screw terminal blocks?
500
The name of the rule that is commonly used for determining robotic coordinate systems.
What is the Right Hand Rule?
500
The license required for professional drone piloting of drones greater than 55 lbs or piloting for money.
What is Part 107 Drone Certification?
500
The software to divide a digital file into horizontal layers for the 3D printer to use to produce the desired shape.
What is a slicer?
