Solid Geometry
Coordinate Geometry
Geo City
Fall 2023
Random
1
The geometric shape that is the base of a cylinder.
What is a circle?
1
The part of the circle represented by the number 3 in the equation below:
(x+1)^2+(y)^2=4^2
What is the center of the circle?
1
The name of a solid composed of two or more geometric solids.
What is a composite solid?
1
Revolutions, Translations, and Reflections are all examples of this.
What are rigid transformations?
1
The sum of the three angles of any triangle?
What is 180 degrees?
2
The line formed by the intersection of two faces of a cube.
What is an edge?
2
The center of the circle represented by the equation:
(x+2)^2+y^2=4
What is (-2,0) ?
2
The height of the prism formed by:
10<x<20{4<y<12}{0<z<7}
What is 7 units ?
2
A line segment that divides in half and creates a 90 degree angle with another segment.
What is a perpendicular bisector?
2
The radius of a sphere whose volume is:
36pi
What is 3?
3
The method to calculate the volume of the solid in the image shown:
What is:
Volume Rectangular Prism - Volume half sphere
3
The equation of the circle centered at the origin with a radius of 3.
What is
x^2+y^2=9
3
The dimensions of a shape formed by the following:
3<x<8{9<y<19}{0<z<5}
What are 5x10x5
3
The triangles in the picture are similar by this postulate:
What is Angle, Angle, Side, (AAS) congruence postulate?
3
The length of the diagonal of a square with sides measuring 12 cm.
What is
12sqrt(2)
4
The height of the solid shown whose volume is 1052 in3
What is 9 inches?
4
The equation of a circle that passes through (3,9) and has a center of (-1,6)
What is
(x+1)^2+(y-6)^2=25
?
4
The formula to calculate the volume of the composite solid in the diagram:
What is:
V = lwh+pir^2 h
4

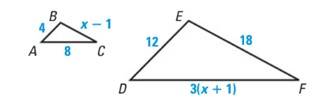

The value of x in the diagram that makes the triangles similar:
What is x = 7 ?
4
The perimeter of a 30.60.90 right triangle with a hypotenuse of 8 in.
What is
12+4sqrt(3) = 18.9
5
The surface area of the solid shown below:
What is
75pi = 235.6 ft^3
?
5
The center of the circle whose equation is:
x^2-2x+5+y^2=81
What is (1,0) ?
5
The shape formed with the following:
(x-20)^2+(y-45)^2<36{3<z<5}
What is a cylinder?
5
The value of y that will make the triangles in the diagram similar:
What is y=7 ?
5
The formula to calculate the surface area of the solid:
What is:
3pir^2+2pirh
