Vocabulary
Angle Relationships
Solving Angles
Using Parallel Lines
Parallel, Perpendicular or Neither
Equations of Lines
100
Angles that are on the same side of the transversal and inside the parallel lines.
What are Same Side Interior Angles?
100
What kind of angles are <1 and <3?
What are vertical angles?
100
If m<3 = 33o, then m<7 is ________, because it is ____________ with <3.
33o, corresponding
100

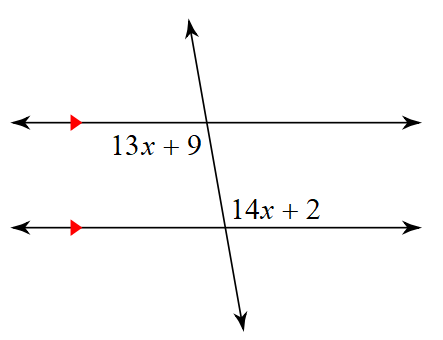

For what value of x are lines a and b parallel?
What is x = 30?
100
Find the slope of a line that is parallel to a line that has a slope of -1/10.
What is -1/10?
100
Line m has a slope of -19/5. Line n is perpendicular to line m and has a y-intercept of -21. Find the equation of line n.
y=5/19x-21
200
Angles that are on different sides of the transversal and outside the parallel lines.
What are Alternate Exterior Angles?
200
What kind of angles are <1 and <7?
What are Alternate Exterior Angles?
200
If the m<8 = 97o, then m<2 is ________, because it is ____________ with <8.
97o, alternate exterior
200
For what value of x are lines a and b parallel?
What is x = 22?
200
Find the slope of a line perpendicular to y=-15/16x+23
16/15
200
Line m has a slope of 41/7. Line n is parallel to line m and has a y-intercept of 9. Find the equation of line n.
y=41/7x+9
300
Lines that never intersect and go in the same direction.
What are Parallel Lines?
300
What kind of angles are <4 and <6?
What are Alternate Interior Angles?
300
If the m<4 = 119o, then m<2 is ________, because it is ____________ with <4.
119o, vertical angles
300
Find the value of x.
x = 7
300
The slope of a line that is perpendicular to a line that has a slope of -5/2.
What is 2/5?
300
Write an equation of the line passing through the point (-4, -3) that is parallel to the line y=2x-5 .
y=2x+5
400
Angles that are made by two intersecting lines that are across from each other.
What are Vertical Angles?
400
What kind of angles are <3 and <7?
What are Corresponding Angles?
400
If the m<3 = 58o, then m<6 is ________, because it is ____________ with <3.
122o, same side interior angles or consecutive interior angles
400
What is the measure of the obtuse angle?
What is 121o?
400
The slope of a line that is perpendicular to a line that has a slope of 7?
What is -1/7?
400
Write an equation of the line passing through the point
(-4, 5) that is perpendicular to the line y=2/3x+2 .
y=-3/2x-1
500
Angles that are in the same spot but on different parallel lines. Often referred to as "same seat different row".
What are Corresponding Angles?
500
What kind of angles are <3 and <6?
What are Same Side Interior Angles?
500
If the m<4 = 101o, then m<1 is ________, because it is ____________ with <4.
79o, linear pair
500
For what value of x are lines a and b parallel?
What is 6?
500
Points A(-4, 16) and B(-14, 0) are two points on line AB and line m has equation y=-5/8x-6. Find the slope of AB and the slope of line m. What can you determine about AB and line m? Explain your reasoning.
Slope of AB = 8/5, slope of line m = -5/8. They are perpendicular, because their slopes are negative reciprocals.
500
Write an equation of the line passing through the point (-6, -3) that is perpendicular to the line y=6x-1 .
y=-1/6x-4
