Transformations - Geometry

Talk the Talk(Vocabulary)

100

___________________ are changes made to a figure or graph on the coordinate plane.

Transformations

200

Negative angles are measured in a __________________ direction.

clockwise

300

________________ figures have the same shape, but different size due to a dilation. Their angles are congruent.

Similar

400

_______________ are quantities with both direction and magnitude (OH YEAH!).

Vectors

500

A ______________  _________________ shows us how a figure has been transformed on the coordinate plane.

mapping diagram

RigidTransformations

100

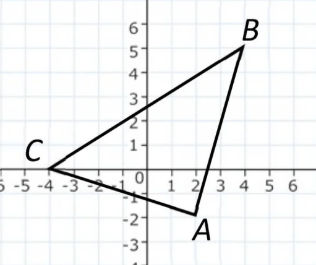

Use a mapping diagram to describe the transformation.

(x,y)->(x+4,y+3)

200

Describe the transformation.

A rotation of +90^o (or -270^o) about the origin.

300

Identify the two transformations that could have been used to create the image.

1) A reflection over the x-axis.

2) A rotation of 180o about point (-3.5, 0).

400

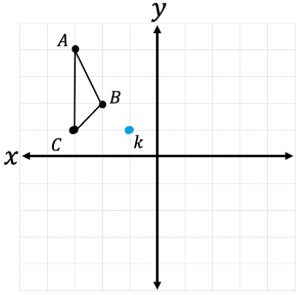

Write the ordered pair of point A' if a rotation of +90^o took place around point k.

(-4,-1)

500

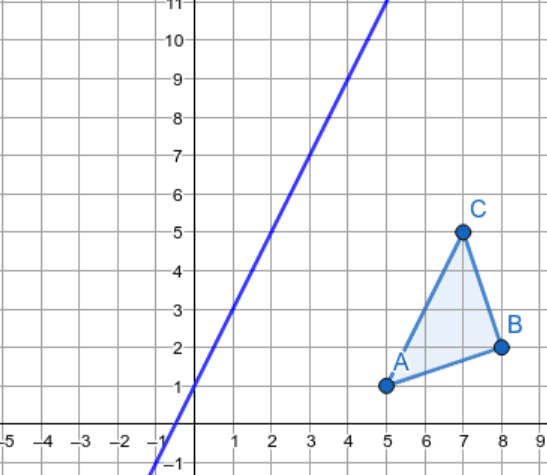

Write the ordered pair of A' after a reflection of the line y = 2x + 1.

(-3,5)

Non-RigidTransformations

100

What is the scale factor of the dilation?

1/2=0.5=50%

200

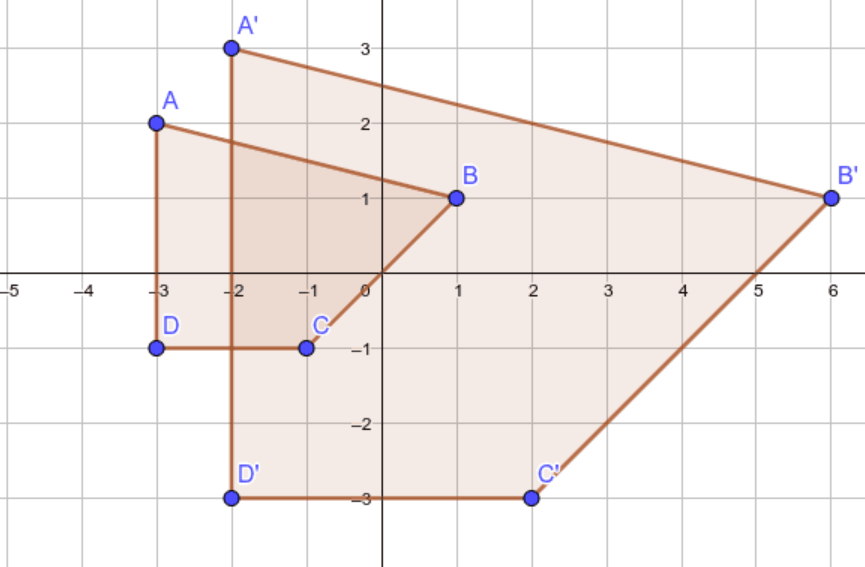

Find the center of dilation.

(-4,1)

300

Write the ordered pair of A' if the figure is dilated by a factor of 3/2 about the midpoint of CB.

(7,-3)

400

Write the coordinates of B' after a dilation of 0.75 about the origin.

(3,3.75)

500

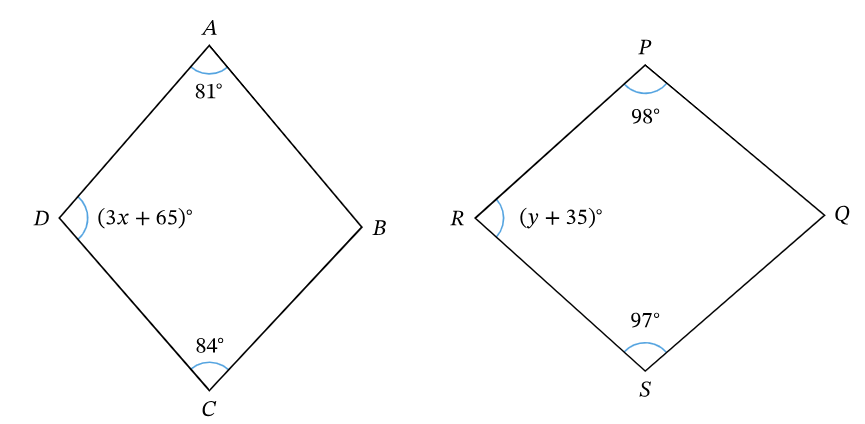

Given that  is similar to ,find the values of x and y.

x = 11^o

y = 49^o
