Corresponding Parts
Scale Factor
Scaled Copies
Scaled Drawings & Maps
Miscellaneous
100
In quadrilaterals PQRS and WXYZ, angle Q corresponds to which angle?
What is X?
100
To find the scale factor, divide the length in the copy by a length in the __________.
What is the Original?
100
If a shape is enlarged by a scale factor of 3, a side of 5 units becomes this long.
What is 15 units?
100
A drawing that shows a real object with accurate sizes reduced or enlarged by a certain amount is called this.
What is a scale drawing?
100
If a scale drawing uses a scale of 1 inch : 4 feet, a wall that is 3 inches on the drawing is this many feet in real life.
What is 12 feet?
200

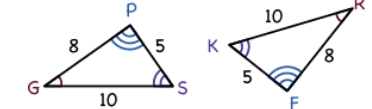

angle S = angle
What is angle K?
200
If the original segment is 6 units and the copy is 12 units, the scale factor is this.
What is 2?
200
If a scaled copy has a side of 7.5 units and the original has 2.5 units, the scale factor is this.
What is 3?
200
If 1 inch on a map represents 10 miles in real life, this is called the map's what?
What is the scale?
200
If a map scale is 1 cm : 2 km, and two towns are 7 cm apart on the map, the real distance is this.
What is 14 km?
300

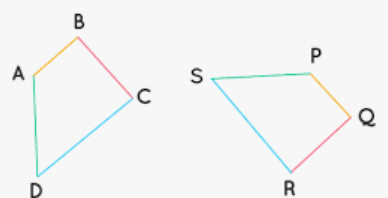

Side BC corresponding to Side ______?
What is Side QR?
300
If the scale factor is less than 1, the copy will be __________ than the original.
What is smaller?
300

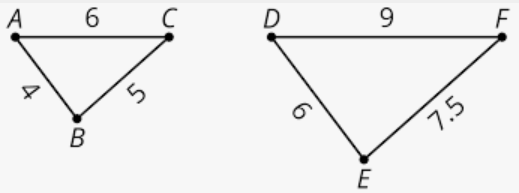

What is the scale factor?
What is 1.5?
300
A building is 30 feet tall. On a scale drawing with a scale of 1 in : 60 ft, the building is this tall in the drawing.
What is 0.5 feet?
300
A model car is built at a 1 cm:18 cm scale. If the model is 25 cm long, the real car is this long?
What is 450 cm?
400

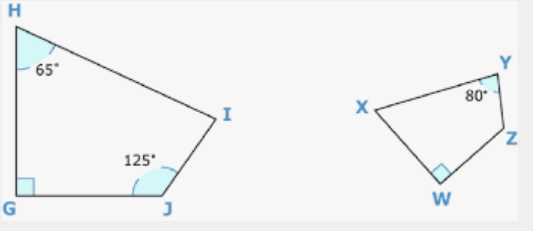

angle H = angle
What is angle X?
400
If the scale factor is greater than 1, the copy will be __________ than the original.
What is larger?
400
If a triangle with side lengths 3, 4, and 5 is scaled by a factor of 0.5, these are the new side lengths.
What are 1.5, 2, and 2.5?
400
If a scale drawing uses a scale of 1 cm : 5 m, a distance of 8 cm on the drawing represents this many meters in real life.
What is 40 meters?
400
A room is 15 feet long. On a drawing with a scale of 2 in: 10 feet, the length on the drawing is this many inches.
What is 3 inches?
500

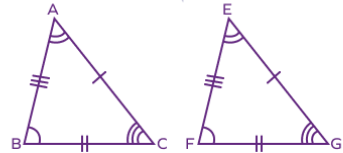

What corresponds to angle BAC?
What is angle FEG?
500
If the scale factor is equal to 1, the copy will be __________ than the original.
What is the same as?
500
What is the scale factor?
What is 0.8 or 4/5?
500
A playground is 80 meters long. On a scale drawing, it measures 8 cm. The scale of the drawing is this.
What is 1 cm : 10 meters?
500

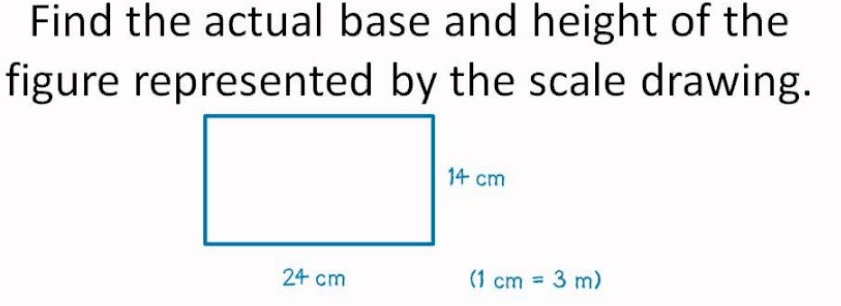

Extra: What is the area of the actual rectangle?
What is 42 feet by 72 feet?
What is 3,024 feet squared?
