Endocrine
Respiratory
Endocrine Models
Respiratory Models
100
What is structures are at A and B?
This is the Pituitary Gland
A: Anterior Pituitary Gland (Adenohyophysis)
B: Posterior Pituitary Gland (Neurohypophysis)
100
What respiratory organ is shown here? Label the structures.
Trachea
A: Mucosa – pseudostratified ciliated columnar epithelium
B: Submucosa w/ tracheal glands
C: Hyaline cartilage rings
100

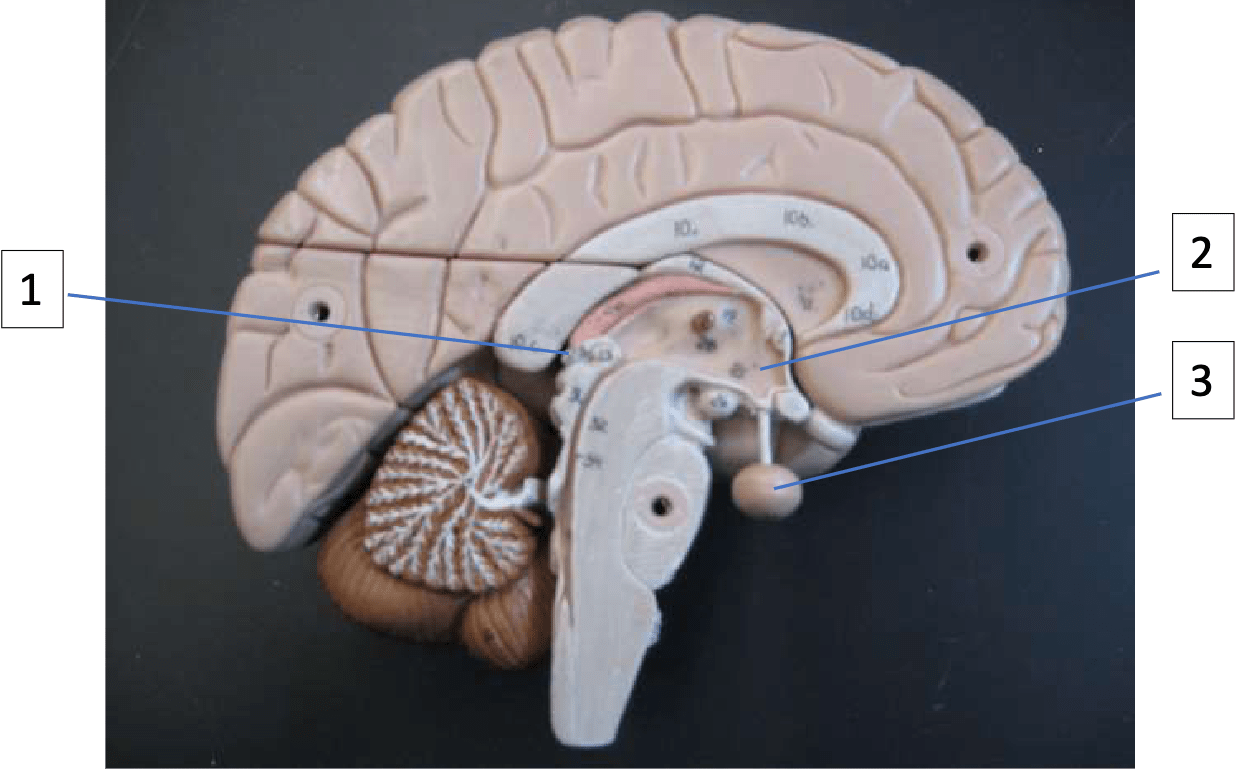

Label 1, 2, and 3
1: Pineal gland
2: Hypothalamus
3: Pituitary gland
100

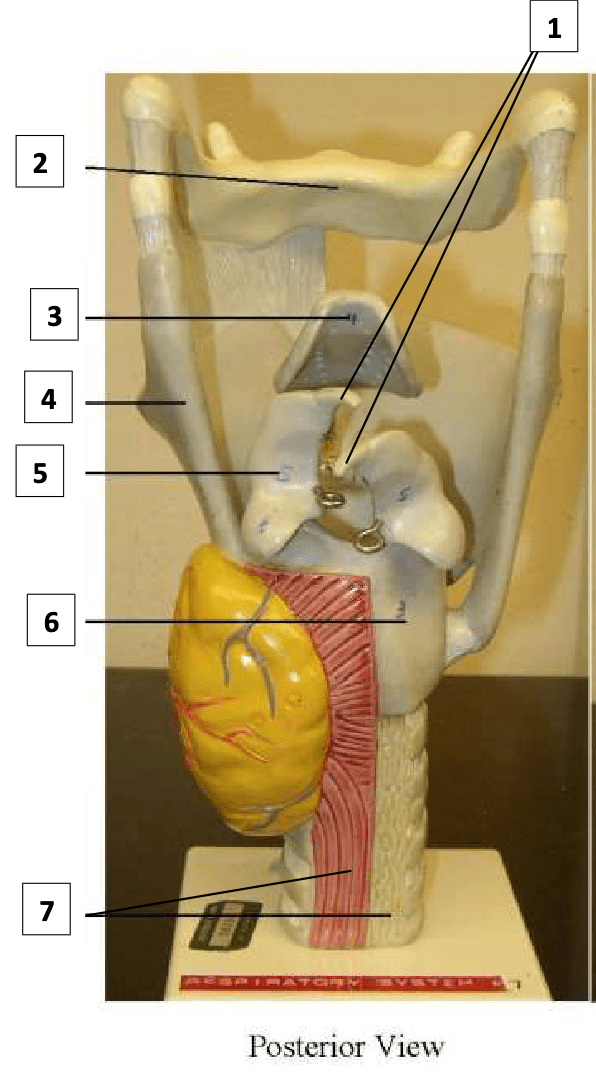

Label 1, 4, 5, and 6.
1: Corniculate cartilage
4: Thyroid cartilage
5: Arytenoid cartilage
6: Cricoid cartilage
200
What endocrine structure is shown here? Label all structures shown.
Adrenal Gland
A: Capsule
B: Cortex
C: Medulla
D: Zona glomerulosa
E: Zona fasiculata
F: Zona reticularis
200
What respiratory organ is shown here? Label the structures.
Lung
A: Bronchiole
B: Alveolar sac
C: Alveoli
D: Alveolar duct
200

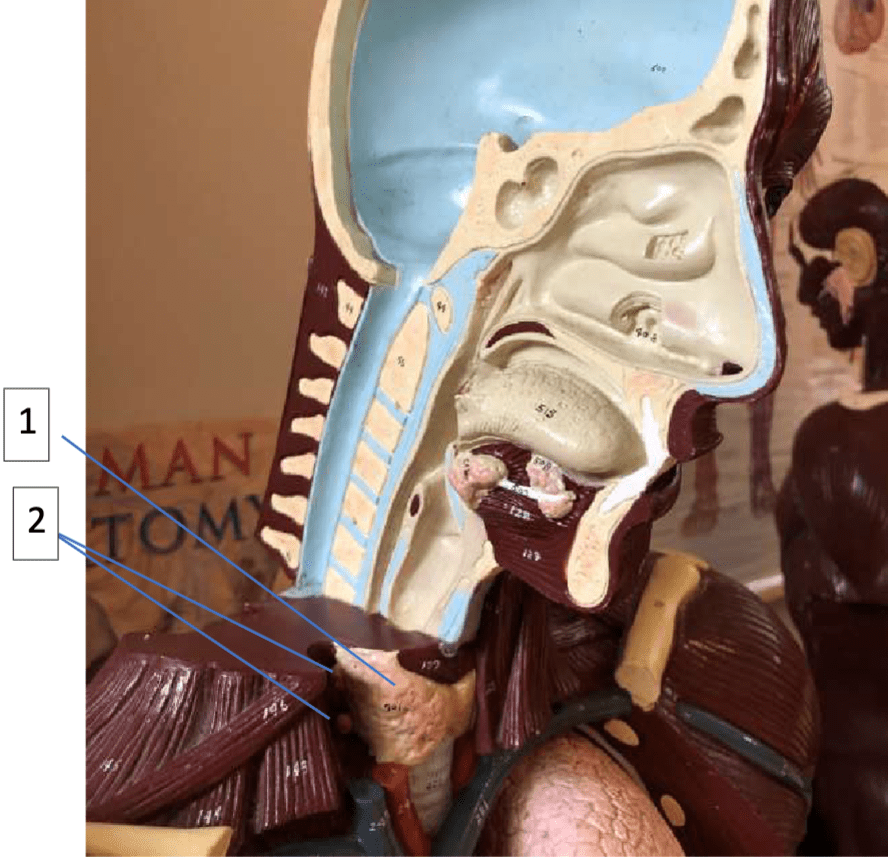

Label 1 and 2
1: Thyroid gland
2: Parathyroid gland
200

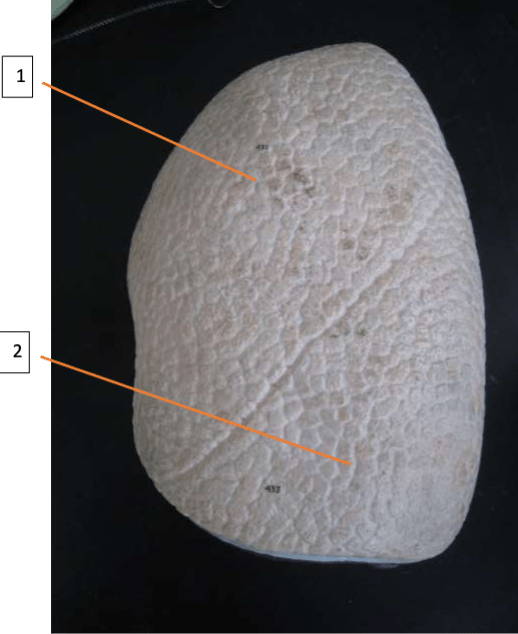

Label 1 and 2
1: Upper lobe of left lung
2: Lower lobe of left lung
300
What endocrine organ is shown? Label A, B, and C.
Thyroid Gland
A: Follicles containing thyroid hormone
B: Follicular Cells – secrete T3 & T4
C: Parafollicular cells – secrete Calcitonin
300
What part of the respiratory system is this? What type of muscle is shown?
Diaphragm
Skeletal muscle
300

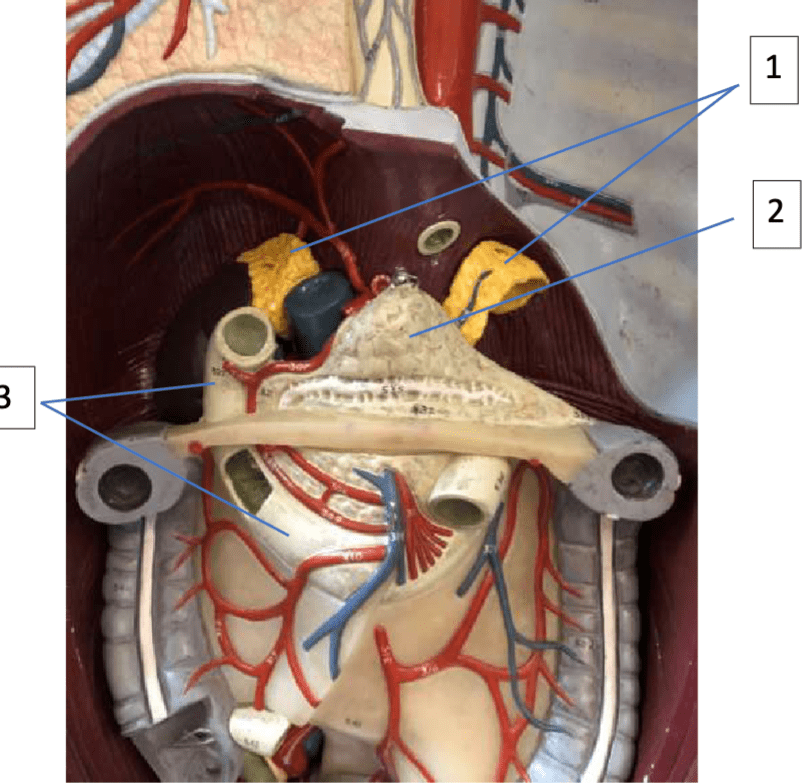

Label 1 and 2.
1: Adrenal glands
2: Pancreas
300

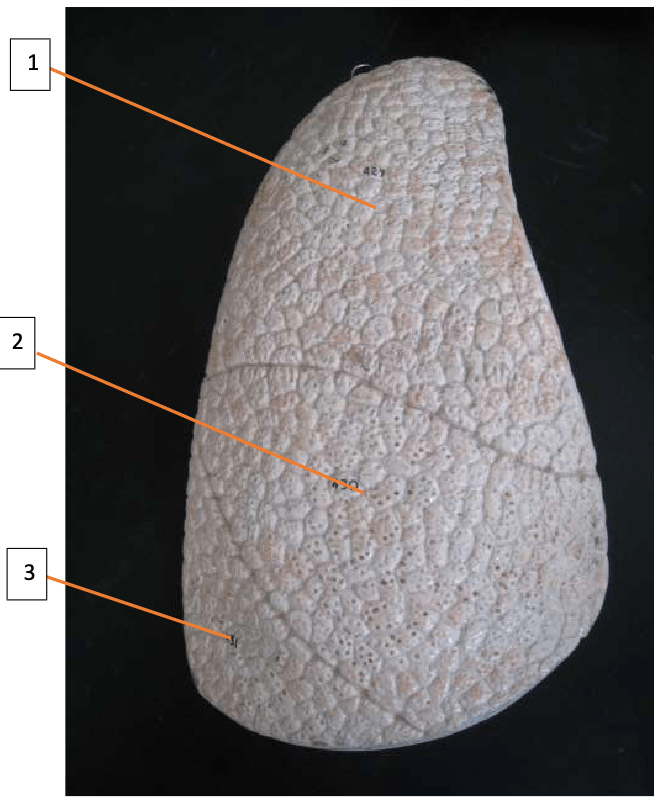

Label 1, 2, and 3.
1: Upper lobe of right lung
2: Middle lobe of the right lung
3: Lower lobe of right lung
400
What endocrine organ is shown here? Label the structures.
Ovary
A: Ovarian follicle
B: Oocyte
C: Granulosa cell – produces estrogen & progesterone
D: Theca Cell – androgen production
400

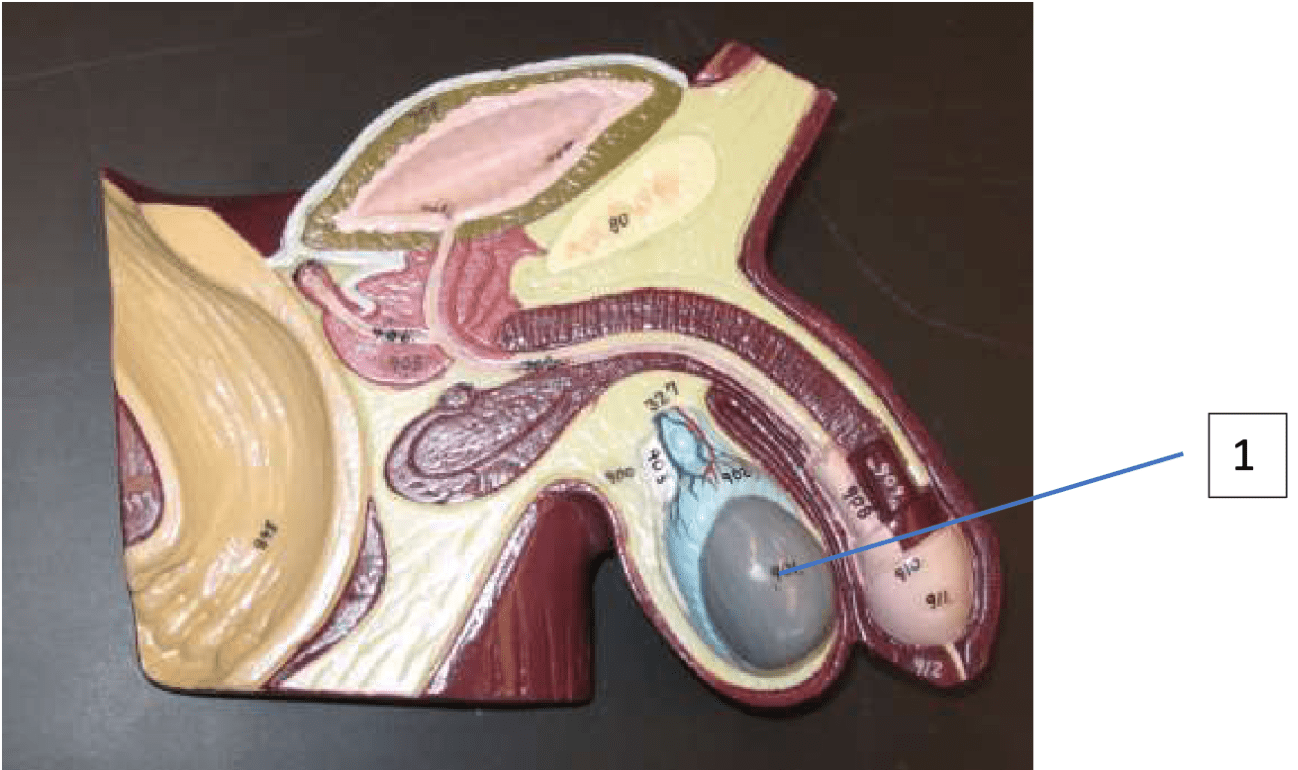

Label 1
Testis
400

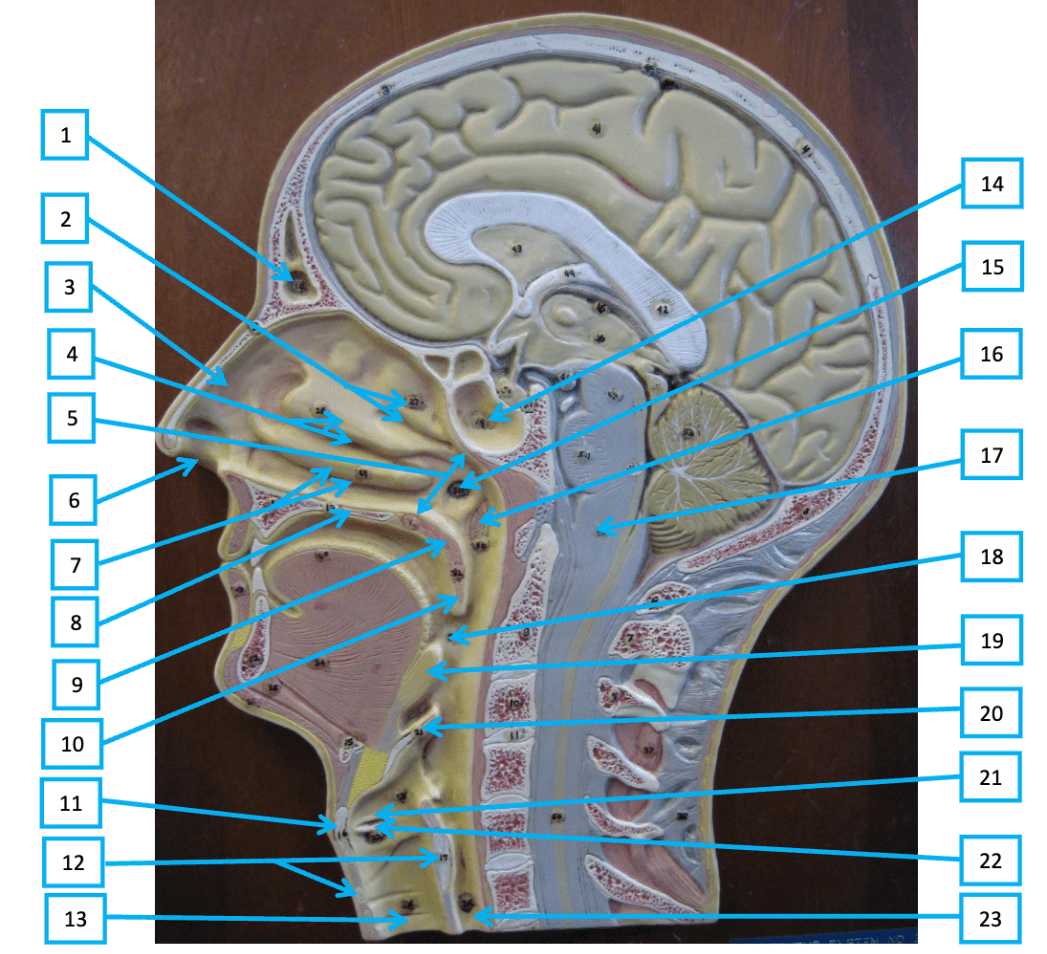

Label 8, 10, 20, and 23
8: Hard palate
10: Uvula
20: Epiglottis
23: Esophagus
500
What endocrine organ is this? Label the structures.
Testis
A: Leydig cells – produce and release testosterone
B: Seminiferous tubule
C: Sertoli Cells – respond to FSH for spermatogenesis
500

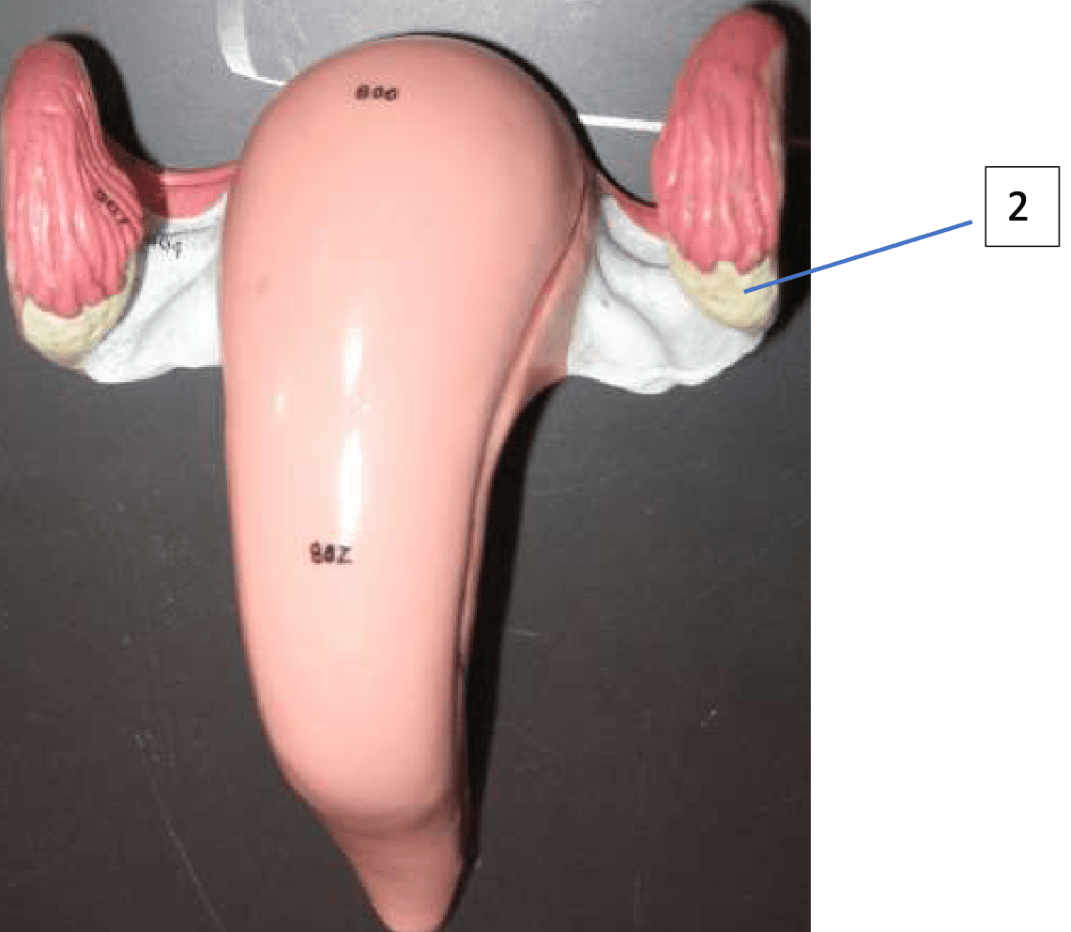

Label 2.
2: Ovary
500

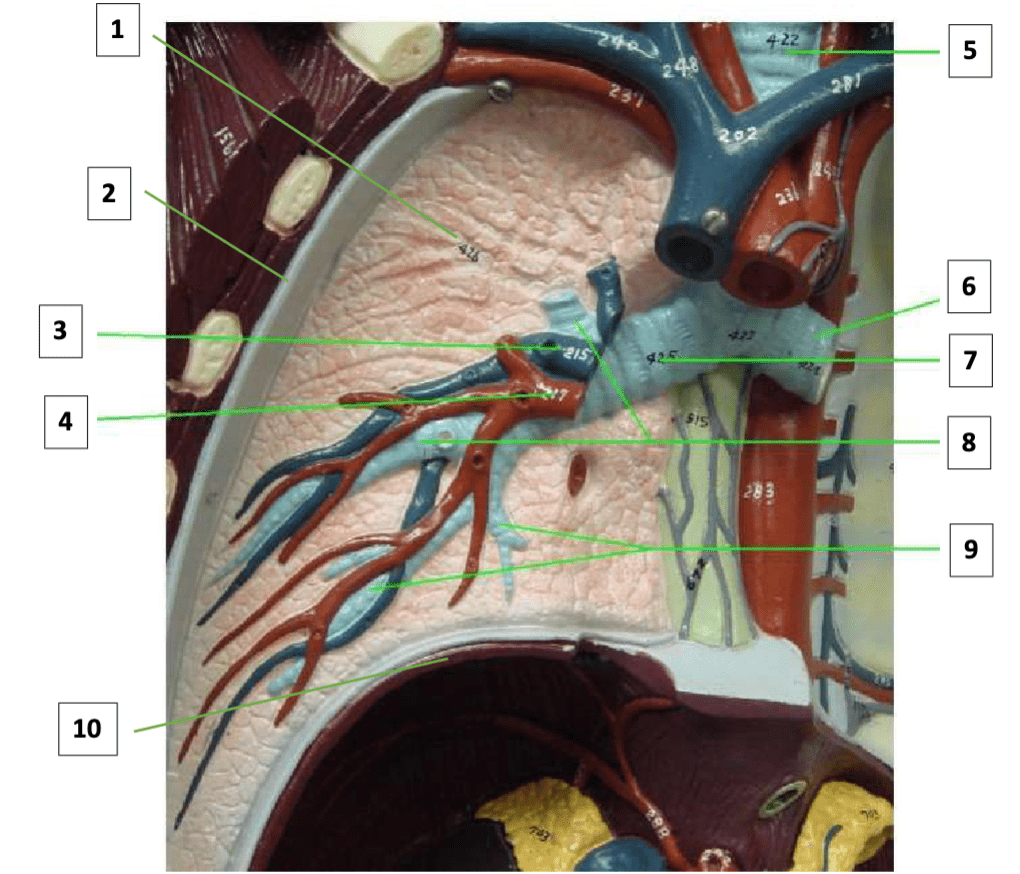

Label 7, 8, and 9.
7: R primary bronchus
8: R secondary bronchus
9: R tertiary bronchus
600
What endocrine organ is this? Label the structures at A and B.
Pancreas
A: Pancreatic islet cells – secrete insulin, glucagon, somatostatin, pancreatic polypeptide
B: Acinar cells – Secrete pancreatic juice
600

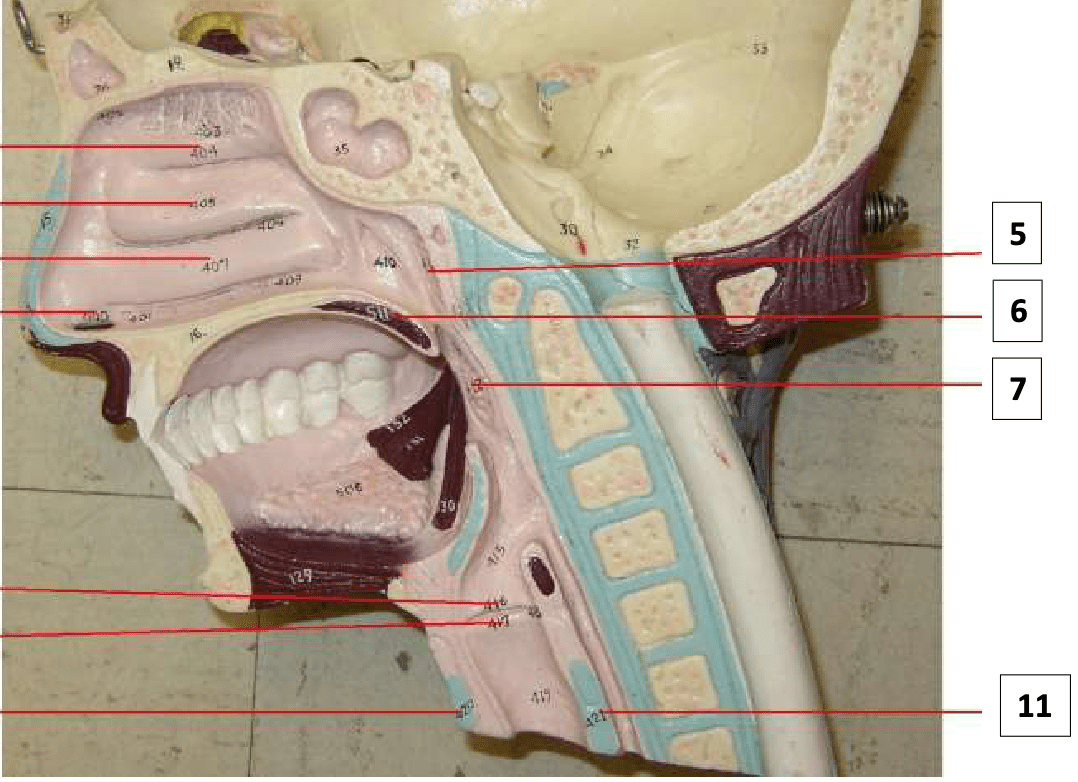

Label 5, 6, and 7.
5: Pharyngeal tonsil
6: Soft Palate
7: Palatine tonsil
