Parallel Line Relations
Pythagorean Theorem
Parallel Line Algebra
Volume
Triangle angle sum
100

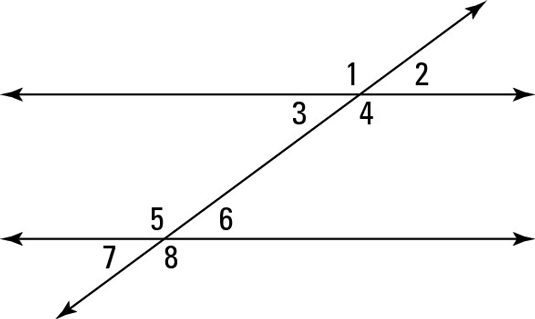

In the image below, the two lines are parallel and cut by a transversal. What is the relationship between…
Angle 3 and Angle 6??
Alternate Interior Angles
100
Which of the following can be a right triangle? (can be more than one!)
6, 8, 10
7, 20, 25
5, 12, 13
6, 8, 10 and 5, 12, 13
100

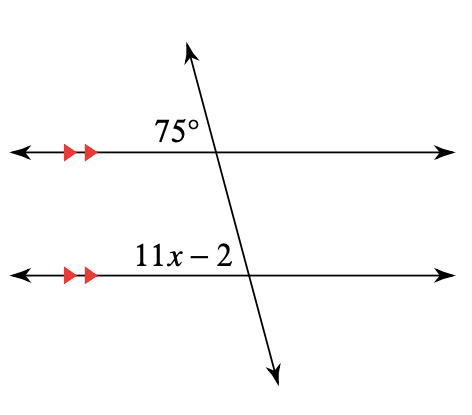

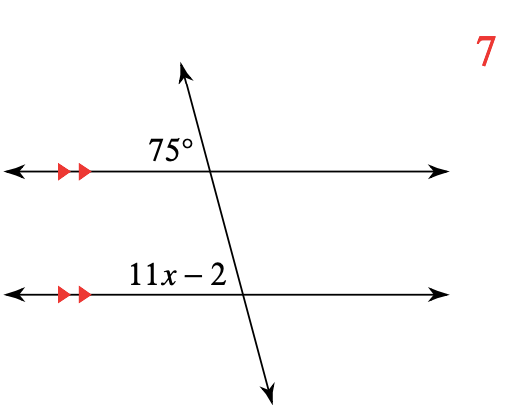

Name the relationship and then solve for x.
Corresponding Angles, 7.
100
On volume sheet
I'll tell you :)
100
What do all the angles in a triangle add up to and what is this called?
They add up to 180 degrees. Angle Sum Theorem
200
In the image below, the two lines are parallel and are cut by a transversal. What is the relationship between…
Angle 4 and Angle 8?
Corresponding Angles
200
What is the Pythagorean theorem?
What does each variable represent?
a2 + b2 = c2
a and b are legs, c is the hypotenuse
200

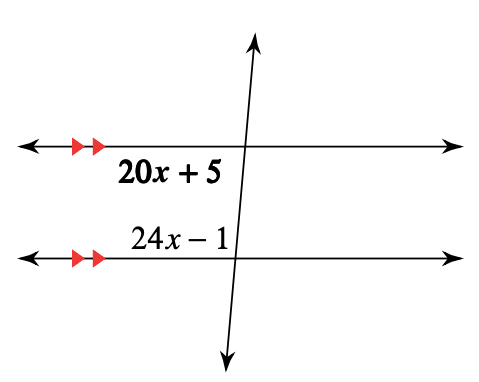

What is the angle relationship and find the value of x.
Same Side Interior Angles; X = 4
200
On volume sheet
I'll let ya know
200
Draw a triangle with two given angles of 68 and 23. What's the missing angle measurement?
89
300

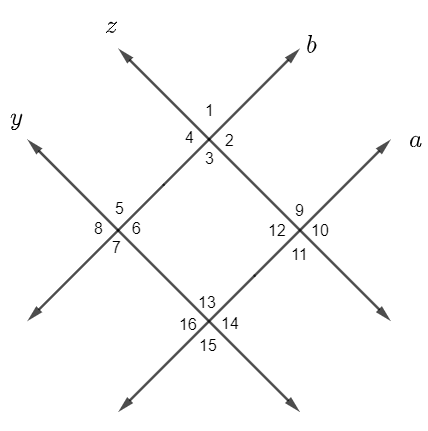

In the diagram below, Line Z is parallel to Line Y, and Line a is parallel to Line b. What is the relationship between…
Angle 4 and Angle 10?
Alternate Exterior Angles
300
Find the missing length of the hypotenuse of a right triangle whose legs measure 15 and 20 cm.
25 cm
300

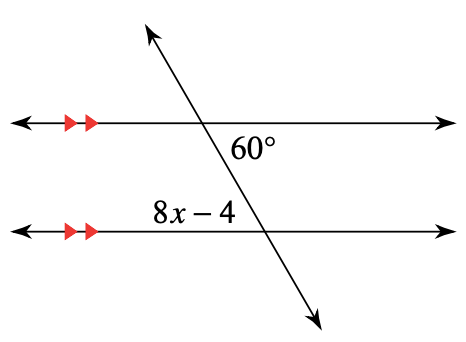

Name the angle relationship and find the value of x.
Alternate Interior Angles; X = 8.
300
Volume practice problem
I'll fill in the answer and we'll work it out together if needed!
300
See drawing on board. Solve for x
i'll tell you
400
In the diagram below, Line Z is parallel to Line Y, and Line a is parallel to Line b.
Name 1 set of each: (1) Alternate Interior Angle Pair, (1) Alternate Exterior Angle Pair, (1) Same Side Interior Angle Pair, and (1) Corresponding Angle Pair
Answers will vary by student groupings.
400
A soccer field is a rectangle 90 meters wide and 120 meters long. The coach asks players to run from one corner to the other corner diagonally across. What is this distance?
150 meters
400

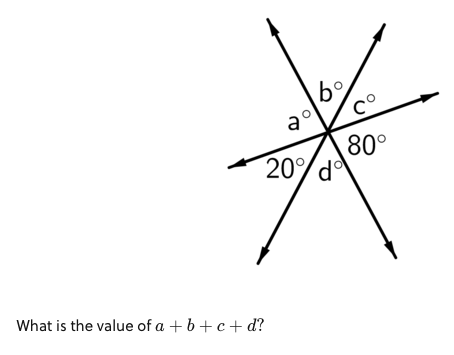

Sum = 260 Degrees
400
Volume problem on sheet
See answer key
400
See drawing on board
I'll tell you
500
In the diagram below, Line Z is parallel to Line Y, and Line a is parallel to Line b. What is the relationship between…
You are told that angle 1 is the same measure as Angle 15. State the series of reasons and "logical connections" that allow for you to prove this statement.
Answers will vary.
500
Maria leaves her house and walks north 6 blocks. She then turns and heads east 8 blocks until she reaches Sally’s house. What’s the shortest distance between Sally’s house and Maria’s house?
10 blocks
500
What is the value of x?
x = 80 Degrees
500
Word problem on volume sheet
We'll work it out if needed!
500
See drawing on board
i'll tell youuuuu
