Vocab
Measuring
Sound
Questions with Pictures
Wild Card
100
This is the highest point of a wave.
What is a crest?
100

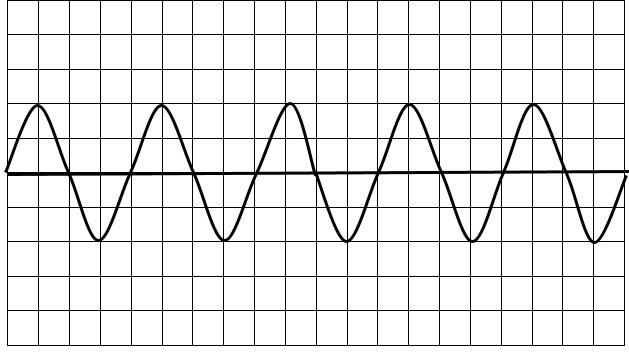

This is the amplitude of the wave if each square represents 1m.
What is 3m?
100
This wave property affects how loud our quiet a sound is.
What is amplitude?
100

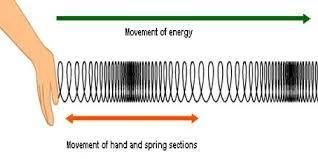

Is this wave transverse or longitudinal?
What is longitudinal?
100
True or false: Pitch of a sound wave depends on the frequency of the wave
What is true?
200
This word means the distance a wave or particle moves from its resting point or the line of origin.
What is the amplitude?
200

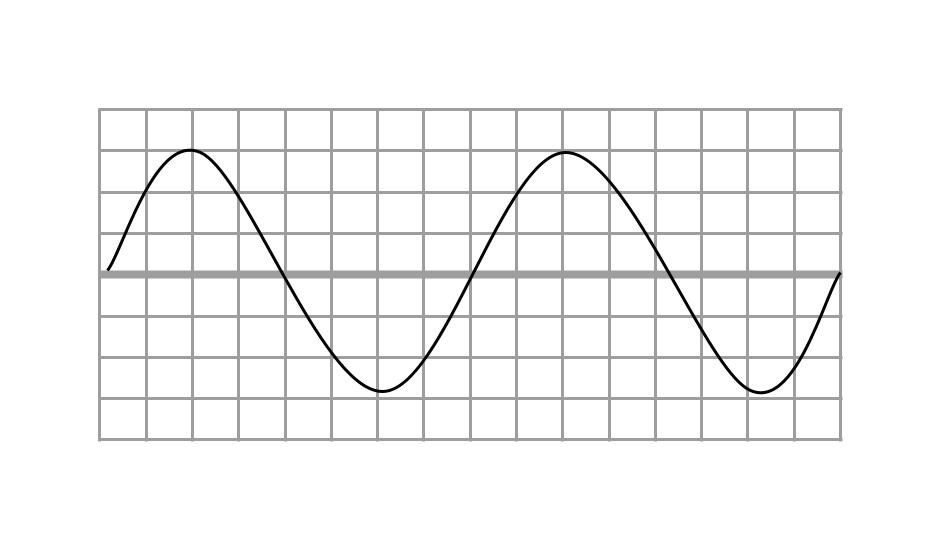

This is the wavelength of this wave if each square represents 1m?
What is 4m?
200
Is sound a transverse or longitudinal wave?
What is longitudinal wave?
200

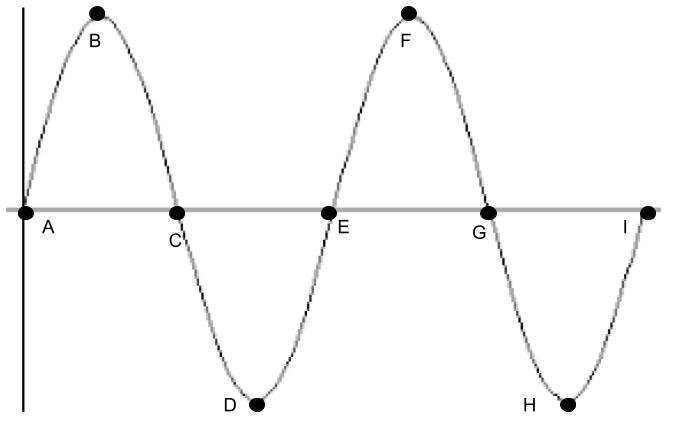

Which letters represent crests on this model?
What are B and F?
200
As frequency decreases, wavelength __________.
What is increases?
300
This is how many waves are shown in the model.
What is 2?
300

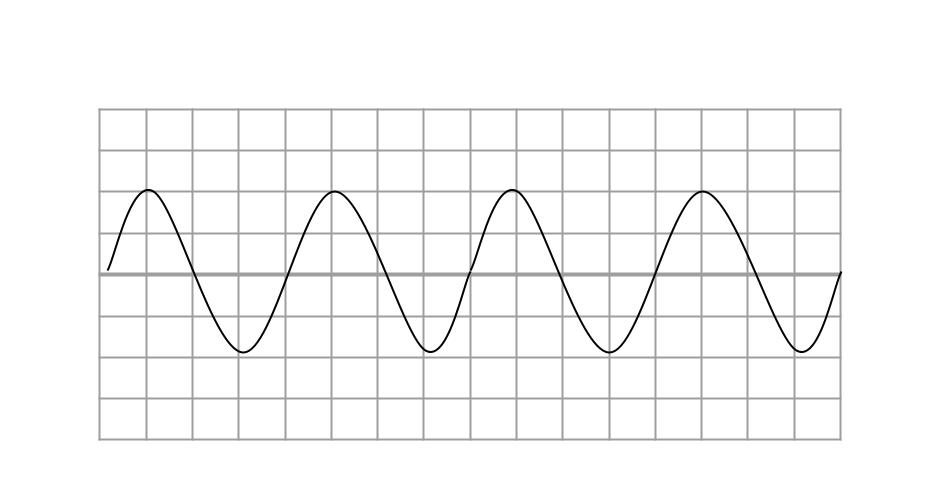

This is the frequency of this wave (the image is 1 second of the wave)
What is 4 Hz?
300

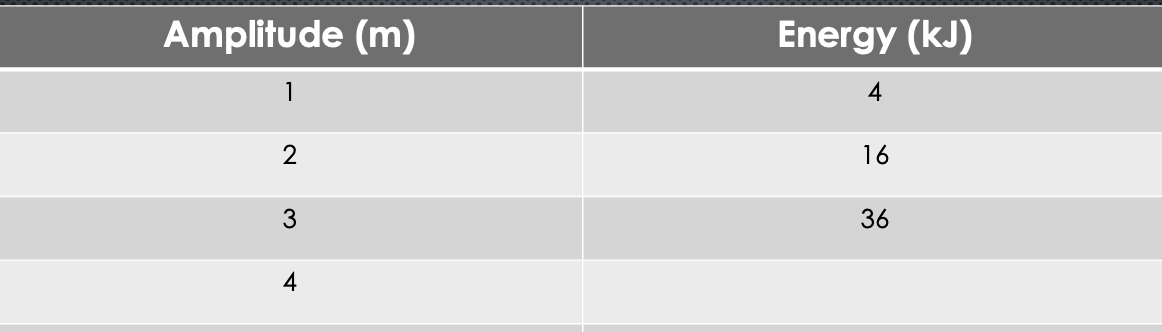

As amplitude doubles, energy quadruples. Find the missing energy number.
What is 64kJ?
300
This is the frequency of this wave.
What is 5Hz?
300
As amplitude goes decreases, wavelength _________ .
What is stays the same?
400
This is the distance from one point on a wave to the same point on the next wave (example: distance from crest to crest)
What is wavelength?
400

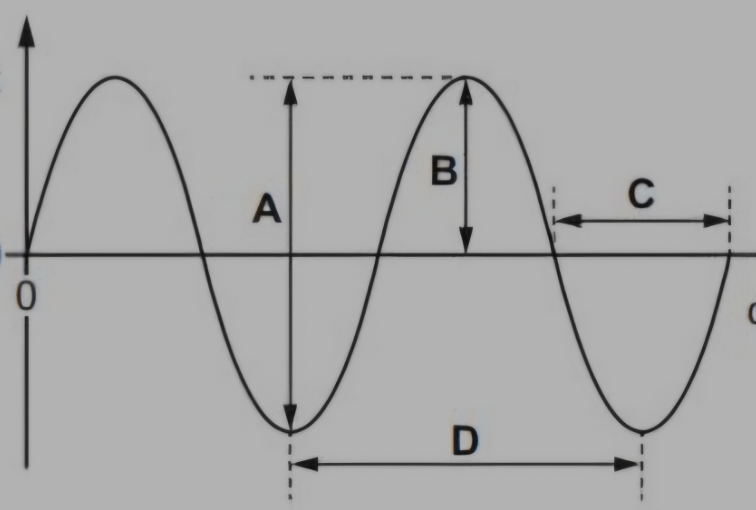

This letter measures the amplitude.
What is B?
400
A sound with a high, squeaky pitch would most likely have a (high/low) frequency.
What is high frequency?
400
Name the wave with the lower pitch and explain how you know.
What is Sound B because it has a lower frequency?
400
As wavelength decreases, frequency ________ .
What is increases?
500
This is the word that describes how many waves pass a point in a cycle.
What is frequency?
500
This is the unit that is used to measure frequency.
What is Hertz or Hz?
500
As the frequency of a wave decreases, the wavelength __________.
What is increases?
500

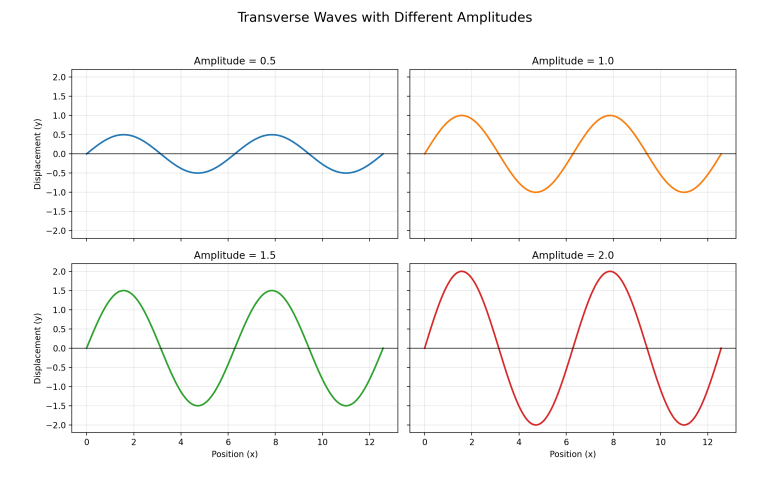

Which color of wave would have the quietest sound?
What is the blue wave?
500
This is what a wave moves.
What is energy?
