Reference Table
Kinematics/Projectiles
Forces and Inclines
Circular Motion and Gravity
Rotational Motion
100
What is the universal gravitational constant? (With units)
6.67 x 10^-11 Nm^2/kg^2
100
A car accelerates uniformly from 5 m/s East to 12 m/s East. What is the average velocity of the car?
8.5 m/s East
100
Two cars crash into each other. Car A is a sedan with a mass of 1000 kg. Car B is an SUV and has a mass of 1800 kg. When the crash occurs, Car A exerts a force of magnitude "F" on Car B. What is the magnitude of the force that Car B exerts on car A?
"F"
100
Draw a diagram for an object moving counter-clockwise around a circle. Draw an arrow to show the speed and centripetal force at a specific point on its path.
100
What direction is positive in rotational kinematics?
Counter - Clockwise
200
What does "k" represent?
Spring Constant OR Electrostatic Constant
200
A 0.05 kg marble rolling at 8 m/s rolls off a level table that is 0.6 m tall. At the same time a second marble with twice the mass is dropped from the same height. Considering the relative speeds of both marbles, which marble reaches the ground first?
Same Time
200

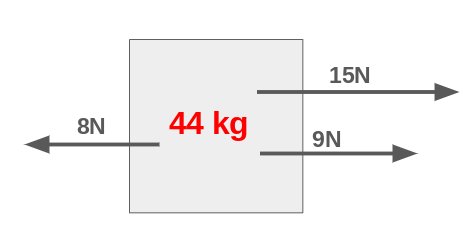

What is the acceleration of the box in the free body diagram?
0.36 m/s^2 right
200
The centripetal acceleration of an object is 5 m/s^2. What would the new centripetal acceleration be if the speed of the car was 6 times faster?
180 m/s^2
200

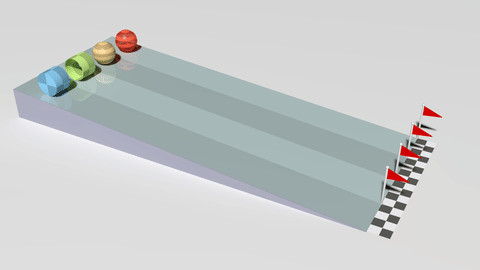

Why does the green hoop lose the race?
No mass at its center = Large Rotational Inertia
300
n =
c/v
300
A car accelerates uniformly from 5 m/s East to 12 m/s West. It had an acceleration of 0.5 m/s^2 West. What is the magnitude and direction of the car's displacement?
119 m West
300

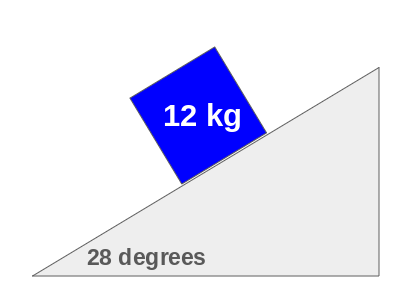

What is the magnitude of the normal force acting on this block?
64.2 N
300
The magnitude of the gravitational force acting between two planets is "F". What would the new magnitude be if the mass of one planet was 5 times larger, the second planet was twice as massive, and the distance between the planets is reduced by a factor of 3?
90F
300
A wheel of a truck is rolling with an angular speed of 116 rad/s. The wheel has a radius of 0.3 m. What is the transnational speed of the truck tire?
34.8 m/s
400
What is the equation for the change in thermal energy?
mcΔT
400
A truck driving at 23 m/s drives off a horizontal cliff for a movie. If the cliff is 30 m. How far from the base of cliff does the car land?
56.8 m
400
A 3kg ball is dropped on planet Y. The ball falls 90 m in 4.5s. How much does the ball weigh on planet Y?
26.7 N
400
A toy train completes one lap of a circular track in 20 seconds. If the speed of the train is 0.25 m/s, then what is the radius of the circular track?
0.8 m
400
How many rotations does a bike wheel turn if given the following information:
Initial Angular Velocity = 3 rad/s
Final Angular Velocity = 5 rad/s
Angular Acceleration = 0.02 rad/s^2
63.7 rotations
500
What is the frequency of a Bluetooth signal?
2.5 x 10^9 Hz
500
How high does a projectile go when it is launched at a velocity of 30 m/s and at an angle of 52 degrees?
28.5 m High
500

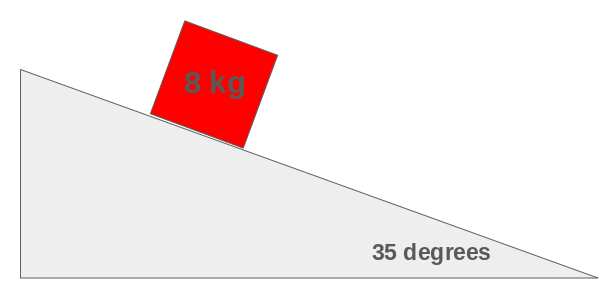

If there is 10N of friction slowing this block down, what is the acceleration of the block down the ramp?
4.8 m/s^2
500
Two asteroids are pulling toward each other with 4.5 x 10^6 N of force. If the asteroids have the same mass and are 620 m apart, then what is the mass of each asteroid?
1.61 x 10^11 kg
500
A basketball in gym rolls at a constant speed. The ball rolls 20m in 5 seconds. The ball has a radius of 0.11 m. What is the period of the ball's rotation?
0.173 seconds
