Electron Configurations
Periodic Trends
Bonding & Naming
Lewis Structures & Molecular Shapes
Valence Bond Theory & Hybridization
100

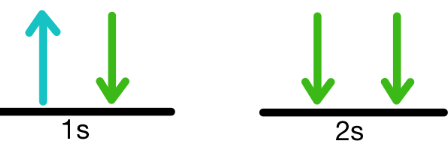

What principle does this violate?

Pauli exclusion principle

100

What is Zeff? What is the periodic trend?

Zeff (effective nuclear charge) is the net charge experienced by an outer electron after experiencing shielding from the inner electrons. The pull on outer electrons is weaker due to this shielding. Zeff increases from left to right across a period because the number of valence electron increases while inner electrons (shielding) stays the same. It decreases down a group because of increasing electron shields. The value of Zeff is approximately equal to the number of valence electrons.

100

Identify the following as ionic or covalent:

LiBr

SF6

CaF2

LiBr: ionic

SF6: covalent

CaF2: ionic

100

Draw the lewis structure for ICl3.


100

What is the electron geometry and molecular geometry of the following compound:

EG: octahedral

MG: square planar

200

What is the condensed electron configuration for the zinc ion?

[Ar] 3d10

The neutral atom of zinc has this electron configuration: [Ar] 4s2 3d10. Remember with transition metals, the electrons are pulled from the s subshell first, as that is the outermost orbital.

200

Nitrogen, Oxygen, and Fluorine are all in the same row of the periodic table. Knowing what you do about atomic radius, ionization energy, and electron affinity, rank these three elements in increasing order for the 3 different trends.

Atomic radius (decreases across a row): F < O < N (biggest)

Ionization energy (increases across a row): N < O < F (biggest)

Electron affinity (increases across a row): N < O < F (biggest)

200

Provide the formula for the following names:

sulfate

strontium chloride

diphosphorus pentoxide

Sulfate: SO32-

Strontium chloride: SrCl2

Diphosphorus pentoxide: P2O5

200

What is the octet rule? What are the exceptions?

The octet rule states that atoms want a full outer shell with 8 valence electrons to be most stable. The exceptions are electron deficiency (Boron), hydrogen (only has 2 electrons), an odd number of electrons, and an expanded shell (anything with a d subshell)

200

For each of the 5 ELECTRON geometry names we know, provide the hybridization orbitals.

linear: sp

trigonal planar: sp2

tetrahedral: sp3

trigonal bipyramidal: sp3d

octahedral: sp3d2

300

What is the full electron configuration for the oxygen ion? What is the charge on this ion?


1s22s22p6

Charge is -2.

O2-

300

Rank these in order of increasing size:

F+, F, F-

F+ (smallest) < F < F- (biggest)

Cations are smaller than their parent atom and anions are larger than the parent atom.

300

What is the charge of iron in the following compound, and how would you write the name of this compound:

Fe2O3

The charge is 3+. Oxygen has a likely charge of 2-, so it is contributing 6-. Iron needs to balance that out, and there are two iron atoms present. 6/2 = 3.

Iron (III) oxide

300

Draw the Lewis structure for SCN-, including any resonance structures. Identify which structure is best using formal charges.

Hint: the electronegativity of both S & N is 2.5.

There is no preferred structure, both 1 & 2 work. Since the electronegativity values are the same, the -1 formal charge can be on either. Structure 3 isn't ideal because 2 elements have a non-zero formal charge.


300

For the following compound, provide the electron geometry, molecular geometry, and hybridization around the central molecule.

EG: trigonal bypyramidal

MG: t-shaped

Hybridization: sp3d

400

Draw the full orbital diagram for gallium.


400

Calcium's 3rd ionization energy is much larger than it's first and second. Why?

Calcium has two valence electrons. Valence electrons are much easier to remove than core electrons, so these come off way easier. The third electron removed from calcium is a core electron, so the ionization energy is much larger.

400

What is the bond type in this compound? Is this compound polar?

EN values: F = 4.0, Br = 2.8

4.0 - 2.8 = 1.2

This is a polar covalent bond. This is polar because the lone pairs create t-shaped geometry and the polar bonds do not cancel out.

400

Why do bonds and lone pairs cause deviation from ideal bond angles?

Lone pairs repel the surrounding bonds / electron groups. They take up more space, so they push the other bonds closer together, and alter the ideal bond angle. Multiple bonds cause stronger repulsions than single bonds because they encompass more electrons.

400

Draw the lewis structure for CH4 and provide the electron geometry, molecular geometry, and hybridization of the central atom.

EG: tetrahedral

MG: tetrahedral (the same because there are no lone pairs)

Hybridization of C: sp3

500

Why do s orbitals fill before d orbitals? Provide the name of this law, and explain it in your own words.


This is due to the Aufbau principle, which states that electrons fill orbitals by energy level--so lower energy levels fill first. 4s has lower energy than 3d, 5s has lower energy than 4d, etc. so these s subshells are filled first.

500

Provide the likely charge for the ions of these elements:

Br, Sr, Na

What elements are these ions isoelectronic with?

Br- , isoelectronic with Kr

Sr2+, isoelectronic with Kr

Na+, isoelectronic with Ar

500

Draw the polarity arrow for this compound, based on your knowledge of electronegativity trends.

500

Is this compound polar?

Polar: asymmetric, there is a net dipole moment
500

What is the electron geometry, molecular geometry, and hybridization of the central atom in SF4? Draw the lewis structure!

EG: trigonal bipyramidal

MG: seesaw

Hybridization around S: sp3d
